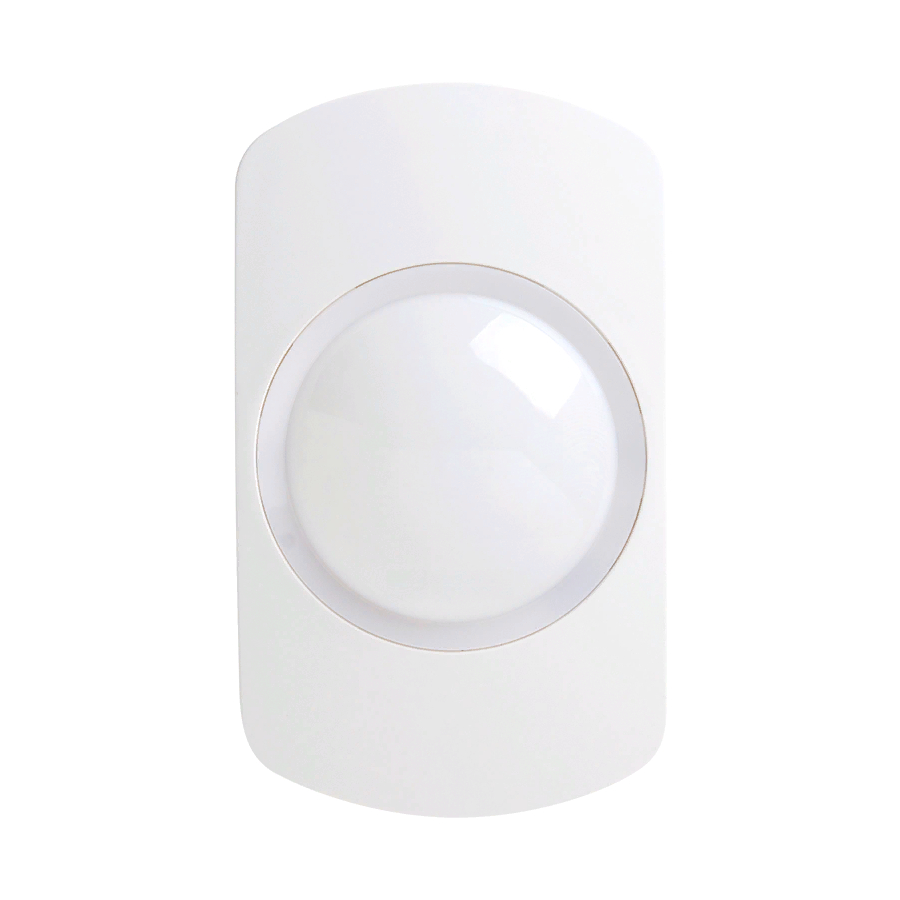

CAPTURE® A20 and CA G3 Motion
Detectors
INS881EN-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Capture A20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texecom Capture A20

Summary of Contents for Texecom Capture A20

  • Page 1 CAPTURE® A20 and CA G3 Motion Detectors INS881EN-2...
  • Page 2 05-10-2020 • Changes made ref PCR01383...

  • Page 3: Table Of Contents

    1.4 Mode selection ........................1.5 Closing the device ......................1.6 Testing, commissioning and LED indications ..............2.0 Variants ..........................2.1 CAPTURE A20 ........................2.2 CAPTURE CA ........................3.0 Accessories ..........................3.1 Branding ..........................3.2 Optional wall or ceiling mount brackets ................

  • Page 4: Opening The Device

    1.1 Opening the device The devices are supplied in the unlocked position. If locked. Use a flat bladed terminal driver and turn the locking mechanism ¼ turn anti-clockwise. Slide the front down and towards you to remove. For ceiling mount devices remove the facia by turning it anti- clockwise, and then unlock as above.
  • Page 5 INS881EN-2 5/55...
  • Page 6 Ceiling facia removal INS881EN-2 6/55...
  • Page 7 INS881EN-2 7/55...

  • Page 8: Quick Installation

    1.0 Quick Installation 1.2 Mounting and cable entry Location Ensure you have the correct device for the intended application, and that it is sited correctly in the desired location. The field of view should be free from obstacles and any potential false alert causes. Devices should be mounted on stable internal surfaces and are NOT suitable for use externally.
  • Page 9 Ensure the devices field of view is not obstructed INS881EN-2 9/55...
  • Page 10 Install on a flat stable surface only INS881EN-2 10/55...
  • Page 11 Ensure surrounding structures are stable INS881EN-2 11/55...
  • Page 12 For internal use only Screws & Fixings A minimum of 2 opposing fixing holes should be used to ensure maximum stability. When corner mounting care should be taken to ensure the chassis is not twisted, if the corner is uneven then two fixings on the same side would be acceptable. Where removal from mounting detection is required you must ensure that the tamper fixing is opposite to at least one of the corner or wall fixings.
  • Page 13 passes around the post as shown. This helps avoid cable snagging when refitting the front chassis. NOTE: Do not use the screw fixing points to route cable. Corner mount Wall, ceiling and flat surface mount INS881EN-2 13/55...
  • Page 14 Cable routing INS881EN-2 14/55...
  • Page 15 INS881EN-2 15/55...
  • Page 16 Terminal block tilting INS881EN-2 16/55...
  • Page 17 INS881EN-2 17/55...

  • Page 18: Wiring, Teol Selection And Powering Up

    1.3 Wiring, TEOL selection and powering up The device allows you to wire to control equipment in several different ways. To aid wiring and inspections of cable termination the terminal block can be tilted forwards or removed entirely. TEOL wiring is considered the most secure. The detector is designed to be connected to a single zone on control panels which feature Triple End-Of-Line compatibility.
  • Page 19 Terminal block INS881EN-2 19/55...
  • Page 20 INS881EN-2 20/55...
  • Page 21 INS881EN-2 21/55...
  • Page 22 There is a dedicated control type for this output on Texecom Premier panels, expanders and keypads for ease of installation. For more information on setting up an output to run this test please see the relevant manual.

  • Page 23: Mode Selection

    RLED terminal The RLED (Remote LED) terminal can be used to control the LED for walk testing from the panel. To use the RLED feature put switch 1 in the up position which will disable the LED. When an output is triggered 0V is applied to the RLED terminal which will enable the LED.
  • Page 24 LOW all models Low mode lowers the sensitivity of the device and provides greater false alarm immunity. Thorough walk testing across the entire protected area should be carried out to ensure catch performance is as expected. NOTE: Low mode is not EN G3 compliant INS881EN-2 24/55...
  • Page 25 A20 Detection pattern slider The creep zones can be removed from the detection pattern. Thorough walk testing across the entire protected area should be carried out to ensure catch performance is as expected. NOTE: Moving the slider to the UP position is not EN G3 compliant. G3 mode INS881EN-2 25/55...
  • Page 26 No creep zones INS881EN-2 26/55...
  • Page 27 CloakWise™ CloakWise is a proprietary detection algorithm, unique to Texecom, that can distinguish the presence of an intruder even if the unauthorised person attempts to mask or ‘cloak’ their presence. Utilising advanced signal processing techniques to both microwave and PIR channels, the CloakWise technology can recognise cloaking attempts and detect accordingly.
  • Page 28 CA Slider Leave in the default position INS881EN-2 28/55...
  • Page 29 Do not use INS881EN-2 29/55...

  • Page 30: Closing The Device

    1.5 Closing the device INS881EN-2 30/55...
  • Page 31 INS881EN-2 31/55...

  • Page 32: Testing, Commissioning And Led Indications

    1.6 Testing, commissioning and LED indications Following initial power the device will take 180s to calibrate the anti- masking function. There should be no obstructions or movement in the field of view of the device whilst this calibration takes place. When installation is complete, the device should be thoroughly walk tested to ensure the desired volumetric protection is being achieved, and any adjustments to the device are made to cater for the specific location and any local site...
  • Page 33 detection area. Power up the device (allow 180s with no activity in the protected area to allow for anti-mask calibration.) Walk test the device taking note of the LED indications. Adjust the Microwave range until the desired coverage is achieved. (you will need to calibrate the anti-mask as described previously if you remove power from the device to make adjustments.) A20 microwave coverage...
  • Page 34 CA microwave coverage INS881EN-2 34/55...

  • Page 35: Variants

    Resistance and voltage readings should be recorded at the time of installation. Voltage readings should be taken at the device Resistance reading should be taken at the CIE or ACE where the circuit is terminated 2.0 Variants 2.1 CAPTURE A20 INS881EN-2 35/55...
  • Page 36 INS881EN-2 36/55...
  • Page 37 G3 coverage INS881EN-2 37/55...
  • Page 38 INS881EN-2 38/55...
  • Page 39 Low mode coverage INS881EN-2 39/55...
  • Page 40 INS881EN-2 40/55...

  • Page 41: Capture Ca

    2.2 CAPTURE CA INS881EN-2 41/55...
  • Page 42 INS881EN-2 42/55...
  • Page 43 INS881EN-2 43/55...

  • Page 44: Accessories

    Microwave 3.0 Accessories 3.1 Branding Branding is available for wall mount devices from our website CLICK HERE consists of a printed insert and a clear cover which fits over the front of the device and holds the insert in place. Note: The cover should be removed before sliding the front of the device off...
  • Page 45 INS881EN-2 45/55...
  • Page 46 INS881EN-2 46/55...
  • Page 47 INS881EN-2 47/55...

  • Page 48: Optional Wall Or Ceiling Mount Brackets

    3.2 Optional wall or ceiling mount brackets Part Numbers Pack of 10 brackets AFU-0004 (not compliant with INCERT EN50131-2-2 and EN50131-2-4) Screws & Fixings To ensure maximum stability 2 screws should be used for either mounting option. Dependent on the mounting substrate, suitable fixings may be required. The size and type will depend on the choice of fixing screw.
  • Page 49 INS881EN-2 49/55...
  • Page 50 Wall mount installation INS881EN-2 50/55...
  • Page 51 INS881EN-2 51/55...
  • Page 52 INS881EN-2 52/55...

  • Page 53: Specifications

    4.0 Specifications Specifications A20,CA EN50131-2-4, EN50131-1, Alarm system PD6662:2017 Grade 3 Class II Product Type AKEA0000 (A20) AKHA0000 (CA Voltage 9-15Vdc Maximum current (measured A20 – 50mA at 12V) CA – 45.3mA Quiescent Current (measured A20 – 24mA at 12V CA –...

  • Page 54: Legal Information

    Test yearly by the installer 5.4 Warranty Lifetime warranty. As the CAPTURE A20, CA is not a complete alarm system, but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the CAPTURE A20, CA failed to function correctly.
  • Page 55 Hereby, Texecom declares that the equipment type : AKEA0000 (A20) AKHA0000 (CA), are in compliance with the Electro-magnetic Compatibility(EMC) Directive 2014/30/EU. The full EU declaration of conformity is available here: https://www.texe.com/cert/doc/...
