Quick programming instructions
TopClean M / TopClean M

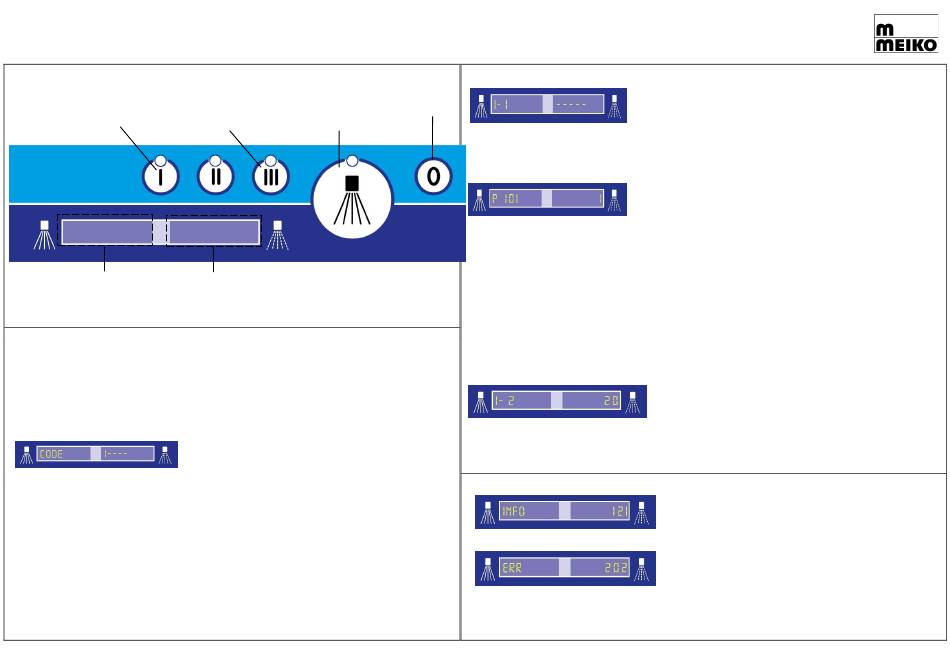

Using the keyboard for programming
Increase value /
Decrease value /
move forward
move backwards
Function field
General:
For control programming, the power supply must be available but the machine must
be completely switched off (no LED must be illuminated).
Code entry:
View service data: CODE 10000
To get into the code entry mode, you should keep
the "0" key pressed (for around 3 seconds) until
you see
pressing the key "0" once again you can leave the programming area at any time.
The digit to be modified will flash. Using the key "I" will increase the display unit
values, which will be accepted by using the "accept" key. You should select each of
the digits in this way one after the other, until the code has been completely entered.
If your entry is incorrect, you will leave the code entry procedure, and the information
code 122 will be displayed. If you enter all the digits correctly, you will arrive at the
service level.
You can move forwards using the "I" key, and backwards using the "III" key.
M2
Accept /
Modify
Value field
Modify service data: CODE 10001
Code 1---- on the display unit. By
The following main positions are available on the service level:
Exit
View parameters:
1-1 ----- Accept the position using the "accept" key and use the "I" or "III" keys to select
Modify parameters:
1-1----- Choice of parameters as when viewing, but access is via code for "modify
service data".
To modify one of the parameters, select it by using the "accept" hey – the value will
flash.
Select the value by using the "I" key or the "III" key, and save using the "accept" key.
You can leave the current level and go back to the previous level by using the "0" key.
Ventilate rinse aid inlet
Ventilate detergent inlet
Select the position you require. The selected dosing pump will be energized and the
Information/ error display:
K-PROG_TopClean M_M2_9715244_EN_2013-04.docx
1-1 ----- Parameter sichten / ändern
1-2 ----- Ventilate rinse aid inlet
1-3 ----- Ventilate detergent inlet
1-5 ---- Reset display for partial demineralisation
the parameters. On the left, the parameter Pxxx will be
displayed, and on the right, the value belonging to it. You
can use the "0" key to go back one level.
1-2 -----
1-3 -----(is not existing with depression dosing ADT)
remaining running time will be displayed.
Exit the ventilation programme by using the "exit"
key.
If you receive an information message, you must
follow the instructions. The rinse operation will still
be possible.
If you receive an error message, no further rinse
operation is usually possible. Notify customer
service.
