Meiko FV 40.2 Owner's Installation, Operation And Maintenance Manual

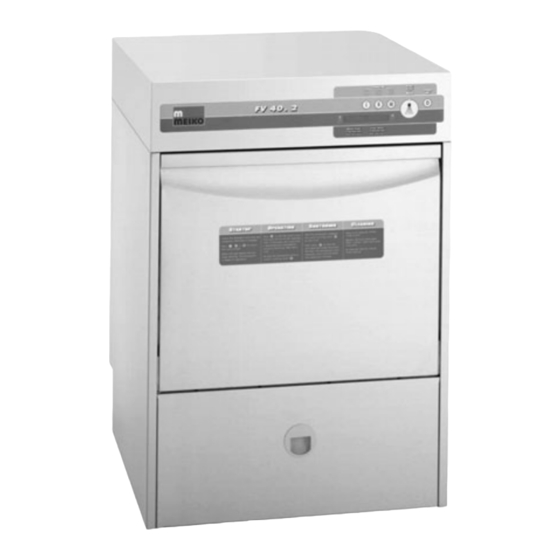

Undercounter high temperature sanitizing dishwasher
Hide thumbs Also See for FV 40.2:
Table of Contents

Advertisement

Quick Links

M
FV 40.2
ODEL
Undercounter High Temperature Sanitizing Dishwasher
(USA Version)
O
'
I
, O
WNER
S
NSTALLATION
PERATION AND
M
M
AINTENANCE
ANUAL
Meiko • 917 Airpark Center Drive • Nashville, TN 37217 • Phone: (615) 399-6600 • (800) 55-MEIKO • Fax: (615) 399-6620
Rev. 12/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV 40.2 and is the answer not in the manual?

Questions and answers

Related Manuals for Meiko FV 40.2

Summary of Contents for Meiko FV 40.2

  • Page 1 FV 40.2 ODEL Undercounter High Temperature Sanitizing Dishwasher (USA Version) ’ WNER NSTALLATION PERATION AND AINTENANCE ANUAL Meiko • 917 Airpark Center Drive • Nashville, TN 37217 • Phone: (615) 399-6600 • (800) 55-MEIKO • Fax: (615) 399-6620 Rev. 12/06...

  • Page 2: Table Of Contents

    ANY MODIFICATIONS TO THE APPLIANCE THAT ARE PERFORMED WITHOUT THE WRITTEN PERMISSION OF MEIKO WILL IMMEDIATELY VOID THE MANUFACTURER’S WARRANTY. Meiko reserves the right to change any specifications without notice at any time. Meiko • 917 Airpark Center Drive • Nashville, TN 37217 Phone: (615) 399-6600 •...

  • Page 3: Introduction

    1.1 Overview of Equipment throughout this manual to indicate possible haz- ards to persons or to the equipment. The sym- The Meiko Model FV 40.2 is a commercial bols and headings are shown in order of impor- dishwasher designed for cleaning dishes, tance.

  • Page 4: Installation

    It is possible to compensate for The appliance’s warranty is not valid until a uneven flooring by adjusting the feet. Meiko Authorized Service Agent performs a The area should be away from Startup and Demonstration on the appliance. appliances, furniture or surfaces that This Demonstration should be scheduled after can be damaged by steam.

  • Page 5: Uncrating, Positioning And Leveling

    Section 2, “Transport and Shipping.” If damage is present, call Meiko Customer Service at 1-800-868-3840, providing full details on the customer, serial number and extent of damage present. Meiko will file a freight claim based on this information. 3 screws on bottom edge 3.

  • Page 6: Main Electrical Supply Connection

    Strain relief Fresh water 3.6 Dispensing system overview for incoming connection electrical The FV 40.2 is designed for use with liquid supply detergent and liquid rinse additive. The unit Drain hose is not compatible with solid detergents and/or rinse additives.

  • Page 7: Installing External Chemical Pumps

    3 - I ECTION NSTALLATION Figure 3-5: Sealing unused chemical tubes (if not using a liquid detergent or rinse additive) tubing Seal with plug and wire clamp 3.7 Installing External Chemical Pumps (if so equipped) IMPORTANT 4. Connect the wires as shown in Figure Some local codes dictate that electrical 3-6.

  • Page 8: Connecting Chemical Containers Or Dispensers

    Meiko STRONGLY RECOM- MENDS the use of a sealing compound 3. If the dishwasher is equipped with factory on these connections to prevent leakage.

  • Page 9: Fresh Water Supply Connection

    (with a reducing valve). 2. Check the type of drain that will be used. 3. Check the incoming water temperature. Because the FV 40.2 uses a pumped drain, Meiko recommends a water temperature either a floor or wall drain is acceptable.

  • Page 10: Final Assembly

    6. Press the key to start priming the liquid SETTINGS ARE TO BE PERFORMED detergent lines. A timer will count down ONLY BY A MEIKO AUTHORIZED SERVICE AGENT. CHANGES BY the time remaining. By default, the system UNAUTHORIZED PERSONNEL WILL will prime for 30 seconds.

  • Page 11: Operation

    4 - O ECTION PERATION PERATION 4.1 Location and Description of Controls The dishwasher controls are on the keypad directly above the door. See Figure 4-1. Figure 4-1: Dishwasher controls SELECT SELECT SELECT NORMAL EXTENDED HEAVY CYCLE CYCLE CYCLE MIN. 150°F/66°C MIN.

  • Page 12: Startup

    4 - O ECTION PERATION 4.2 Startup 4.3 Loading The loading guidelines shown here will lead Check the level of the external detergent and to faster, more efficient cleaning of your ware. rinse additive dispensers. If necessary, replace or refill the dispensers. Load plates, soup bowls, etc.

  • Page 13: Operation

    Remove any food particles, scraps or bones from the scrap WARNING! screen. Meiko recommends that the door of Use caution when handling hot the dishwasher be left open overnight to allow dishware.

  • Page 14: Cleaning

    Active Plus filter. the Active Plus filter. See Figure 5-1. 5. Meiko recommends that the door of the The upper and lower arms are identi- dishwasher be left open overnight to allow cal and interchangeable.

  • Page 15: Exterior Cleaning (As Required)

    Lime scale deposits will occur over time on the interior of the dishwasher if it is operated WARNING! using a hard water supply. Meiko recommends Ensure that ALL residue of the deliming a hardness of 4 grains per U.S. gallon (7 DH agent is removed.

  • Page 16: Troubleshooting

    “kinks” or pinching. Also check that the water supply is turned on. Meiko Authorized Service Agent You should contact your • The dishwasher encounters a problem but does not display an error code, OR •...
  • Page 17 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 18 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 19 Notes ________________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
  • Page 20 If you need service... Meiko warewashers are designed for solid reliability as much as for outstanding ware-cleaning ability. With proper care, your warewasher should provide years of trouble-free operation. If service is necessary, contact your local Meiko Authorized Service Agent. With factory training, OEM parts and direct support from the factory, Meiko’s nationwide service network is highly qualified to quickly...
