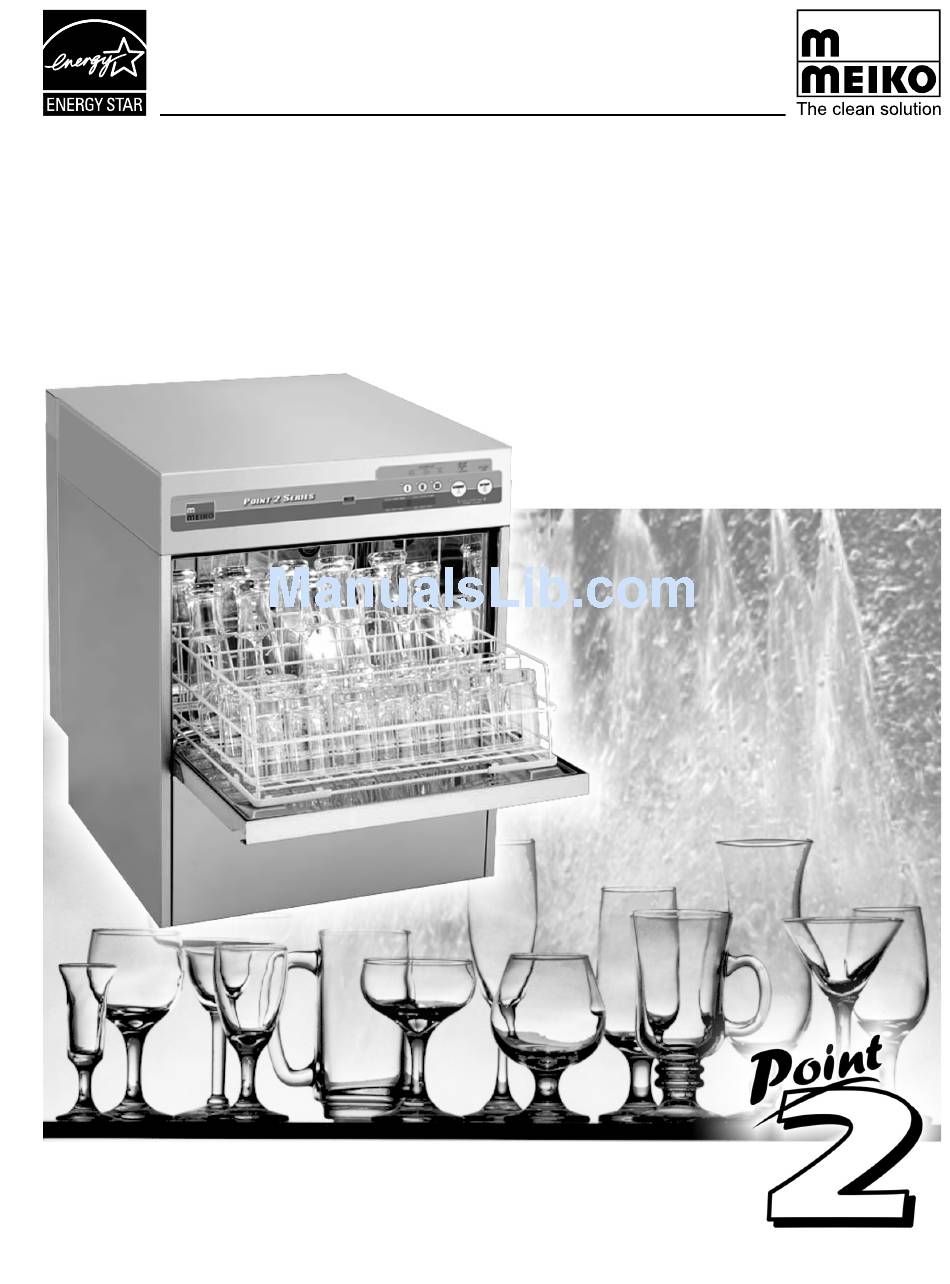

Meiko FV 40.2 G Owner's Installation, Operation And Maintenance Manual

Undercounter high temperature sanitizing glasswasher
Hide thumbs Also See for FV 40.2 G:
Table of Contents

Advertisement

Quick Links

M
FV 40.2 G
ODEL
Undercounter High Temperature Sanitizing Glasswasher
(USA Version)
O
'
I
, O
WNER
S
NSTALLATION
PERATION AND
M
M
AINTENANCE
ANUAL
MEIKO • 1349 Heil Quaker Blvd. • La Vergne, TN 37086 • Phone: (615) 399-6600 • (800) 55-MEIKO • Fax: (615) 399-6620
Rev. 9/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV 40.2 G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meiko FV 40.2 G

Summary of Contents for Meiko FV 40.2 G

  • Page 1 FV 40.2 G ODEL Undercounter High Temperature Sanitizing Glasswasher (USA Version) ’ WNER NSTALLATION PERATION AND AINTENANCE ANUAL MEIKO • 1349 Heil Quaker Blvd. • La Vergne, TN 37086 • Phone: (615) 399-6600 • (800) 55-MEIKO • Fax: (615) 399-6620 Rev. 9/10...

  • Page 2: Table Of Contents

    ANY MODIFICATIONS TO THE APPLIANCE THAT ARE PERFORMED WITHOUT THE WRITTEN PERMISSION OF MEIKO WILL IMMEDIATELY VOID THE MANUFACTURER’S WARRANTY. MEIKO reserves the right to change any specifications without notice at any time. © 2010 MEIKO USA, Inc. All rights reserved.

  • Page 3: Introduction

    1.1 Overview of Equipment throughout this manual to indicate possible haz- ards to persons or to the equipment. The sym- The MEIKO Model FV 40.2 G is a commercial bols and headings are shown in order of impor- glasswasher designed for cleaning glassware, tance.

  • Page 4: Installation

    • Installing the chemical dispensing system. Authorized personnel should be available Model FV 40.2 G is equipped with factory detergent and rinse aid pumps, with supply to perform the actual utility connections. tubes at the rear of the machine. These tubes must be connected to appropriate liquid chemical dispensers.

  • Page 5: Uncrating, Positioning And Leveling

    Section 2, “Transport and Shipping.” If damage is present, call MEIKO Customer Service at 1-800-868-3840, providing full details on the customer, serial number and extent of damage present. MEIKO will file a freight claim based on this information. 3 screws on bottom edge 3.

  • Page 6: Main Electrical Supply Connection

    L1, L2, L3 = “hot” (line) 3.6 Dispensing system overview yel/grn = ground yel/grn = ground The FV 40.2 G is designed for use with liquid detergent and liquid rinse additive. The unit is not compatible with solid detergents and/or rinse additives.

  • Page 7: Connecting Chemical Containers Or Dispensers

    3. Two strainer assemblies for the chemical fasten the chemical supply tubes containers are included with the machine. securely. MEIKO STRONGLY RECOM- See Figure 3-7. These strainers may be MENDS the use of a sealing compound on assembled onto the lids for the detergent these connections to prevent leakage.

  • Page 8: Fresh Water Supply Connection

    (with a booster pump) or to reduce the pressure (with a reducing valve). 2. Check the type of drain that will be used. Because the FV 40.2 G uses a pumped drain, 3. Check the incoming water temperature. either a floor or wall drain is acceptable.

  • Page 9: Final Assembly

    SETTINGS ARE TO BE PERFORMED 6. Press the START/DRAIN ( )key to start ONLY BY A MEIKO AUTHORIZED priming the liquid detergent lines. A timer SERVICE AGENT. CHANGES BY will count down the time remaining. By UNAUTHORIZED PERSONNEL WILL default, the system will prime for 30 VOID YOUR WARRANTY.
