3 - Mechanical Integration
3.4
Panel Cutout
The device is designed to be integrated into a solution design that includes an enclosure to secure the
device and protect it from the elements. This section provides guidelines for creating a cutout in the
enclosure's front panel that accommodates the device.
Overall guidance for enclosure design:
•
The enclosure panel must be flat and rigid to produce a solid seal with the preinstalled gasket and to
provide security against tampering.
•
The solution's enclosure must include a cutout that is sized to expose the device's bezel.
•
The enclosure must protect the device from unauthorized tampering.
•
The enclosure must protect the device from the elements.
Reference dimensions for the cutout in the solution enclosure, including the location of all screw holes or
threaded studs, are shown in Figure 3-4.

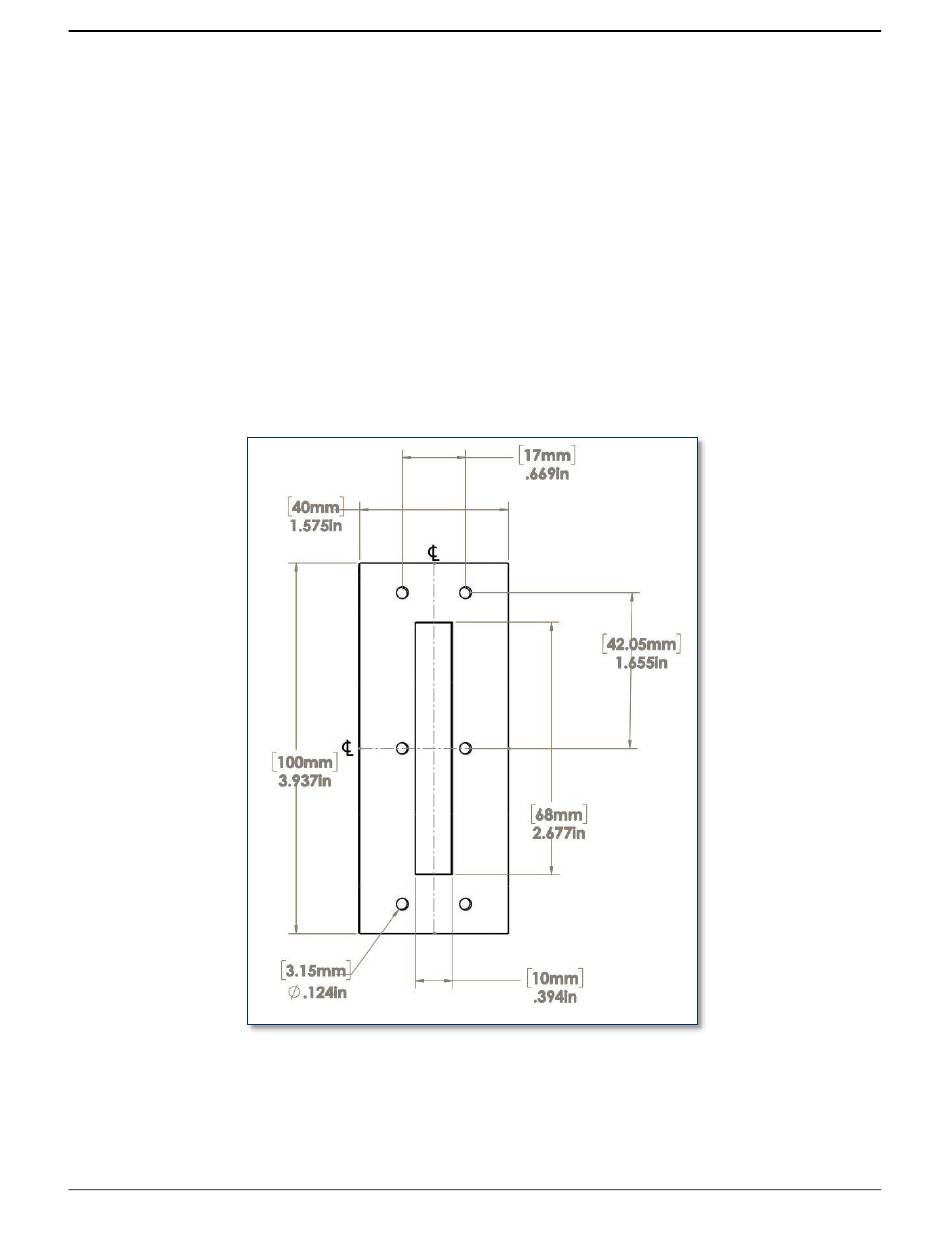

Figure 3-4 - mDynamo Weatherized Panel Cutout Dimensions in [mm] inches.
mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual
Page 15 of 27 (D998200657-100)
