Magtek Mini MICR Installing And Using

One Blue Hill Plaza, 16

Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

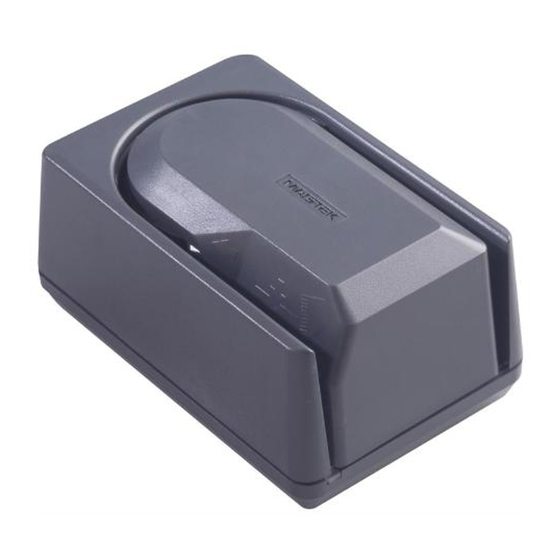

Installing and Using the Magtek

MICR Mini Check Reader

Cash Register Express or Restaurant Pro Express is now compatible with the Magtek MICR Mini

Check Reader. This document details how to connect all the hardware and install the necessary

drivers.

1 |

P a g e

Table of Contents

Need help?

Do you have a question about the Mini MICR and is the answer not in the manual?

Page 1 Installing and Using the Magtek MICR Mini Check Reader Cash Register Express or Restaurant Pro Express is now compatible with the Magtek MICR Mini Check Reader. This document details how to connect all the hardware and install the necessary drivers.
Page 2 Installing the MAGTEK Check Reader Drivers To process Check transactions the Magtek Check Reader (P/N: 22523009) must be installed. The Driver for this device can be downloaded from:  http://download2.pcamerica.com/drivers/Manufacturer/MAGTEK/MAGTEK_Mini_MI CR.zip Note: The above file contains drivers for both 32 and 64 bit operating systems.
Page 3 Connecting the Magtek Check Reader 1. In order to connect the device you will need the following cables:  The USB cable (P/N:22517583 REV.B).  The Power cable (MODEL NO.: AA-121A). P a g e...
Page 4 2. Connect the round end of the USB cable to the port on the check reader, connect the other end of that cable to an available USB port on your computer. 3. Connect the Power cable to the check reader and then the other end of that cable to a power outlet.
Page 5 Testing the Magtek Check Reader Open Notepad.exe and swipe the check through the reader as pictured below: The MICR should be facing inward and on the bottom of the page. P a g e...
