Summary of Contents for Magtek mDynamo Weatherized

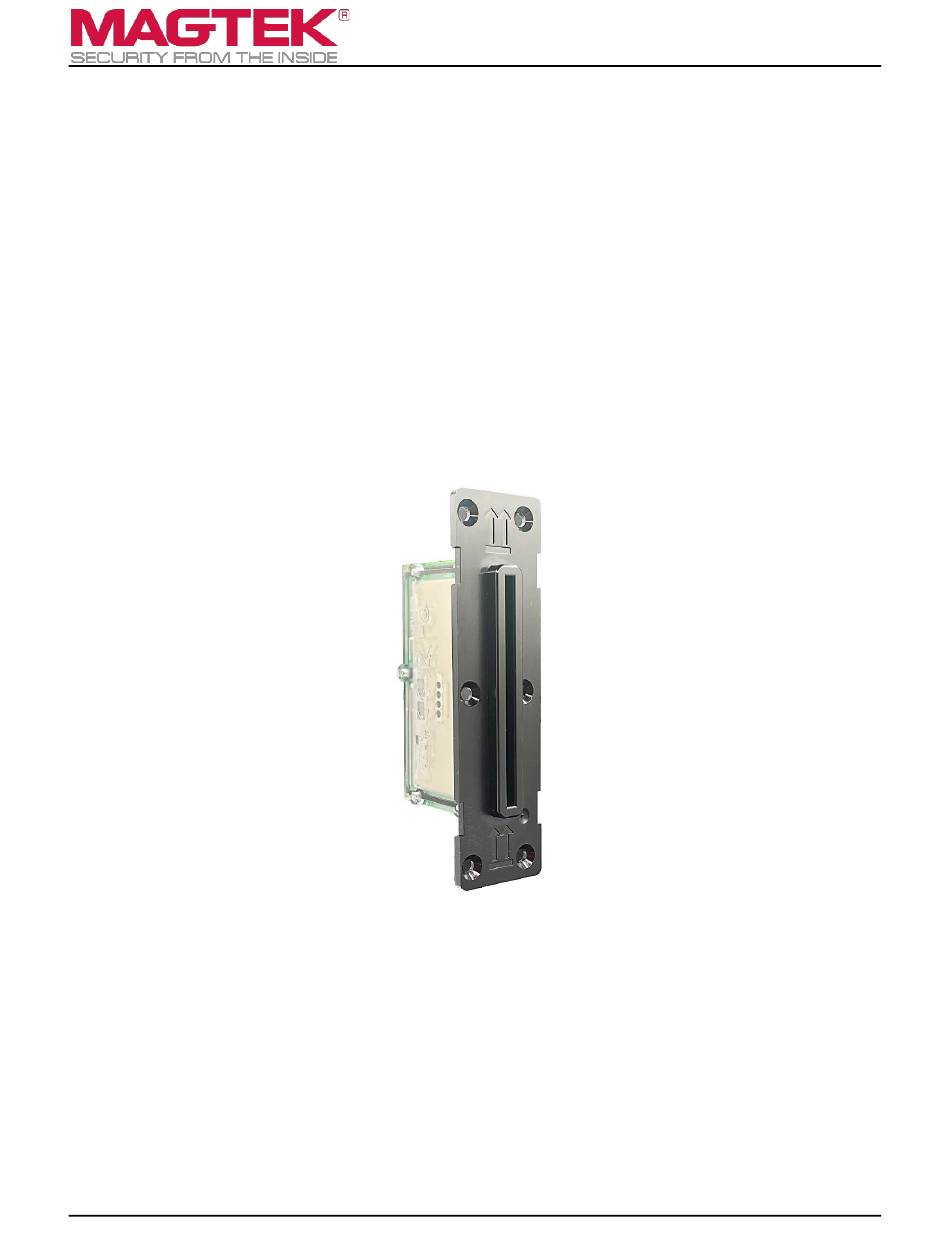

- Page 1 Weatherized Insert Secure Card Reader Authenticator Installation and Operation Manual May 2024 Document Number: D998200657-100 REGISTERED TO ISO 9001:2015 MagTek I 1710 Apollo Court I Seal Beach, CA 90740 I Phone: (562) 546-6400 I Technical Support: (562) 546-6800 www.magtek.com...
- Page 2 Microsoft®, Windows®, and .NET® are registered trademarks of Microsoft Corporation. All other system names and product names are the property of their respective owners. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 2 of 27 (D998200657-100)
- Page 3 Table 0-1 - Revisions Rev Number Date Notes May 15, 2024 Initial Release mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 3 of 27 (D998200657-100)
-
Page 4: Table Of Contents
Warranty, Standards, and Certifications ................25 Limited Warranty ............................25 FCC Information .............................. 27 CE STANDARDS ............................... 27 UL/CSA/CUR/UR ............................. 27 RoHS STATEMENT ............................27 mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 4 of 27 (D998200657-100) -
Page 5: Introduction
Weatherized Insert Secure Card Reader Authenticators are assembled using the mDynamo EMV Contact Reader platform. This platform includes a Micro USB connector, an RS-232 port as an alternative to USB, and an auxiliary SPI port (refer to Figure 1-2 - mDynamo Weatherized Major Components (Back View). -
Page 6: Mdynamo Weatherized Major Components
1 - Introduction mDynamo Weatherized Major Components Figure 1-1 - mDynamo Weatherized Major Components (Front View) mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 6 of 27 (D998200657-100) -
Page 7: Terminology
Figure 1-2 - mDynamo Weatherized Major Components (Back View) Terminology In this document, mDynamo Weatherized is referred to as the device. It is designed to be connected to a host, which is a piece of general-purpose electronic equipment which can send commands and data to, and receive data from, the device. -
Page 8: Handling
• Determine how mDynamo Weatherized should be configured, and specify that when you order devices. MagTek or your reseller can advise. For deep detail about configuration options and how they affect device behavior, see D998200151 mDynamo Programmer’s Manual (COMMANDS). •... - Page 9 Avoid touching the exposed pins on the connectors when handling the device. For information about ongoing maintenance of the device, such as cleaning, see section 5 Maintenance. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 9 of 27 (D998200657-100)
-
Page 10: Electrical Integration
500mA at 5V from the USB port, and the solution design must ensure 500mA is available to the device at all times. The mDynamo controller board in mDynamo Weatherized draws a maximum of 300mA, and draws additional current to drive devices connected to the RS-232 port and the Auxiliary SPI port. -
Page 11: Shielding And Conditioning
LED). However, custom software on the host may override the External LED behavior. Shielding and Conditioning MagTek recommends using shielded cables to provide noise immunity and to prevent radiated emissions. The device itself has been tested by an FCC lab for Class B radiated susceptibility and has no special shielding requirements. -
Page 12: Mechanical Integration
Weatherized. MagTek strongly recommends vetting and testing solution designs before finalizing and deploying them, to make sure the design meets all requirements (e.g., functional, legal, security, certification, safety, and so on). When designing the mechanical portions of a solution that incorporates mDynamo Weatherized, consider the following: •... -
Page 13: Dimensions
3 - Mechanical Integration Dimensions Overall dimensions of the device are shown in Figure 3-1. Upon request, MagTek can provide a 3D model of the device’s envelope to assist with the mechanical portion of solution design. MagTek strongly recommends building and testing prototypes with actual devices before finalizing the solution design. -
Page 14: Orientation
/ skimmers / tapping mechanisms, and their wires or antennas. Installation height and pitch are factors in meeting this requirement. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 14 of 27 (D998200657-100) -
Page 15: Panel Cutout
Reference dimensions for the cutout in the solution enclosure, including the location of all screw holes or threaded studs, are shown in Figure 3-4. Figure 3-4 - mDynamo Weatherized Panel Cutout Dimensions in [mm] inches. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 15 of 27 (D998200657-100) -
Page 16: Mounting
MagTek recommends using M3 screws torqued to 6 in-lb. (0.68 Nm). This may vary depending on the materials used to construct the solution enclosure. - Page 17 3 - Mechanical Integration Figure 3-6 - mDynamo Weatherized Mounting: Back View mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 17 of 27 (D998200657-100)
-
Page 18: Operation
Operation Inserting a Card mDynamo Weatherized is designed to be mounted in either a Vertical or Horizontal configuration as described in 3.3 Orientation. mDynamo’s chip card slot is unidirectional, embossed cards will not fit in the slot if inserted with the incorrect orientation. The following illustrations will demonstrate proper card insertion. -
Page 19: Card Reading / Transactions
The device is ready to read a card. An operator is updating the firmware. On Steady On completion, the device will reset, and the LED will turn off briefly. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 19 of 27 (D998200657-100) -
Page 20: Maintenance
Do not use chemicals or solvents. MagTek’s double-sided cleaning card 96700004 is designed to clean the contact pins inside all chip card contact readers. Keeping the contact pins clean is essential to the device’s functioning. MagTek recommends inserting a cleaning card at least once per week to avoid card misreads. -
Page 21: Developing Host Software
Support When developing host software, it is important to note that mDynamo Weatherized is a combination of two devices integrated into a common enclosure: • mDynamo Weatherized uses a primary control unit and chip card reader based on MagTek’s OEM solution platform, mDynamo. -
Page 22: Appendix A Technical Specifications
Certifications: Not Applicable Tamper Protection: Not Applicable Signed firmware. Any attempt to install unsigned firmware on the Code Protection: device renders it unusable. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 22 of 27 (D998200657-100) - Page 23 Storage Temperature: -22°F to 185°F (-30°C to 85°C) Storage Relative Humidity: 5% to 90% non-condensing Vibration Resistance: Not Applicable Shock Resistance: Not Applicable mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 23 of 27 (D998200657-100)
- Page 24 Not Applicable Reliability Shelf Life: Not Applicable ICC Read Head Life: 500,000 card insertions Battery Shelf Life: Not Applicable Battery Cycle Life: Not Applicable mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 24 of 27 (D998200657-100)
-
Page 25: Appendix B Warranty, Standards, And Certifications
MagTek’s published specifications. This warranty shall be provided only for a period of one year from the date of the shipment of the product from MagTek (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the original purchaser, unless that entity resells the product as authorized by MagTek, in which event this warranty shall apply only to the first repurchaser). - Page 26 CONTRACT PRICE FOR THE GOODS. MAGTEK’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE STATED IN THIS SECTION AND IN THE SECTION RELATING TO MAGTEK’S LIMITED WARRANTY. mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 26 of 27 (D998200657-100)
-
Page 27: Fcc Information
Reduction of Hazardous Substances (RoHS) European Directive 2002/95/EC. The marking is clearly recognizable, either as written words like “Pb-free,” “lead-free,” or as another clear symbol ( mDynamo Weatherized| Insert Secure Card Reader Authenticator | Installation and Operation Manual Page 27 of 27 (D998200657-100)
