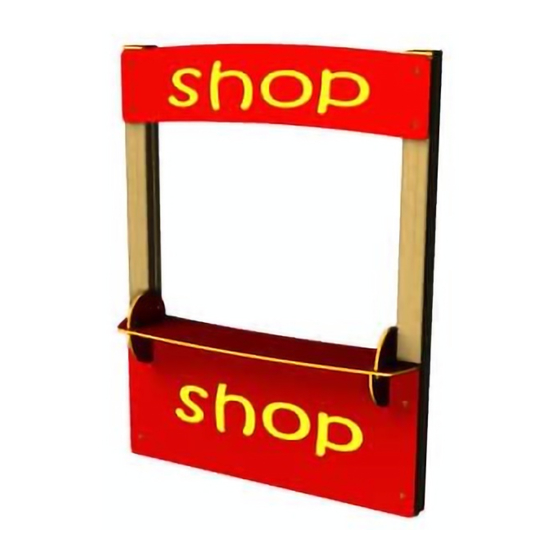

- Page 1 SHOP FRONT Installation Instructions REF: PB103 - SHOP FRONT pg 1 of 7...
-
Page 2: Parts Required
TABLE board x1 bottom side left x1 bottom side rigth x1 BOTTOM board QTY x 2 (90mm x 90mm) (80mm brass screws) REF: PB103 - SHOP FRONT pg 2 of 7... -
Page 3: Foundation Details
Foundation Details SOIL TIMBER SUPPORT POST CONCRETE REF: PB103 - SHOP FRONT pg 3 of 7... -
Page 4: Installation Instructions
Installation Instructions Attach the BOTTOM BOARD to the PB3 timbers Using ‘Brass Screws’ Attach the BOTTOM SIDE LEFT and RIGTH to the BOTTOM BOARD REF: PB103 - SHOP FRONT pg 4 of 7... - Page 5 Installation Instructions Attach the TABLE BOARD TO BOTTOM SIDE LEFT and RIGTH Attach the TOP SIDE LEFT and RIGTH to the TABLE BOARD AND PB3 Timbers Using ‘Brass Screws’ REF: PB103 - SHOP FRONT pg 5 of 7...
- Page 6 Installation Instructions Attach the TOP BOARD to the PB3 timbers Using ‘Brass Screws’ REF: PB103 - SHOP FRONT pg 6 of 7...
-
Page 7: Additional Dimensions
Additional Dimensions REF: PB103 - SHOP FRONT pg 7 of 7...
