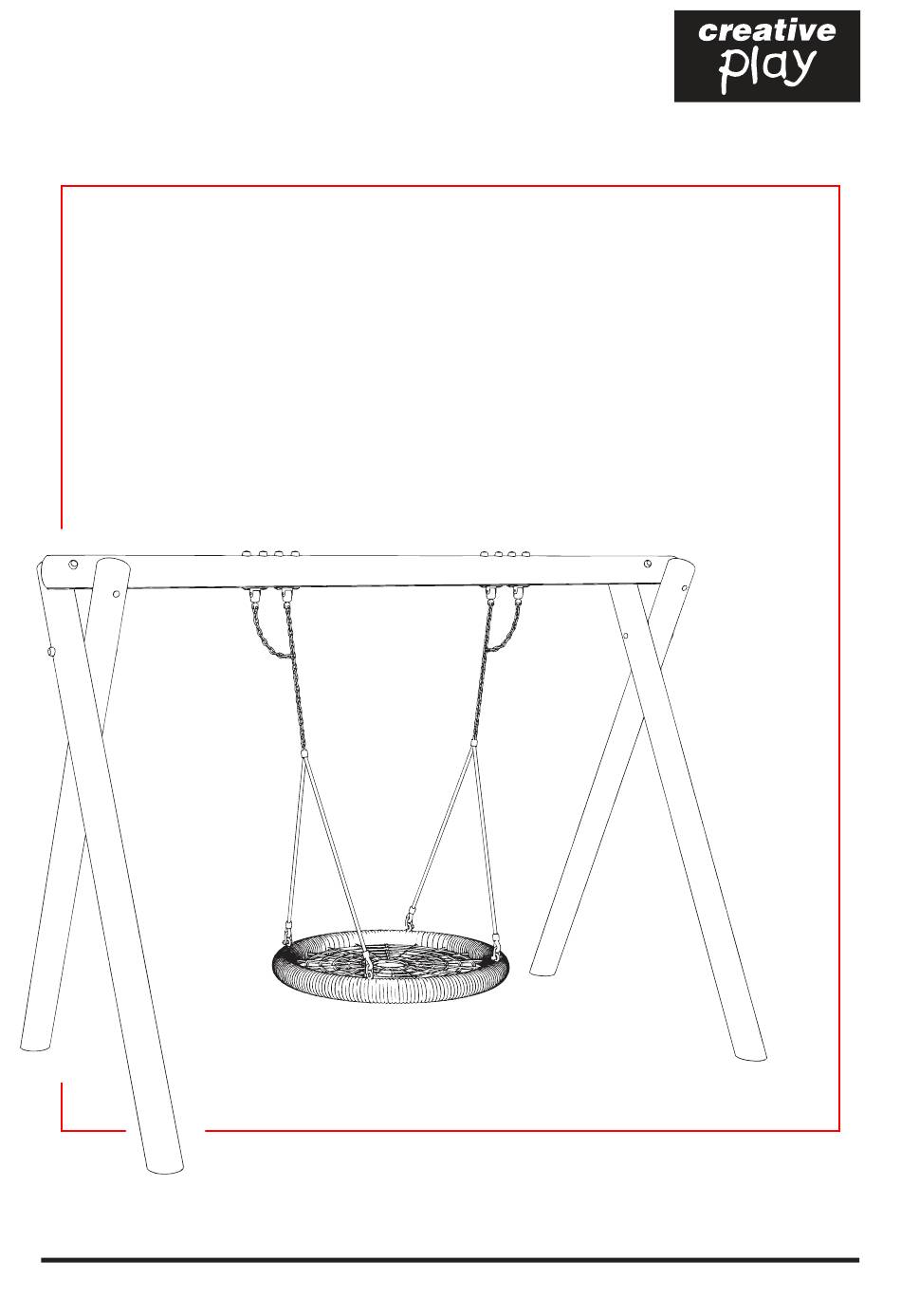

- Page 1 BASKET SWING ROUND Installation Instructions REF: S111-R - BASKET SWING ROUND pg 1 of 7...
- Page 2 PARTS required (M12 x 310 Square Cup HEX bolt) (end caps R60) (Quicklink) (M12 ‘NYLOC’) S101R1 (TOP LOG) (LEG LOG) (500mm CHAIN) (nut caps M8) (BASKET SEAT inc chain) TOOLS required REF: S111-R - BASKET SWING ROUND pg 2 of 7...
- Page 3 Foundation Details finished ground level Soil Timber support post Concrete REF: S111-R - BASKET SWING ROUND pg 3 of 7...
- Page 4 Surfacing Details = SYNTHETIC = LOOSE FILL REF: S111-R - BASKET SWING ROUND pg 4 of 7...
- Page 5 Using (6x 310mm) M12 - square cup bolt / 6x NYLOCS / 6x Covered end cap R60 OUTSIDE TIMBERS S101R1 S101R1 S101R1 S101R1 ENSURE: TIMBERS ARE ATTACHED AS SHOWED ABOVE REF: S111-R - BASKET SWING ROUND pg 5 of 7...
- Page 6 Installation Instructions Install Assembly Follow Fundation details Install BASKET SWING & SAFETY CHAIN Using Chain and Quicklink supplied LOCK TIGHT to ensure the quicklink remains CLOSED REF: S111-R - BASKET SWING ROUND pg 6 of 7...
- Page 7 Additional Dimensions Min 400mm - Max 600mm Recomended 400mm REF: S111-R - BASKET SWING ROUND pg 7 of 7...
