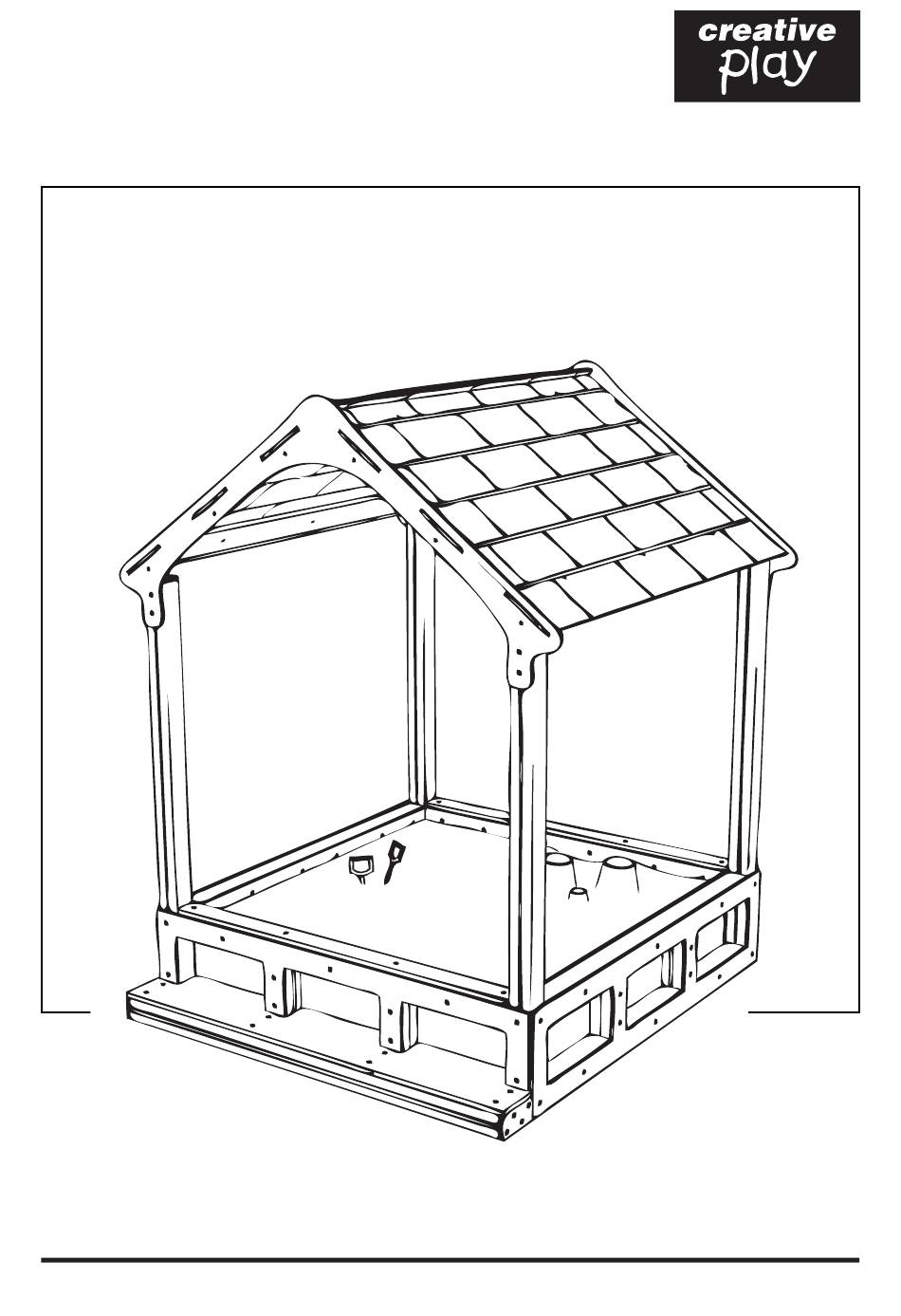

- Page 1 SANDHUT MAJOR Installation Instructions REF: SB103 - SANDHUT MAJOR pg 1 of 12...
-
Page 2: Parts Required
PARTS required PARTS required (PRE-ASSEMBLED SIDE A) (PRE-ASSEMBLED SIDE B) (PRE-ASSEMBLED SIDE C) (PLAYTEC PANEL - SIDE C) (HEX SLATS) (HEX STEP) REF: SB103 - SANDHUT MAJOR pg 2 of 12... - Page 3 PARTS required PARTS required (STEP PLAYTEC CAPS) (STEP TIMBERS - SB103b) (PRE-ASSEMBLED FLOOR) (HEX LID - 2 SIDES) (FM180 ‘ Brass screws’) (FM80 ‘ Brass screws’) REF: SB103 - SANDHUT MAJOR pg 3 of 12...
- Page 4 PARTS required ( SANDHUT MAJOR ROOF ) (SIDE ROOF ) (TOP ROOF CLIP) (BACK ROOF) (FRONT ROOF) (HEX ROOF SUPPORT) (ROOF CLIPS) x 21 (3B- TORKTAINER) (FM80 ‘ Brass screws’) (N1 - TORKTAINER) (N3 - TORKTAINER) REF: SB103 - SANDHUT MAJOR pg 4 of 12...
-
Page 5: Tools Required
TIMBERS required SB103a SB103a SB103a SB103a TOOLS required REF: SB103 - SANDHUT MAJOR pg 5 of 12... -
Page 6: Foundation Details
Foundation Details 1585 FINISHED GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE REF: SB103 - SANDHUT MAJOR pg 6 of 12... -
Page 7: Installation Instructions
Installation Instructions Installation Instructions Install the timbers SB103a Follow foundation details SB103a SB103a SB103a SB103a Attach SIDES A AND B to UPRIGHTS Using FM80 BRASS WOOD SCREWS SIDE B SIDE A SIDE A ENSURE: EACH SIDE IS FLUSH WITH FLOOR - NO GAPS ENSURE THAT THEY ARE ALL LEVEL WITH EACH OTHER ALSO REF: SB103 - SANDHUT MAJOR pg 7 of 12... - Page 8 Installation Instructions Installation Instructions Attach PLAYTEC PANEL to PRE-ASSEMBLED SIDE C and Attach TO UPRIGHTS - as step 2 Using FM80 BRASS WOOD SCREWS SIDE C INSERT PRE-ASSEMBLED FLOOR NO NEED TO FIX IN PLACE REF: SB103 - SANDHUT MAJOR pg 8 of 12...
- Page 9 Installation Instructions Installation Instructions ATTACH 1 x STEP TIMBER TO MAIN STRUCTURE Using FM180 BRASS WOOD SCREWS SCREW ON 2ND STEP TIMBER TO EXISTING and CAP EACH END Using FM180 BRASS WOOD SCREWS for the step and FM80 BRASS WOOD SCREWS for the caps REF: SB103 - SANDHUT MAJOR pg 9 of 12...
- Page 10 Installation Instructions Installation Instructions ATTACH HEX STEP PANEL ON TOP OF TIMBERS ENSURE YOU SECURE LEAVING NO GAP BETWEEN PLAYTEC SIDE AND HEX - Using FM80 BRASS WOOD SCREWS Attach HEX SLATS ON TOP OF SIDE B and C Using FM80 BRASS WOOD SCREWS TIP! LAY THE HEX LID ON TOP BEFORE SCREWING SLATS INTO PLACE TO...
- Page 11 Installation Instructions Attach the roof Parts (SANDHUT MAJOR ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: SB103 - SANDHUT MAJOR pg 11 of 12...
-
Page 12: Additional Dimensions
Additional Dimensions 1.86m 1.89m REF: SB103 - SANDHUT MAJOR pg 12 of 12...
