Summary of Contents for Creative Play LILLIPUT PLAYTOWN SIX L106

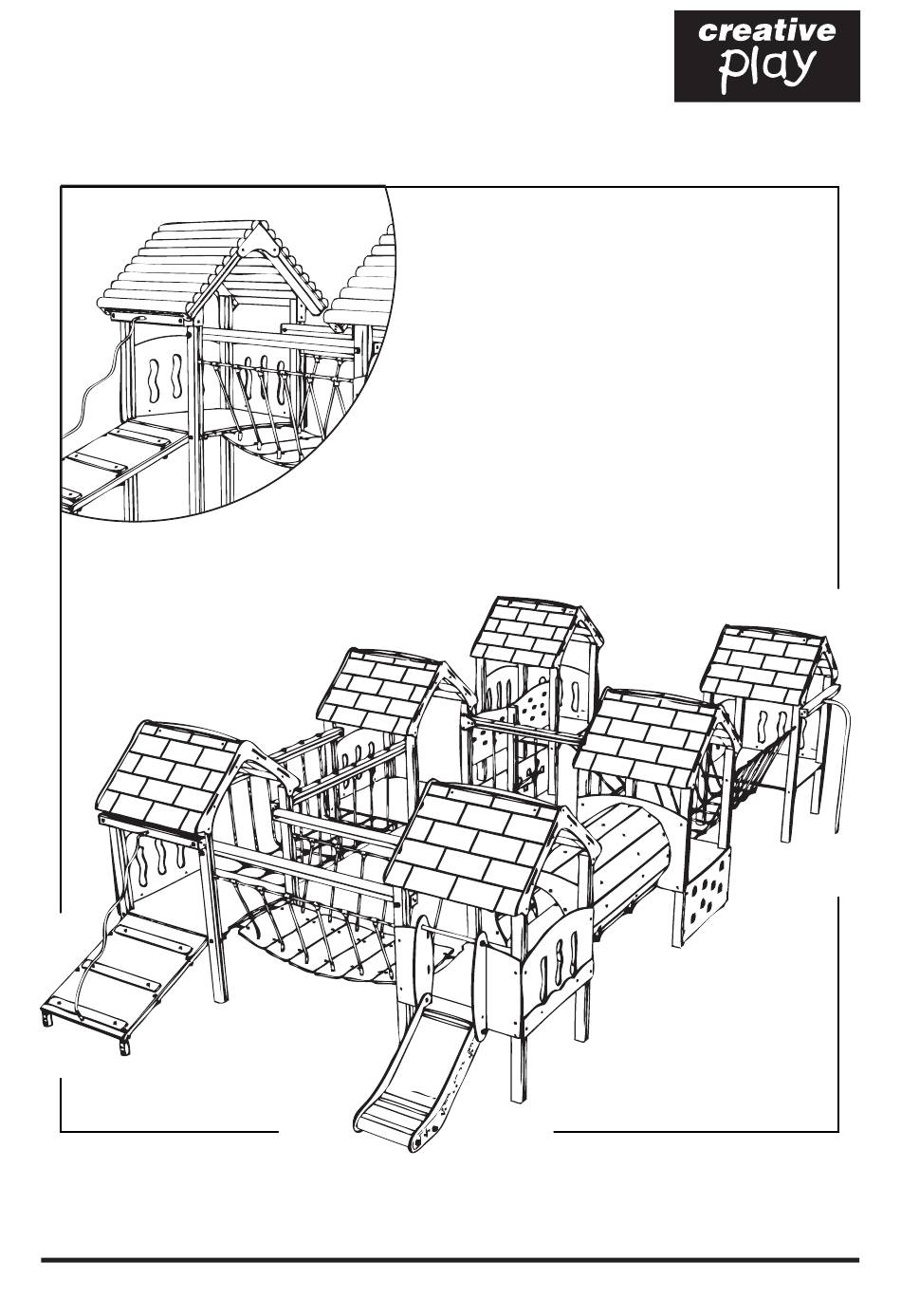

- Page 1 LILLIPUT PLAYTOWN SIX Installation Instructions REF: L106 - LILLIPUT PLAYTOWN SIX pg 1 of 27...
-
Page 2: Parts Required
PARTS required PARTS required (90 x 90 CLATTERBRIDGE FLOOR) (90 x 90 STANDARD FLOOR) (PRE-ASSEMBLED PANEL) (TOWERS STANDARD FLOOR 90x90) (LILLIPUT CLIMBING WALL) (RAMP METAL FRAME) (RAMP HEX) (RAMP PULL ROPE) LEFT (SLIDE SIDE) (SLIDE METAL FRAME) RIGHT (SLIDE SIDE) REF: L106 - LILLIPUT PLAYTOWN SIX pg 2 of 27... - Page 3 PARTS required PARTS required (SLIDE CLIPS) (0.6m SLIDE) (NET CLIMBER) (CLIMBER GROUND ANCHOR) (CLATTERBRIDGE) (NET TUNNEL) (ROPE WALK) (CLIMBING NET) REF: L106 - LILLIPUT PLAYTOWN SIX pg 3 of 27...
- Page 4 PARTS required PARTS required (TOP OF TRAVERSE) (BOTTOM OF TRAVERSE) (FIREFIGHTERS POLE AND BRACKET) (M12 x 200SQUARE CUP HEX BOLTS) (M12 x 150 SQUARE CUP HEX BOLTS) (M12 x 100 SQUARE CUP HEX BOLTS) (FM40‘ Brass screws’) (FM80‘ Brass screws’) (M12 x 75 SQUARE CUP HEX BOLTS) (M12 ´NYLOC´) (Covered Ends)
- Page 5 PARTS required (CRAWLING TUNNEL) PARTS required (CENTRAL HEX RINGS) (PLAYTEC TUNNEL ENTRANCES) (PLAYTEC SLAT) (HEX FLOOR) (FIRST/LAST PLAYTEC SLAT) (PLAYTEC CLIPS SET) REF: L106 - LILLIPUT PLAYTOWN SIX pg 5 of 27...
- Page 6 PARTS required (CRAWLING TUNNEL) PARTS required (40X40 BOX SECTION PRE-ASSEMBLED FLOOR) (30X30 BOX SECTION) (0B- TORKTAINER) (N1 - TORKTAINER) (Covered Ends) (M12 ´NYLOC´) (M12 x 100 SQUARE CUP HEX BOLTS) (FM80‘ Brass screws’) (M12 x 80 SQUARE CUP HEX BOLTS) (M12 x 75 SQUARE CUP HEX BOLTS) REF: L106 - LILLIPUT PLAYTOWN SIX pg 6 of 27...
- Page 7 PARTS required ( STANDARD ROOF ) (ROOF CLIPS) (SIDE ROOF ) (TOP ROOF CLIP) (3B- TORKTAINER) (N1 - TORKTAINER) (FM80 ‘ Brass screws’) (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) x120 (HALF ROUND TIM- x512 (FM80 ‘ Brass screws’) x12 LEFT (SIDES RUSTIC ROOF) x12 RIGHT...
-
Page 8: Tools Required
TIMBERS required L106b L106b L106b L106o L106b L106b L106b L106g L106q L106j L106i L106p L106g L106i L106m L106l L106g L106n L106k L106f L106b L106e L106j L106e L106b L106h L106a L106d TOOLS required REF: L106 - LILLIPUT PLAYTOWN SIX pg 8 of 27... -
Page 9: Foundation Details
Foundation Details TRAVERSE WALL ROPE WALK CLIMBING NET NET TUNNEL CRAWLING TUBE RAMP SLIDE FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil REF: L106 - LILLIPUT PLAYTOWN SIX pg 9 of 27... -
Page 10: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA 7.65m REF: L106 - LILLIPUT PLAYTOWN SIX pg 10 of 27... -
Page 11: Installation Instructions
Installation Instructions Install timber UPRIGHTS L107a-h Follow fundation details L106b L106b L106b L106l L106b L106a L106j L106k NET CLIMBER TOWER TRAVERSE WALL ROPE WALK L106b L106m L106g L106g L106n L106j L106b L106b NET TUNNEL CLIMBING WALL TOWER L106g L106h L106a L106d CRAWLING TUNNEL RAMP TOWER... - Page 12 Installation Instructions Attach the CLATTERBRIDGE HEX floor to timbers on RAMP AND SLIDE TOWERS and STANDARD HEX FLOOR to NET CLIMBER AND CLIMING WALL timbers Using 4x150mm M12 SQUARE CUP HEX BOLTS/ 4x Nylocs / 4x RED CAPS - PER FLOOR NET CLIMBER TOWER CLIMBING WALL TOWER...
- Page 13 Installation Instructions Install the RAMP to the floor METAL FRAME and LEGS Using (2X200mm - RAMP PULL TIMBER) (2x100mm - FIX RAMP TO FLOOR) (6X70mm - FIX HEX TO RAMP) M12 SQUARE CUP HEX BOLTS/ 10x M12 Nylocs / 10x COVERED ENDS Using 2x 5B TORKTAINER / 2x N4 TORKTAINER fix the box section legs L106g L106f...
- Page 14 Installation Instructions ON OTHER TOWER - Attach the SLIDE to the HEXBOARD FLOOR Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ L106c L106b Insert the SLIDE SIDES to the SLIDE and to the timbers L106b/L106c USING 4x ‘FM80 Brass Screws’ L106b L106c REF: L106 - LILLIPUT PLAYTOWN SIX...
- Page 15 Installation Instructions Attach the PANELS (x6) to the TIMBERS SHOWN Using 4x ‘FM80 Brass Screws’ PER PANEL Attach the ROPE to the TIMBER L106f and FLOOR FRAME Using 2x NYLOCS / 2x RED CAPS L106f REF: L106 - LILLIPUT PLAYTOWN SIX pg 15 of 27...
- Page 16 Installation Instructions ATTACH the CLATTERBRIDGE and TIMBERS L106e Fig1 - ATTACH L106e TIMBERS USING 4 X M12 X 200 CUP SQUARE BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS Fig2 - ATTACH ROPES USING 4 X M12 NYLOCS / 4 X COVERED ENDS Fig3 - ATTACH CLATTERBRIDE CHAIN USING 4 X M12 NYLOCS / 4 X COVERED ENDS FIG1 FIG2...
- Page 17 Installation Instructions CRAWLING TUBE - ATTACH THE HEXBOARD TO METAL FLOOR FRAME USING 6 X M12 X 75 CUP SQUARE BOLTS / 6 X M12 NYLOCS / 6 X COVERED ENDS PLACE INBWTEEN TOWERS L106c L106c L106b ATTACH UNDERNEATH L106b L106b L106b UNDERNEATH...
- Page 18 Installation Instructions ATTACH THE ENTRANCE RINGS and CENTRE RINGS ATTACH ENTRANCE RINGS USING FM80 BRASS SCREWS ATTACH CENTRE RINGS USING THE PLAYTEC CLIP SETS / M12 X 80mm SQUARE CUP BOLTS / M12 NYLOCS / M12 COVERED ENDS Attach FIRST/LAST PLAYTEC SLATS and 30X30 BOX SECTION to the RINGS USING 0B/N1 TORKTAINERS REF: L106 - LILLIPUT PLAYTOWN SIX pg 18 of 27...
- Page 19 Installation Instructions Attach REST of PLAYTEC SLATS and 30X30 BOX SECTION to RINGS USING 0B/N1 TORKTAINERS ..CONTINUE AROUND ENSURE: THAT EACH SLAT IS AN ALTERNATIVE COLOUR. e.g - ONE GREEN, ONE YELLOW, ONE GREEN, ONE YELLOW ETC. Attach CLIMBING WALL USING FM80 BRASS SCREWS REF: L106 - LILLIPUT PLAYTOWN SIX pg 19 of 27...
- Page 20 Installation Instructions ATTACH NET TUNNEL and TIMBER L106i (X 2) Fig1 - ATTACH 2 X L106i TIMBERS USING 4 X M12 X 200 CUP SQUARE BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS Fig2 - ATTACH ROPES USING M12 NYLOCS / COVERED ENDS Fig3 - ATTACH NET TUNNEL THREAD BAR USING 6 X M12 NYLOCS / 6 X COVERED ENDS FIG1 FIG2...
- Page 21 Installation Instructions ATTACH TRAVERSE WALL USING FM80 BRASS WOOD SCREWS ENSURE: 280mm GAP IS LEFT IN BETWEEN THE TOP AND BOTTOM SECTIONS PLAYTEC FACES INTO TOWER - NOT ON OTHER SIDE OF TIMBER ATTACH FIREFIGHTERS POLE ATTACH TIMBER USING 2 X 200mm CUP SQUARE BOLTS / 2 X M12 NYLOCS / 2 X COVERED ENDS/ ATTACH POLE INTO METAL BRACKET - TIGHTEN INTO PLACE AND FIX TO MIDDLE OF TIMBER USING FM80 BRASS SCREWS.
- Page 22 Installation Instructions ATTACH CLIMBING NET IN BETWEEN TOWERS Fig1 - ATTACH TIMBER 160MM FROM TOP OF UPRIGHTS WITH FM80 WOOD SCREWS Fig2 - ATTACH BOTTOM HORIZONTAL ROPES THROUGH UPRIGHTS USING M12 NYLOCS / COVERED ENDS Fig3 - ATTACH VERTICAL ROPES THROUGH TIMBER L106p USING M12 NYLOCS / COVERED ENDS FIG1 FIG2 FIG3...
- Page 23 Installation Instructions ATTACH ROPE WALK IN BETWEEN TOWERS Fig1 - ATTACH BOTTOM HORIZONTAL ROPES THROUGH UPRIGHTS USING M12 NYLOCS / COVERED ENDS Fig2 - ATTACH ROPE WALK TO TOWER FLOORS USING M12 NYLOCS / COVERED ENDS FIG1 FIG1 FIG2 FIG2 REF: L106 - LILLIPUT PLAYTOWN SIX pg 23 of 27...
- Page 24 Installation Instructions ATTACH NET CLIMBER to TOWER and SECURE IN FOUNDATIONS Fig4 - ATTACH TOP OF NET TO FLOOR USING 3 X M12 NYLOCS / 3 X COVERED ENDS Fig5 - ATTACH ROPES TO NET CLIMBER GROUND ANCHOR USING 3 X M12 NYLOCS / 3 X COVERED ENDS ENSURE: FIG4 NET CLIMBER IS ATTACHED AT THE TOP...
- Page 25 Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: L106 - LILLIPUT PLAYTOWN SIX pg 25 of 27...
- Page 26 Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: L106 - LILLIPUT PLAYTOWN SIX pg 26 of 27...
-
Page 27: Additional Dimensions
Additional Dimensions 4.62m 8.45m REF: L106 - LILLIPUT PLAYTOWN SIX pg 27 of 27...
