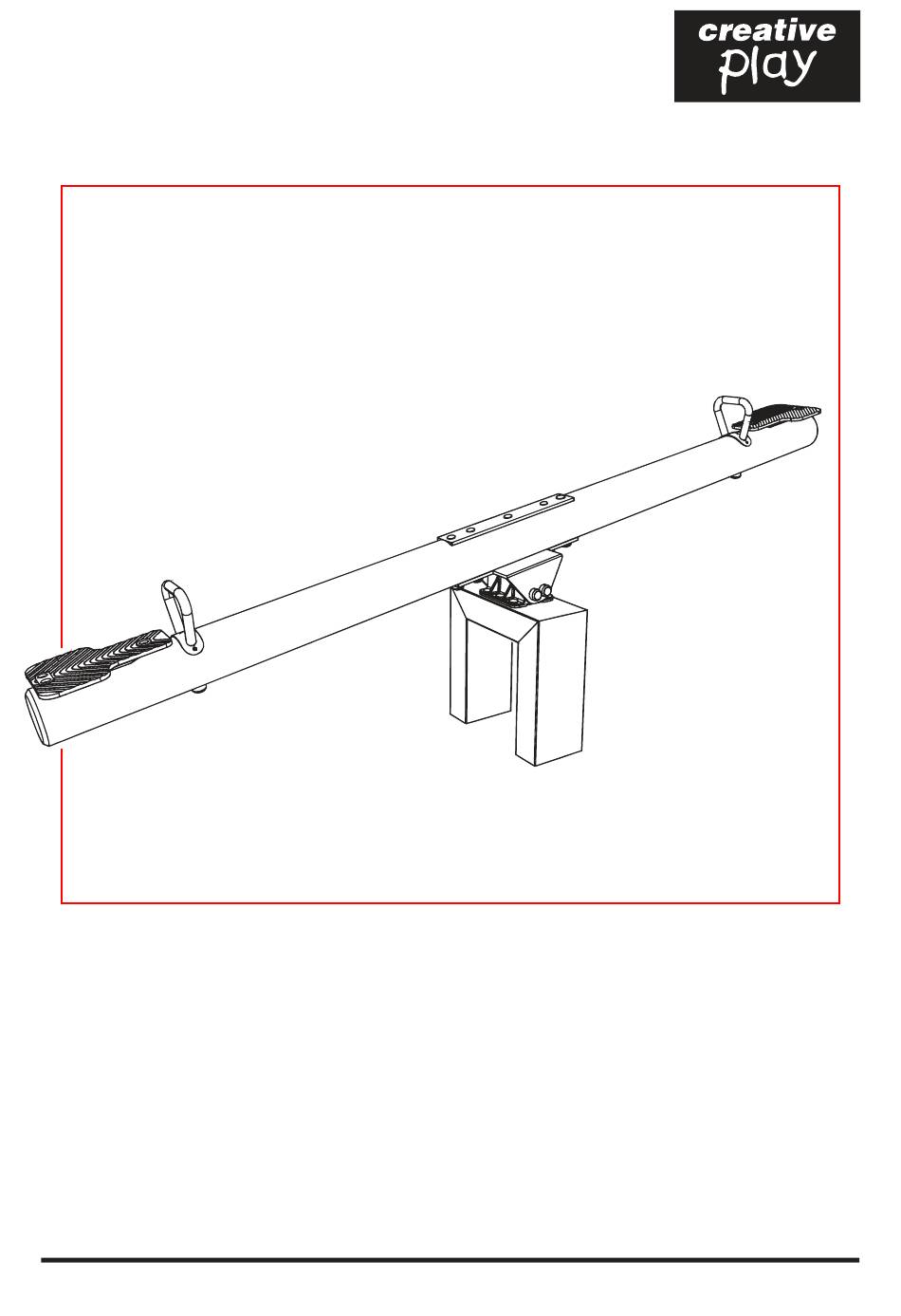

- Page 1 SEESAW ROUND Installation Instructions REF: SR109-R - SEESAW ROUND pg 1 of 10...
-
Page 2: Parts Required
SR109-R-Ma consists of... 1 x SR109-R-Ma 1 x SR109-R-Mb 1 x SR109-R-Mc SR109-R-Mb SR109-R-Mc (SR109-RT - TIMBER) seesaw seat standard) seesaw handle standard - for round wood) DW-A 50X200 ROSTA UNIT) REF: SR109R - SEESAW ROUND pg 2 of 10... -
Page 3: Tools Required
PARTS required (FM80 WOOD SCREWS) (M12 x 170* CUP SQUARE BOLTS) (M12 x 130* CUP SQUARE BOLTS) (COVERED END) (M12 x 60 BOLT / SET) (end caps R60) (M12 NYLOCS) TOOLS required REF: SR109R - SEESAW ROUND pg 3 of 10... -
Page 4: Foundation Details
Foundation Details SOIL (150mm) CONCRETE POST / SUPPORT REF: SR109R - SEESAW ROUND pg 4 of 10... -
Page 5: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: SR109R - SEESAW ROUND pg 5 of 10... -
Page 6: Installation Instructions
Using 6 x M12x130 CUP SQUARE BOLTS / 6 x NYLOCS / 6 x COVERED ENDS Attach the TIMBER to the SR109-R-Ma/b metal parts Using 5 x M12x170 CUP SQUARE BOLTS / 5 x NYLOCS / 5 x COVERED ENDS REF: SR109R - SEESAW ROUND pg 6 of 10... - Page 7 Using 4 x M12 x 60 BOLT / 4 x COVERED END NOTES: The ROSTA UNIT has its own thread - (2x BOLTS either side) ENSURE: The seesaw is in a LEVEL POSITION before bolting together REF: SR109R - SEESAW ROUND pg 7 of 10...
- Page 8 Using 1 x M12x170 CUP SQUARE BOLTS / 1 x NYLOCS / 1 x COVERED ENDS / 2 x FM80 WOOD SCREWS NOTES: If the bolt does not fit as shown ABO- VE attach as shown RIGHT Attach the SEAT Using 3 x FM80 WOOD SCREWS REF: SR109R - SEESAW ROUND pg 8 of 10...
- Page 9 Repeat STEPS 4 - 5 for the OPPOSITE END Using 1 x M12x170 CUP SQUARE BOLTS / 1 x NYLOCS / 1 x COVERED ENDS / 3 x FM80 WOOD SCREWS REF: SR109R - SEESAW ROUND pg 9 of 10...
- Page 10 Addition Drawings AT REST ‘IN USE’ Rotation of 30 degress shown red above REF: SR109R - SEESAW ROUND pg 10 of 10...
