Battery Installation
Steps:
1. Connect the Positive Terminal of the first battery to the Negative Terminal of the
second battery.
2. Connect the Positive Terminal of the second battery and the Negative Terminal of
the third battery, and so on.
3. Finally, connect the Positive Terminal of the last battery and the Negative
Terminal of the first battery to the corresponding terminals of external devices.
Note
• Up to 4 batteries can be connected in series.
• Using batteries in a series connection for a long time
may lead to imbalances. It is recommended to regularly
connect the batteries in parallel, and float charge them
for 24 hours after a full charge.

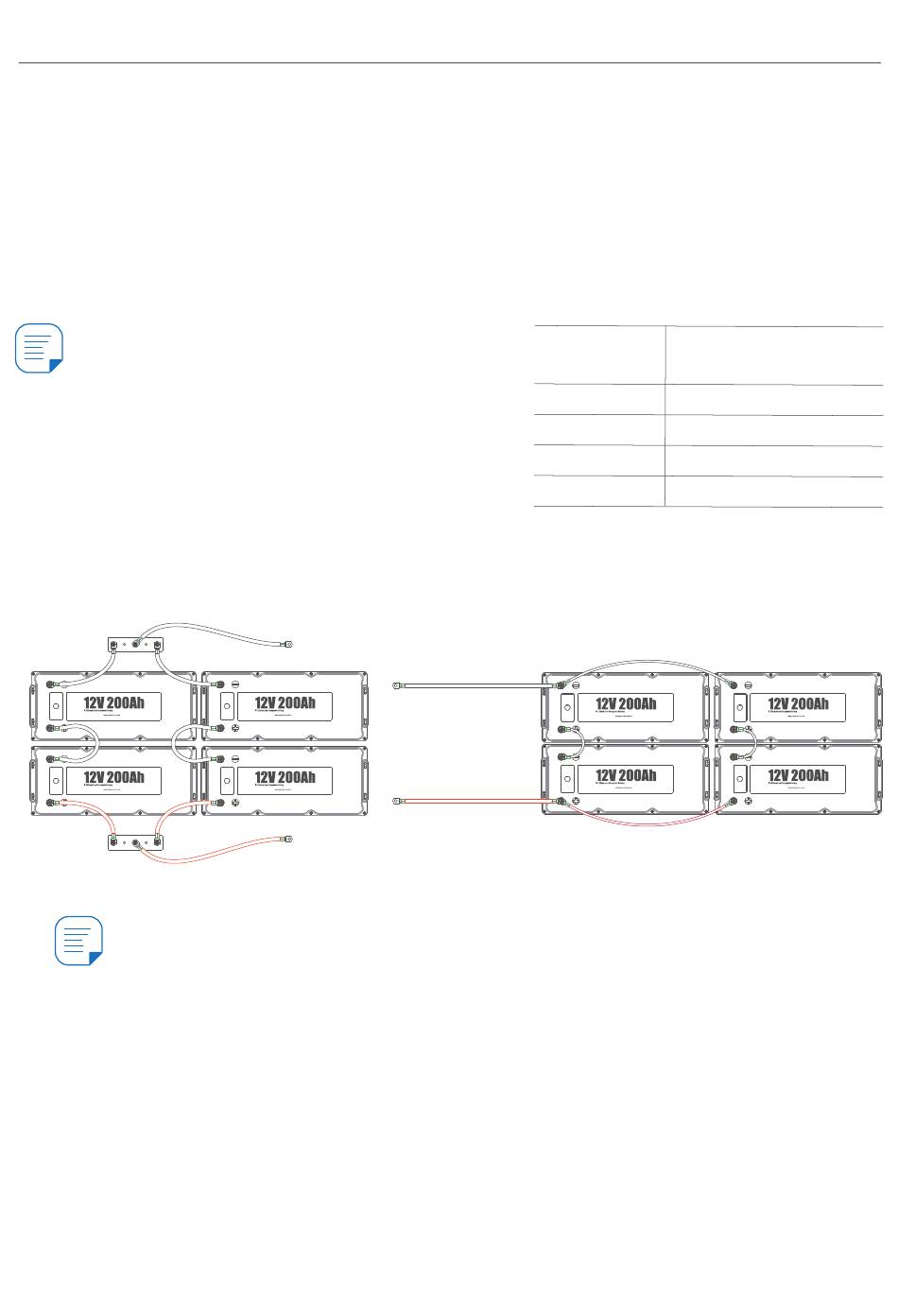

③ Connecting the Batteries in Series & Parallel
-
+
-
+
Method 1 (Optimal)
Note
• To avoid triggering battery protection due to the large voltage difference, it is recommended
to connect the batteries in parallel, float charge them for 24 hours after a full charge, and
then use them in series and parallel connection.
• When connecting the batteries in series and parallel, please connect them in series first and
then in parallel.
• Up to 16 identical batteries are supported in series and parallel connection (Max 4S4P).
5.4

Post-Installation Check

Please check if the positive and negative connections are correct.
-
+
-
+
Series Recommended Charging
Configuration
Voltage Value (VDC)
1S
2S
3S
4S
-
+
-
+
Method 2
14 ~ 14.6
28 ~ 29.2
42 ~ 43.8
56 ~ 58.4
-
+
-
+
