Summary of Contents for Pylontech PV12200

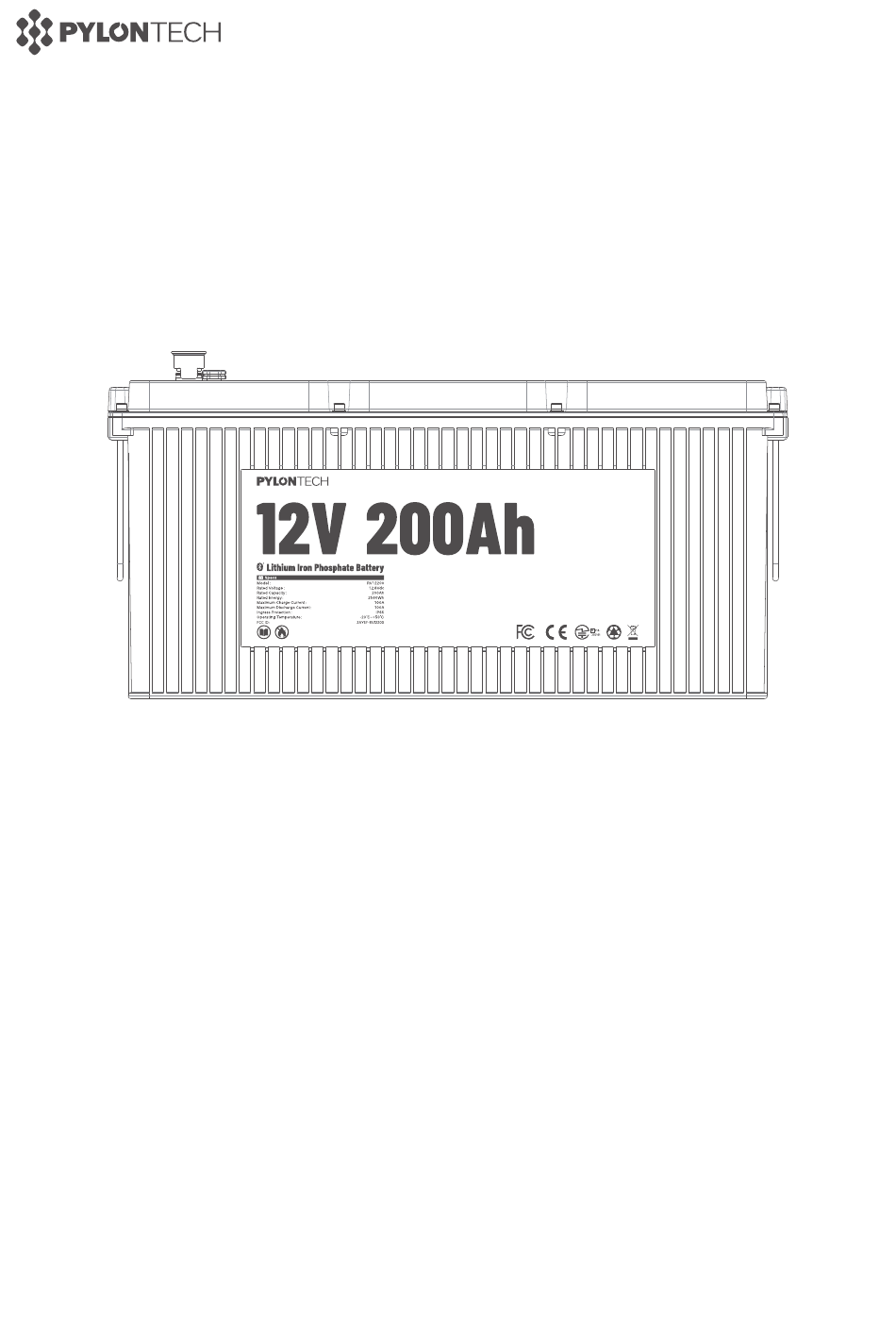

- Page 1 Smart Lithium Iron Phosphate Battery RV12200 User Manual Information Version: 1.3...
- Page 2 Legal Information Copyright©2024 Pylon Technologies Co., Ltd. All rights reserved. Any reproduction or distribution of this manual or any part of this manual, or any uploading of this manual to a third party website, in any form by any means, without the prior written consent of Pylon Technologies Co., Ltd., is prohibited.
- Page 3 General • For safety purposes, please use only the accessory (cable, charger, and etc) supplied or recommended by Pylontech. Pylontech shall not be liable for damage caused by third-party accessories. • Before first use, please check if the device is in good condition. If the device is deformed or has an odor, do not use the device and return it to the distributor.
- Page 4 • If the device does not work properly, please contact your distributor or the nearest service center within 24 hours. DO NOT disassemble the device for repair or mainte- nance by yourself. Pylontech shall not assume any responsibility for problems caused by unauthorized repair or maintenance.
-
Page 5: Table Of Contents
Contents 1 Introduction ........................................1 2 Packing List........................................2 3 Optional Accessories..................................2 4 Interface...........................................2 5 Battery Installation .....................................2 5.1 Tools and Accessories Preparation.........................2 5.2 Pre-installation Check................................3 5.3 Battery Connection..................................3 5.4 Post-Installation Check ................................5 6 Battery Activation ....................................6 7 Battery Monitoring....................................6 7.1 App...........................................6 7.2 Battery Networking..................................6 7.3 Battery Status Check................................ -
Page 6: Introduction
With low-temperature smart heating function, the battery can be charged safely in sub-zero temperatures. • Real-time Monitoring via App You can monitor the battery status via Pylontech Auto App. • Low Self-discharge Loss The battery can be stored for over 2 months if it is turned off after being fully discharged, and can be stored for over 6 months if it is turned off when its level is between 40% and 70%. -
Page 7: Packing List
Packing List Insulating Cap × 2 Terminal Bolt × 2 (M8 × 1.25 × 14 mm) Battery User Manual Optional Accessories KIT-C1 Extended Antenna Rubber Duck Antenna Battery Adapter Cables Interface Negative Pole Positive Pole Battery Installation Tools and Accessories Preparation Screwdriver Voltmeter Wire Cutter... -
Page 8: Pre-Installation Check
Battery Installation Safety Goggles Bus Bar Insulating Gloves Pre-installation Check • Cut off the power before wiring, installing or removing the battery. • To prevent electric shock, please remove watches, brace- lets, rings and other conductive items (if any) and wear insulating gloves and safety goggles before installation. - Page 9 Battery Installation ① Connecting the Batteries in Parallel Method 1 (Optimal) Method 2 Steps: Steps: 1. Connect the Positive Terminals of 1. Connect the Positive Terminals of the batteries to a bus bar. the batteries in sequence. 2. Connect the Negative Terminals of 2.
-
Page 10: Post-Installation Check
Battery Installation Steps: 1. Connect the Positive Terminal of the first battery to the Negative Terminal of the second battery. 2. Connect the Positive Terminal of the second battery and the Negative Terminal of the third battery, and so on. 3. -
Page 11: Battery Activation
You can finish battery networking, check battery information, complete remote upgrades and more through PylontechAuto App. PylontechAuto App PylontechAuto App Quick Guide Battery Networking • Basic Mode Before first use, follow "Connect" section in the Pylontech Auto App Quick Guide to finish battery networking. Mobile Phone Host Battery Note... - Page 12 Battery Networking • Extension Mode With a KIT-C1 communication box, Bluetooth signal can be transmitted smoothly in a enclosed space or over a long distance. Note • KIT-C1 power supply: DC10 V ~ 60 V. • When KIT-C1 is far away from the mobile phone or battery, or when there is an obstruction between KIT-C1 and the mobile phone or battery, you are recommended to use an extended antenna for smooth signal transmission.
-
Page 13: Battery Status Check
Battery Networking ③ When KIT-C1 is close to the mobile phone and there is no obstruction between them, while there is an obstruction between KIT-C1 and the batteries, a rubber duck antenna is recommended for the Bluetooth port and an extended antenna for the wireless port. -
Page 14: Battery Storage
Battery Storage Please follow the steps below to store the battery. 1. Make sure the battery level is between 40% and 70%. 2. Disconnect the battery from all loads and the charging device (if present). 3. Store the battery in a well-ventilated, clean, dry area with temperatures between 23 °F (-5 °C) and 95 °F (35 °C). -
Page 15: Specifications
Specifications Electrical Specification Nominal Voltage 12.8 VDC Nominal Capacity 200 Ah Resistance < 10 mΩ Efficiency Self Discharge ≤ 3% per month Max. Batteries in Parallel or Series 4S4P Cycle Life (25°C) > 4000 (80% DOD, 0.5 C, 25 °C) Design Life ≥... - Page 16 Specifications Mechanical Specification Dimensions 18.07 in × 7.48 in × 9.23 in (L × W × H) (459 mm × 190 mm × 234.5 mm) Weight Approx. 46.08 lbs (20.9 kg) Terminal Type M8 × 1.25 × 14 mm Terminal Torque 9 ±...
-
Page 17: Troubleshooting
Troubleshooting My battery won’t turn on? Check if the charger output is normal. Check if the charger is connected properly. Contact your distributor. My battery won’t turn off? Disconnect all external devices, and the battery will turn off after 24 hours of inactivity. My battery won’t charge? Restore the battery by discharging it. - Page 18 Pylon Technologies Co., Ltd No.300, Miaoqiao Road, Kangqiao Town, www.pylontech.com.cn Pudong New Area, Shanghai, China +86-21-51317699...
