- Page 1 MANUAL Pylontech Auto App for RT12100G31...
- Page 2 Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Getting started .

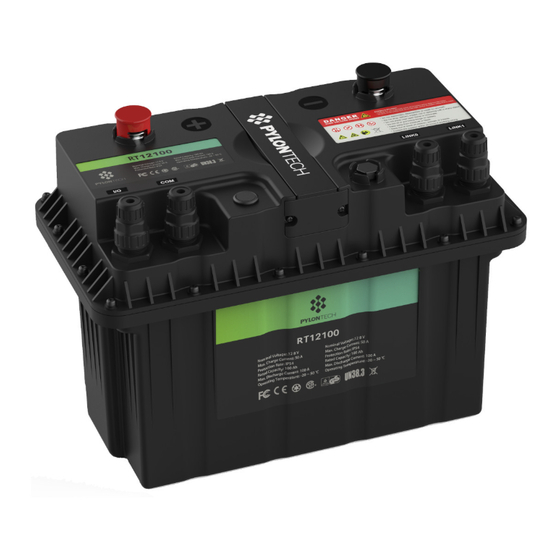

- Page 3 The Pylontech RT12100G31 battery has been developed to provide adaptability and scalability to applications from Marine, RV/Caravan, 4x4 and other solar storage systems . Being an “array aware” or managed battery, the RT12100G31 allows for expansion by allowing the BMS to communicate with each other in a master/slave format .
- Page 4 3. Adding a Battery / Battery System On initial log in the “Add” screen will open first, Click the “Add” button . The device will list all Pylontech Bluetooth batteries in Bluetooth Range . Identify the serial number on the top of the battery you wish to view or the battery that is the Master battery within the system Find the serial number in the list and click on the serial number .
- Page 5 This will open the system Dash Board page: 1) Displays the Serial Number of the battery currently logged into . In Series/parallel configurations this will be the serial number of the Master Battery 2) System State of Charge 3) Temperature variance of all cells in system 4) Accumulated Energy (Total System Life output .
- Page 6 SYSTEM CONFIGURATION 1. Click “. . .” at the top right-hand Corner. 2. My Devices: lists all Pylontech batteries linked to this account within Bluetooth range . 3. Documents: Links to Pylontech Document files with FAQ’s and Manuals 4. Control: This is the Connection Verification section for Series and Parallel &...
- Page 7 6. Programming of master BMS for Series and Parallel connection. To supply the correct information to external devices such as Victron Venus devices, the system parameters need to have the correct number of batteries in series or parallel . • A 12V System (1S) can be scaled up to 16 in parallel •...
