Page 1
Quick Start Guide SenseFace 4 Series Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.
Page 2

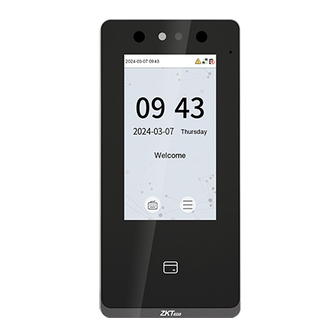

1 Overview 84.5mm 21.65mm Near-infrared Flash Camera Microphone 4.3-inch Touchscreen Card Reading Area Fingerprint Sensor* USB (Type A ; Drive Only) Magnetic Tamper Speaker Switch Reset Auxiliary Input Exit Button Lock Sensor 485B RS485 485A 12V-OUT Power Wiegand Output/Inuput Note: Ÿ...
Ÿ Protect the SenseFace 4 Series device from moisture, water, and rain. Ÿ Handle the SenseFace 4 Series device with care. Ÿ Make sure that the SenseFace 4 Series device is not installed in close proximity to a sea or other environments where metal oxidation and rust may occur if the SenseFace 4 Series device is exposed for a long time.
Page 4
4 Exit Button and Door Sensor Connection Door Sensor 485B 485A 12V-OUT ExitButton 5 Smoke Detection Connection Smoke Detector 485B 485A 12V-OUT...
6 Power Connection 12V DC Recommended Power Supply: Ÿ 12V ± 10%, at least 3000mA. Ÿ To share power with other devices, use a power supply with higher current ratings. 7 RS485 and Wiegand Connection RS485 Reader 485B 485- 485A 485+ 12V-OUT +12V...
8 Ethernet Connection ZKBio CVAccess RJ 45 IP Address: 192.168.1.130 Default IP Address: 192.168.1.201 Subnet Mask: 255.255.255.0 Subnet Mask: 255.255.255.0 Click COMM. > Ethernet > IP Address on the SenseFace 4 Series device, to input the IP address and then click OK. Note: In LAN, the IP address of the server (PC) and the device must be in the same network segment when connecting to the software.
10 User Registration When there is no super administrator set in the SenseFace 4 Series device, click icon to enter the menu. Add a new user, set their User Role to Super Admin, and the system will request administrator verification before granting access to the menu. It is strongly recommended to register a super administrator initially for security purposes.
Page 8
Please set the IP address and cloud service server address, in the Comm. Menu option on the SenseFace 4 Series device. Click Access > Access device > device > Search to search the SenseFace 4 Series device on the software. When an appropriate server address and port are set on the device, the searched devices are displayed automatically.
Page 9
Register on the Phone Once the ZKBio CVAccess software is installed, the users could enroll their face tem- plate via a browser application on their own mobile phone. Click Personnel > Parameters, input ‘’http://Server address: Port’’ in the QR Code URL.
Page 10
Click on > COMM. > Cloud Server Settings to set the server address. If the SenseFace 4 Series device communicates with the server successfully, the icon ..will be displayed in the upper right corner of the standby interface.
Set the IP address on the indoor station, Tap Menu > Advanced > Network > 1. Network > 1. IPv4. Note: Indoor station IP address and the SenseFace 4 Series device IP address must be in the same network segment.
Page 12
>Intercom > SIP Settings > Contact List. C lick Add, input device number and call address to add a new contact member. Note: Call address and the SenseFace 4 Series device must be in the same network segment. Click SIP Settings > Calling Shortcut Settings, select any item except admin, and enter the form information you just uploaded.
Page 13
SIP is set up correctly, a green dot will appear in the upper right corner of the call page to indicate that the SenseFace 4 Series device is connected to the server. You can call the account name of the indoor station.
Page 14
Volume Button Music Button SenseFace 4 Series Wireless Doorbell After a successful pairing, clicking the icon of SenseFace 4 Series device will ring the wireless doorbell. Note: Generally, each SenseFace 4 Series device connects to 1 wireless doorbell. -13-...
14 ONVIF Settings This function needs to be used with the Network Video Recorder (NVR). Set SenseFace 4 Series device to the same network segment as the NVR. >Intercom > ONVIF Settings to set the User Name and Password. Click Note: If the Authentication function is disabled, then there is no need to input the User Name and Password when adding the device to the NVR.
Page 16
Select the checkbox for the device you want to add and edit the parameters in the corresponding text field, then click on OK to add it to the connection list. After successfully adding, the video image obtaining from the device can be viewed in real-time.
