- Page 1 Quick Start Guide EFace10 Version: 1.0 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

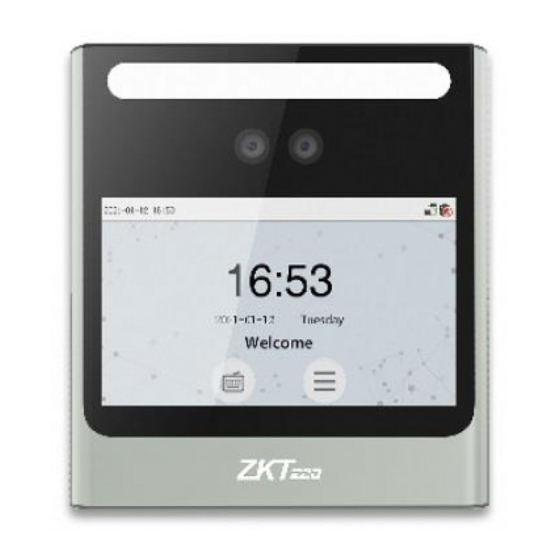

- Page 2 Overview Flash Camera Speaker Near-infrared Flash 4.3-inch Touchscreen ★ Card Reading Area Speaker Heat Emission Hole Reset Lock Ethernet Door Sensor Auxiliary Exit Button input +12V Power in ★ Battery ★ Note: Features and parameters with mark are not available in all devices.
-
Page 3: Installation Environment
Installation Environment Please refer to the following recommendations for installation. INSTALL INDOORS AVOID INSTALLATION AVOID DIRECT AVOID USE OF ANY ONLY NEAR SUNLIGHT HEAT SOURCE GLASS WINDOWS AND EXPOSURE NEAR THE DEVICE Recommended Standing Position KEEP EFFECTIVE DISTANCE OF 0.3-2m Standalone Installation Smoke Detector... -
Page 4: Power Connection
Power Connection Recommended AC Adapter 1) 12V ± 10%, at least 1500mA. 2) To share the power with other devices, use an AC Adapter with higher current ratings. Ethernet Connection Connect the device and computer software over an Ethernet cable. As shown in the example below: ZKBioAccess IVS Default IP address: 192.168.1.201... -
Page 5: Lock Relay Connection
Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO Lock (normally opened when powered) is connected with 'NO' and 'COM' terminals, and the NC Lock (normally closed when powered) is connected with 'NC' and 'COM' terminals. An example with NC lock is shown below: Device not sharing power with the lock DC12V FR107... -
Page 6: User Registration
User Registration When there s no super administrator set in the device, click on enter the menu. Add a new user and set User Role to Super Admin, then the system requests for administrator’s verification before entering the menu. It is recommended to register a super administrator initially for security purposes. - Page 7 Method 2: Register on ZKBioAccess IVS software Please set the IP address and cloud service server address in the Comm. Menu option on the device. Click [Attendance] > [Attendance Device] > [Device] > [Search] to search the device on the software. When an appropriate server address and port is set on the device, the searched devices are displayed automatically.
- Page 8 Method 3: Register on the phone Once the ZKBioAccess IVS software is installed, the users could enroll their face via a browser application on their own mobile phone. 1. Click [Personnel] > [Parameters], input ‘’http://Server address: Port’’ in the QR Code UGL bar.
- Page 9 Ethernet and Cloud Server Settings Click on > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP communication of the device is successful, the icon will be displayed in the upper right corner of the standby interface. Click on >...
-
Page 10: Access Control Setting
Access Control Setting Click on > [Access Control] to enter the access control management interface and set relevant parameters of access control. Attendance Record Click on > [Attendance ] > [ Attendance Record] to enter the record query interface, input the user ID and select the time range, the corresponding attendance record will be displayed. - Page 11 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
