User Manual
IM20
Date: September 2022
Doc Version: 1.2
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
For further details, please visit our Company's website
www.zkteco.com.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IM20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco IM20

Summary of Contents for ZKTeco IM20

  • Page 1 User Manual IM20 Date: September 2022 Doc Version: 1.2 English Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only.
  • Page 2 Thank you for choosing our product. Please read this User Manual carefully before use. We strongly believe that IM20 brings you and your customers an excellent user experience and will make your Brand Image and the Management to a higher level.

  • Page 3: Table Of Contents

    Content 1 INTRODUCTION ..........................3 2 APPEARANCE..........................4 3 SPECIFICATIONS ..........................5 4 FEATURES ............................8 5 INSTALLATION AND USE ....................... 9 ........................... 9 NSTALLATION ..........................9 ..........................16 PERATION 6 MAINTENANCE AND CLEANLINESS GUIDELINES ..............18...

  • Page 4: Introduction

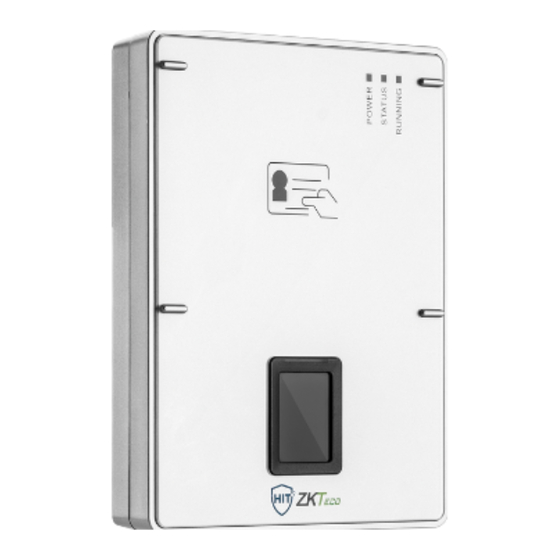

    The device combines RFID and fingerprint verification technology with accurate reading, strong anti-interference ability and fast identification. IM20 offers different authentication methods. It can read Indonesian ID card information and compare it with the user's fingerprint.

  • Page 5: Appearance

    Appearance...

  • Page 6: Specifications

    Specifications Model Name IM20 Operating System Windows7 or above, Linux, Android5.1.1 and above Fingerprint Module Optical Fingerprint Mode Fingerprint Comparing Mode 1:1 / 1:N Card Type Indonesia National ID Card...
  • Page 7 Dimensions ( L * W * H ) 125.43 * 97.93 * 19.90 (mm) Card Reading Distance 0 to 3cm Power Supply Specification 5V±0.2A Interface USB 2.0 Contact Card Reading Protocol ISO / IEC 7816, T=0, T=1 Contactless Card Reading Protocol ISO / IEC 14443, 13.56MHz (fc)
  • Page 8 Fingerprint Image Quality 2-megapixel pixels CMOS Fingerprint Image Resolution 500 dpi Fingerprint Image Size 300 * 400 pixels Operating Temperature -20 °C to 50 °C Operating Humidity 90%RH...

  • Page 9: Features

    Features The USB 2.0 interface has stable communication and unified integration  Stable and fast card reading  Reading content provides a variety of options  Provide multiple operating system SDK  The new tamper-proof mechanism and unique identity protocol ensure data security ...

  • Page 10: Installation And Use

    Installation and Use Installation The device is desktop mounted, with the front of the device facing up, plug-play. The IM20 communicates via USB. The IM20's USB port can be plugged directly into the computer, and when the device's working indicator lights up, the ID Card can be read and fingerprints can be identified and compared.
  • Page 12 After the fingerprint recognition module driver is installed, run the Demo.
  • Page 14 Check the information that needs to be displayed and identified for comparison.
  • Page 15 Place the ID Card in the card reading area, click [Verifikasi].

  • Page 17: Operation

    Operation 1. Card Placement After the device is connected to the computer and the device's light is on properly. Place the ID Card 0 to 4 cm above the device. Ensure that the ID Card is at the center of the card reading area.
  • Page 18 2. Finger Placement...

  • Page 19: Maintenance And Cleanliness Guidelines

    Maintenance and Cleanliness Guidelines Maintenance  Please keep the product away from water. Protect the product from falling, colliding and so on. Do not intentionally power on or power off the product. Cleanliness  Please keep the product away from dust. Use adhesive tape to clean the collecting area.
  • Page 20 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2022 ZKTECO CO., LTD. All Rights Reserved.
