CALIBRATION PROCEDURE

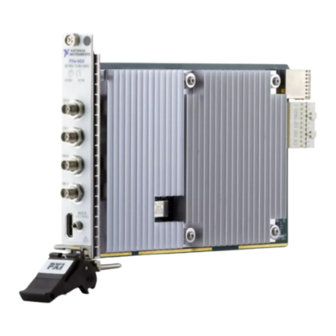

PXIe-5433
PXIe, 80 MHz Bandwidth, 16-Bit PXI Waveform Generator
This document contains the verification and adjustment procedures for the PXIe-5433. Refer
to
ni.com/calibration
Contents
Required Software.....................................................................................................................1
Related Documentation.............................................................................................................2
Test Equipment..........................................................................................................................2
Test Conditions..........................................................................................................................4
Password................................................................................................................................... 5
Calibration Interval................................................................................................................... 5
As-Found and As-Left Limits................................................................................................... 5
Calibration Overview................................................................................................................ 5
Verifying the PXIe-5433........................................................................................................... 6
Verifying Timebase Accuracy...........................................................................................6
Verifying DC Voltage Accuracy........................................................................................7
Verifying AC Amplitude Accuracy...................................................................................9
Verifying Passband Flatness Accuracy........................................................................... 11
Adjusting the PXIe-5433........................................................................................................ 14
Adjusting Timebase.........................................................................................................15
Adjusting DC Voltage..................................................................................................... 16
Adjusting Passband Flatness........................................................................................... 16
Reverification..........................................................................................................................18
Setting the Calibration Date and Due Date............................................................................. 19
Worldwide Support and Services............................................................................................ 19
Required Software
Calibrating the PXIe-5433 requires you to install the following software on the calibration
system:
•
NI-FGEN 17.1 or later
The PXIe-5433 was first supported in NI-FGEN 17.1.
•
LabVIEW 2016 or later, Full Development System or Professional Development System
You can download all required software from ni.com/downloads.
for more information about calibration solutions.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments PXIe-5433
Summary of Contents for National Instruments PXIe-5433
-
Page 1: Table Of Contents
Reverification..........................18 Setting the Calibration Date and Due Date................19 Worldwide Support and Services.................... 19 Required Software Calibrating the PXIe-5433 requires you to install the following software on the calibration system: • NI-FGEN 17.1 or later The PXIe-5433 was first supported in NI-FGEN 17.1. -
Page 2: Related Documentation
Refer to the following table for a list of necessary test equipment, minimum requirements for the test equipment, and model recommendations for calibration of the PXIe-5433. If you do not have the recommended equipment, select a substitute calibration standard using the minimum requirements specifications listed in the table. - Page 3 SMA (m)-to- — Verifications: Frequency range: DC to BNC (m) cable 1 MHz • DC voltage accuracy Impedance: 50 Ω • AC amplitude Length: <1 m accuracy Adjustments: • DC voltage PXIe-5433 Calibration Procedure | © National Instruments | 3...
-
Page 4: Test Conditions
• The PXIe-5433 is warmed up for 15 minutes at ambient temperature. Warm up begins after the chassis is powered and the PXIe-5433 is recognized by the host and configured using NI-FGEN. • All test instruments are warmed up for at least the period of time stated in the documentation for each instrument and self-calibration is performed. -
Page 5: Password
2 years As-Found and As-Left Limits The as-found limits are the published specifications for the PXIe-5433. NI uses these limits to determine whether the PXIe-5433 meets the specifications when it is received for calibration. Use the as-found limits during initial verification. -
Page 6: Verifying The Pxie-5433
As-Left Limit ±(1.5 ppm + 1 ppm per year ±0.28 ppm Connect one end of the SMA (m)-to-SMA (m) cable to a channel of the PXIe-5433 and the other end to a channel of the oscilloscope. Note Timebase accuracy verification can be performed on either channel of the two-channel PXIe-5433. -
Page 7: Verifying Dc Voltage Accuracy
PXIe-5433. Verifying DC Voltage Accuracy Follow this procedure to verify the DC voltage accuracy of the PXIe-5433 by comparing the voltage sourced by the PXIe-5433 to the value measured by the DMM. Refer to the following table as you complete the following steps. - Page 8 -0.968 ±10.66 ±2.95 1.854 -0.927 -0.927 ±10.23 ±2.82 1.770 -0.885 -0.885 ±9.79 ±2.69 1.686 -0.843 -0.843 ±9.35 ±2.57 0.696 -0.348 -0.348 ±4.15 ±1.06 0.214 -0.107 -0.107 ±1.62 ±0.68 0.066 -0.033 -0.033 ±0.85 ±0.53 8 | ni.com | PXIe-5433 Calibration Procedure...
-
Page 9: Verifying Ac Amplitude Accuracy
Connect one end of the SMA (m)-to-BNC (m) cable to CH 0 of the PXIe-5433. Connect the other end to the double banana plug-to-BNC (f) adapter, and connect the double banana plug-to-BNC (f) adapter to the HI and LO connectors of the DMM. - Page 10 ±1.65 ±0.81 Connect one end of the SMA (m)-to-BNC (m) cable to CH 0 of the PXIe-5433. Connect the other end to the double banana plug-to-BNC (f) adapter, and connect the double banana plug-to-BNC (f) adapter to the HI and LO connectors of the DMM.
-
Page 11: Verifying Passband Flatness Accuracy
AC Amplitude Accuracy Verification table. 10. If you are verifying a two-channel PXIe-5433, complete the following steps to verify CH 1: Abort waveform generation on the PXIe-5433. Disconnect the SMA (m)-to-BNC (m) cable from CH 0 and connect it to CH 1 of the PXIe-5433. - Page 12 ±0.10 ±0.50 ±0.13 ±0.65 ±0.12 0.867 0.05 — — ±0.40 ±0.25 ±0.40 ±0.11 ±0.45 ±0.10 ±0.50 ±0.13 ±0.65 ±0.12 0.780 0.05 — — ±0.40 ±0.25 ±0.40 ±0.11 ±0.45 ±0.10 ±0.50 ±0.13 ±0.65 ±0.12 12 | ni.com | PXIe-5433 Calibration Procedure...
- Page 13 Connect the power sensor with the SMA (m)-to-N (f) adapter attached to CH 0 of the PXIe-5433. Note Ensure the power sensor is supported to the extent that excessive strain is not applied to the connected channel of the PXIe-5433 or to the power sensor connector. Configure the power sensor with the following settings: •...
-
Page 14: Adjusting The Pxie-5433
When the power is measured at all frequencies other than 0.05 MHz, record this as Measured at Current Test Frequency Skip this step if the PXIe-5433 frequency is configured to 0.05 MHz. Calculate the passband flatness error using the following formula: Passband Flatness Error (dB) = P Measured at 0.05 MHz... -
Page 15: Adjusting Timebase
Adjusting Timebase Follow this procedure to adjust the internal timebase reference (TCXO) of the PXIe-5433. Connect one end of the SMA (m)-to-SMA (m) cable to a channel of the PXIe-5433 and the other end to a channel of the oscilloscope. -
Page 16: Adjusting Dc Voltage
Follow this procedure to adjust the DC voltage of the PXIe-5433. Connect one end of the SMA (m)-to-BNC (m) cable to a channel of the PXIe-5433. Connect the other end to the double banana plug-to-BNC (f) adapter, and connect the double banana plug-to-BNC (f) adapter to the HI and LO connectors of the DMM. - Page 17 Measured Power (dBm): Power of the waveform present on CH 0 of the PXIe-5433 and measured by the power sensor in the previous step in dBm 10. If the Flatness Cal Complete output of niFgen ni5433 Timebase Cal Adjust returns...
-
Page 18: Reverification
PXIe-5433. Note If any test fails reverification after performing an adjustment, verify that you have met the test conditions before returning your PXIe-5433 to NI. Refer to the 18 | ni.com | PXIe-5433 Calibration Procedure... -
Page 19: Setting The Calibration Date And Due Date
Setting the Calibration Date and Due Date After completing all verifications or reverifications, set the calibration date and a calibration due date for the PXIe-5433 using either Measurement Automation Explorer (MAX) or the LabVIEW NI System Configuration API. NI recommends a calibration due date of the date of external calibration plus the external calibration interval for the PXIe-5433. - Page 20 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
