CALIBRATION PROCEDURE
PXIe-5423

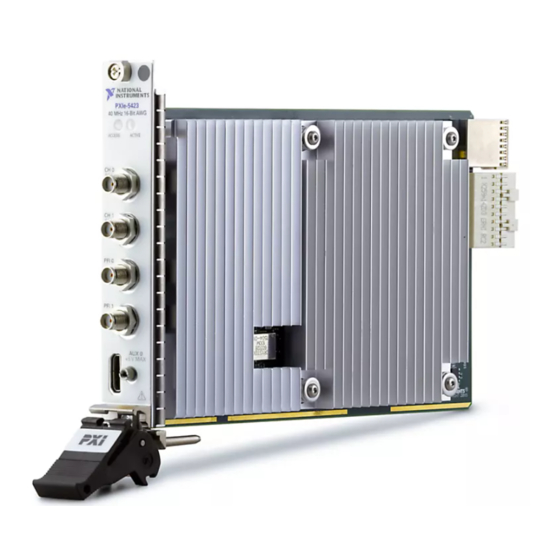

PXIe, 40 MHz Bandwidth, 1- or 2-Channel, 16-Bit PXI Waveform
Generator
This document contains the verification and adjustment procedures for the PXIe-5423. Refer
to
ni.com/calibration
Please review and become familiar with the entire procedure before beginning the calibration
process.
Contents
Required Software.....................................................................................................................1
Related Documentation.............................................................................................................2
Test Equipment..........................................................................................................................2
Test Conditions..........................................................................................................................4
Password................................................................................................................................... 5
Calibration Interval................................................................................................................... 5
As-Found and As-Left Limits................................................................................................... 5
Calibration Overview................................................................................................................ 5
Verifying the PXIe-5423........................................................................................................... 6
Verifying Timebase Accuracy...........................................................................................6
Verifying DC Voltage Accuracy........................................................................................7
Verifying AC Amplitude Accuracy...................................................................................9
Verifying Passband Flatness Accuracy........................................................................... 11
Adjusting the PXIe-5423........................................................................................................ 14
Adjusting Timebase.........................................................................................................14
Adjusting DC Voltage..................................................................................................... 15
Adjusting Passband Flatness........................................................................................... 16
Reverification..........................................................................................................................18
Setting the Calibration Date and Due Date............................................................................. 18
NI Services.............................................................................................................................. 18

Required Software

Calibrating the PXIe-5423 requires you to install the following software on the calibration
system:
•
NI-FGEN 17.1 or later
The PXIe-5423 was first supported in NI-FGEN 17.1.
•
LabVIEW 2016 or later, Full Development System or Professional Development System
for more information about calibration solutions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXIe-5423 and is the answer not in the manual?

Questions and answers

Related Manuals for National Instruments PXIe-5423

Summary of Contents for National Instruments PXIe-5423

  • Page 1: Table Of Contents

    Reverification..........................18 Setting the Calibration Date and Due Date................18 NI Services..........................18 Required Software Calibrating the PXIe-5423 requires you to install the following software on the calibration system: • NI-FGEN 17.1 or later The PXIe-5423 was first supported in NI-FGEN 17.1.

  • Page 2: Related Documentation

    Refer to the following table for a list of necessary test equipment, minimum requirements for the test equipment, and model recommendations for calibration of the PXIe-5423. If you do not have the recommended equipment, select a substitute calibration standard using the minimum requirements specifications listed in the table.
  • Page 3 SMA (m)-to- — Verifications: Frequency range: DC to BNC (m) cable 1 MHz • DC voltage accuracy Impedance: 50 Ω • AC amplitude Length: <1 m accuracy Adjustments: • DC voltage PXIe-5423 Calibration Procedure | © National Instruments Corporation | 3...

  • Page 4: Test Conditions

    • The PXIe-5423 is warmed up for 15 minutes at ambient temperature. Warm up begins after the chassis is powered and the PXIe-5423 is recognized by the host and configured using NI-FGEN. • All test instruments are warmed up for at least the period of time stated in the documentation for each instrument and self-calibration is performed.

  • Page 5: Password

    2 years As-Found and As-Left Limits The as-found limits are the published specifications for the PXIe-5423. NI uses these limits to determine whether the PXIe-5423 meets the specifications when it is received for calibration. Use the as-found limits during initial verification.

  • Page 6: Verifying The Pxie-5423

    EEPROM to allow traceability. Self-calibration—Let the PXIe-5423 warm up for 15 minutes before self-calibrating the PXIe-5423 by clicking the Self-Calibrate button in MAX or calling niFgen Self Cal. Reverification—Repeat the Verification procedure to ensure that the device is operating within the published specifications after adjustment.

  • Page 7: Verifying Dc Voltage Accuracy

    Connect one end of the SMA (m)-to-SMA (m) cable to a channel of the PXIe-5423 and the other end to a channel of the oscilloscope. Note Timebase accuracy verification can be performed on either channel of the two-channel PXIe-5423. Lock the oscilloscope to the precision frequency reference using the PXI Clock.
  • Page 8 -0.968 ±10.66 ±2.95 1.854 -0.927 -0.927 ±10.23 ±2.82 1.770 -0.885 -0.885 ±9.79 ±2.69 1.686 -0.843 -0.843 ±9.35 ±2.57 0.696 -0.348 -0.348 ±4.15 ±1.06 0.214 -0.107 -0.107 ±1.62 ±0.68 0.066 -0.033 -0.033 ±0.85 ±0.53 8 | ni.com | PXIe-5423 Calibration Procedure...

  • Page 9: Verifying Ac Amplitude Accuracy

    Connect one end of the SMA (m)-to-BNC (m) cable to CH 0 of the PXIe-5423. Connect the other end to the double banana plug-to-BNC (f) adapter, and connect the double banana plug-to-BNC (f) adapter to the HI and LO connectors of the DMM.
  • Page 10 ±1.65 ±0.81 Connect one end of the SMA (m)-to-BNC (m) cable to CH 0 of the PXIe-5423. Connect the other end to the double banana plug-to-BNC (f) adapter, and connect the double banana plug-to-BNC (f) adapter to the HI and LO connectors of the DMM.

  • Page 11: Verifying Passband Flatness Accuracy

    AC Amplitude Accuracy Verification table. 10. If you are verifying a two-channel PXIe-5423, complete the following steps to verify CH 1: Abort waveform generation on the PXIe-5423. Disconnect the SMA (m)-to-BNC (m) cable from CH 0 and connect it to CH 1 of the PXIe-5423.
  • Page 12 ±0.11 ±0.45 ±0.10 0.321 0.05 — — ±0.40 ±0.25 ±0.40 ±0.11 ±0.45 ±0.10 0.099 0.05 — — ±0.40 ±0.25 ±0.40 ±0.11 ±0.45 ±0.10 Connect the SMA (m)-to-N (f) adapter to the power sensor. 12 | ni.com | PXIe-5423 Calibration Procedure...
  • Page 13 Connect the power sensor with the SMA (m)-to-N (f) adapter attached to CH 0 of the PXIe-5423. Note Ensure the power sensor is supported to the extent that excessive strain is not applied to the connected channel of the PXIe-5423 or to the power sensor connector. Configure the power sensor with the following settings: •...

  • Page 14: Adjusting The Pxie-5423

    Adjusting Timebase Follow this procedure to adjust the internal timebase reference (TCXO) of the PXIe-5423. Connect one end of the SMA (m)-to-SMA (m) cable to a channel of the PXIe-5423 and the other end to a channel of the oscilloscope.

  • Page 15: Adjusting Dc Voltage

    Follow this procedure to adjust the DC voltage of the PXIe-5423. Connect one end of the SMA (m)-to-BNC (m) cable to a channel of the PXIe-5423. Connect the other end to the double banana plug-to-BNC (f) adapter, and connect the double banana plug-to-BNC (f) adapter to the HI and LO connectors of the DMM.

  • Page 16: Adjusting Passband Flatness

    DC voltage adjustment is only required on one channel of the two-channel PXIe-5423. Adjusting Passband Flatness Complete one of the following procedures depending on the channel count of the PXIe-5423 you are adjusting: • Adjusting Passband Flatness of a One-Channel PXIe-5423 •...
  • Page 17 Measured Power (dBm): Power of the waveform present on CH 0 of the PXIe-5423 and measured by the power sensor in the previous step in dBm 10. If the Next Configuration output of niFgen ni5433 Flatness Cal Configure obtained in step 5 returns CH 0, repeat steps 5 through 9.

  • Page 18: Reverification

    PXIe-5423. Note If any test fails reverification after performing an adjustment, verify that you have met the test conditions before returning your PXIe-5423 to NI. Refer to the Services section for information about support resources or service requests. Setting the Calibration Date and Due Date...
  • Page 19 NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI. NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. PXIe-5423 Calibration Procedure | © National Instruments Corporation | 19...
  • Page 20 NI trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the file on your media, or the National Instruments Patent Notice at . You can find patents.txt ni.com/patents...
