E T C I n s t a l l a t i o n G u i d e

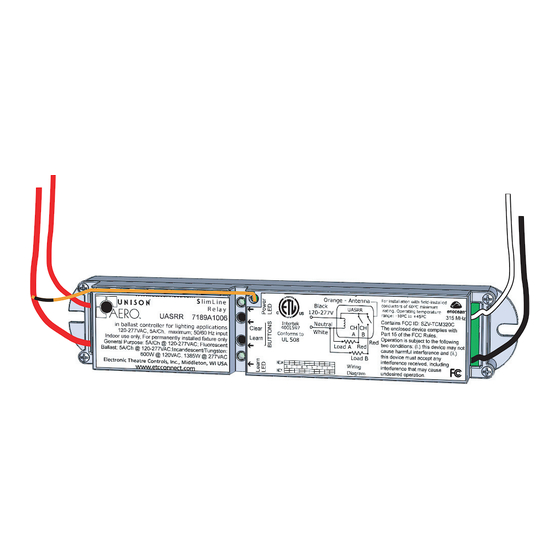

Unison Aero Slimline Dual Relay Controller
Overview
The Unison Aero Slimline Dual Relay Controller (UASRR) controls lighting loads, including
bi-level switching fluorescent ballasts, when a received input from a linked sensor or switch is
changed.
As a lighting controller, the UASRR controls lights based on the following:
• switch actions from Unison Aero Wireless SmartClick station
• ambient light levels as monitored by Unison Aero Wireless light sensors
• occupancy state as monitored by Unison Aero Wireless occupancy sensors
• input from another Unison Aero Wireless device
Placement and Radio Range
The UASRR is intended for use with Unison Aero sensors and stations. Consideration should be
made for locating the controllers based on the construction materials and furniture that may
disrupt transmissions. Fire doors, elevator shafts, stairwells, storage areas and any large metal
objects can create radio shadows and disrupt wireless transmissions.
