- Page 1 Ruijie Reyee RG-ES110GS-P-L Switch Hardware Installation and Reference Guide Document Version: V1.0 Date: 2024-03-24 Copyright © 2024 Ruijie Networks...
- Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder...
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support The official website of Ruijie Reyee: https://reyee.ruijie.com Technical Support Website: https://reyee.ruijie.com/en-global/support Case Portal: https://www.ruijienetworks.com/support/caseportal Community: https://community.ruijienetworks.com... - Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
-
Page 5: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 Package Contents........................1 1.2 Appearance ..........................1 1.2.1 Front Panel ........................2 1.2.2 Rear Panel ........................4 1.3 Technical Specifications ......................4 1.4 Cooling ............................5 2 Preparing for Installation ........................6 2.1 Safety Precautions ........................ - Page 6 2.2.9 Installation Site Requirements ..................10 2.3 Tools ............................10 3 Installing the Switch ........................11 3.1 Before You Begin ........................11 3.2 Precautions ..........................11 3.3 Mounting the Switch ........................ 11 3.3.1 Mounting the Switch on a Wall ..................11 3.3.2 Mounting the Switch on a Workbench .................
-
Page 7: Product Overview

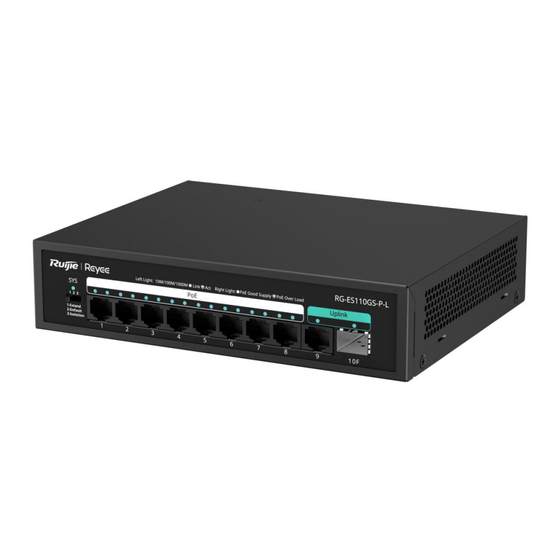

Hardware Installation and Reference Guide Product Overview Product Overview The RG-ES110GS-P-L switch is a 1000 Mbps Ethernet PoE switch featuring nine 1000 Mbps ports with auto- negotiation and one 1000 Mbps SFP port with line-rate forwarding performance. As the eight ports are PoE- capable and are backward compatible with the IEEE802.3at standard, the RG-ES110GS-P-L switch can automatically detect and supply power to devices compliant with IEEE802.3at/af standards through Ethernet cables. -
Page 8: Front Panel
Hardware Installation and Reference Guide Product Overview Figure 1-1 Appearance of a RG-ES110GS-P-L Switch 1.2.1 Front Panel Figure 1-2 Front Panel of a RG-ES110GS-P-L Switch Figure 1-3 Front Panel Components Component Description Off: The device is not powered on. System LED Solid on: The device is powered on. - Page 9 Hardware Installation and Reference Guide Product Overview Component Description The DIP switch is used to adjust the switch's working mode. Default mode: All ports can communicate with each other. Extend mode: The rate of ports 1 to 8 is reduced to 10 Mbps. Typically, the transmission distance is 200 m (656.17 ft), which is up to 250 m (820.21 ft) in the laboratory environment with Cat5e DIP switch...
-
Page 10: Rear Panel
Hardware Installation and Reference Guide Product Overview 1.2.2 Rear Panel Figure 1-4 Rear Panel of a RG-ES110GS-P-L Switch Figure 1-5 Rear Panel Components Component Description Connect the AC power cord to the AC power connector to supply power to AC power connector the switch. -
Page 11: Cooling
Hardware Installation and Reference Guide Product Overview Maximum PoE+ output power per port: 30 W Maximum PoE/PoE+ output power per device: 120 W Power Cable Mode A (1-2, 3-6 pairs) Pairs Maximum Power 120 W (full PoE load) Consumption 10 W (no PoE load) Default mode: All ports can communicate with each other. -
Page 12: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note To avoid bodily injury and device damage, please carefully read the safety precautions before you install the device. The following safety precautions may not cover all possible dangers. 2.1.1 General Safety Precautions ... -
Page 13: Esd Safety
Hardware Installation and Reference Guide Preparing for Installation maximum leakage current of all the power supplies in the system. For example, if a system is equipped with 16 identical power supplies, and the leakage current of each power supply is equal to or less than 3.5 mA, then the leakage current of the system totals 56 mA. -
Page 14: Temperature And Humidity Requirements
Hardware Installation and Reference Guide Preparing for Installation 2.2.4 Temperature and Humidity Requirements For optimal device performance and extended service life, it is essential to maintain suitable temperature and humidity conditions in the equipment room. Prolonged exposure to excessively high or low temperature and humidity can potentially cause damage to the device. -
Page 15: Grounding Requirements
Hardware Installation and Reference Guide Preparing for Installation Average (mg/m Maximum (mg/m Nitrogen dioxide (NO Chlorine gas (CI Note "Average" indicates the typical level of exposure over a one-week period, while "Maximum" refers to the highest allowable exposure level within a week, with this level being sustainable for no more than 30 minutes per day. -
Page 16: Anti-Interference Requirements
Hardware Installation and Reference Guide Preparing for Installation 2.2.7 Anti-interference Requirements Take interference prevention measures for the power supply system. Keep the device away from the grounding equipment or lightning and grounding equipment of the power device as much as possible. ... -
Page 17: Installing The Switch
Hardware Installation and Reference Guide Installing the Switch Installing the Switch Caution Before installing the switch, carefully read Chapter 2 and make sure that all the requirements in Chapter 2 are met. Before You Begin The installation site provides sufficient space for heat dissipation. ... -
Page 18: Mounting The Switch On A Workbench
Hardware Installation and Reference Guide Installing the Switch The installation steps are as follows: (1) Take out two expansion anchors and two screws from the package. (2) Drill two holes on the wall at the same height, with a spacing of 120 mm (4.72 in). Insert one expansion anchor into each hole, and drive one screw into each expansion anchor. -
Page 19: Grounding The Switch
Hardware Installation and Reference Guide Installing the Switch Figure 3-2 Mounting the Switch on a Workbench Grounding the Switch Connect the grounding wire to the grounding stud on the rear panel of the switch. Note The grounding wire is not delivered with the switch, and needs to be purchased separately. 3.4.1 Connecting the Power Cord Warning... -
Page 20: Verifying Operating Status
Hardware Installation and Reference Guide Verifying Operating Status Verifying Operating Status Powering on the Switch 4.1.1 Checklist before Power-on Verify that the switch is properly grounded. Verify that the power cord is properly connected. Verify that the power supply voltage meets the requirement. ... -
Page 21: Appendix
Hardware Installation and Reference Guide Appendix Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T Ports A 1000BASE-T/100BASE-TX/10BASE-T port is a 10/100/1000 Mbps Ethernet port that supports auto MDI/MDIX. Compliant with the IEEE 802.3ab standard, a 1000BASE-T port requires Category 5 100-ohm UTP or Category 5e UTP/STP (STP is recommended) cables with a maximum distance of 100 meters (328 ft.). -
Page 22: Lightning Protection
Hardware Installation and Reference Guide Appendix Figure 5-3 100BASE-TX/10BASE-T Connection Lightning Protection 5.2.1 Installing the AC Power Arrester The AC power connector must be connected to an external lightning protection power strip to prevent the switch from being struck by lightning when the AC power cord is introduced from the outdoor and directly connected to the power connector of the switch. -
Page 23: Installing The Ethernet Port Arrester
Hardware Installation and Reference Guide Appendix power strip), lightning protection function is effective when the RUN LED is Green and the ALARM LED is OFF. If the ALARM LED on the power arrester is Red, check whether it is caused by poor grounding connection or by the reversed connection of the Null and Live lines. - Page 24 Hardware Installation and Reference Guide Appendix Figure 5-5 Installing the Ethernet Port Arrester Caution The Ethernet port arrester is only for the 10/100 Mbps Ethernet ports with an RJ-45 connector. The Ethernet port arrester is not delivered with the switch, and needs to be purchased separately based on actual requirements.
