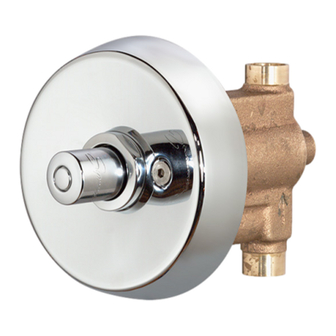

Symmons Showeroff 4-420-HV Install Manual

Showeroff Shower Valve System
4-420-HV, 4-420-HV-L On-Off Control Conversion
Install Guide
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
Installation
Parts Assembly
Cross handle assembly
p/n LN-177-KIT-HP
For Units Bought on or After
12/22/23.
Cross handle assembly
p/n NS-01288
For Units Bought Up to 12/21/23.
Wrist blade handle
assembly, p/n NS-01290
Symmons Industries, Inc.
Copyright © 2024 Symmons Industries, Inc.
Showeroff Shower Valve System, 4-420-HV Series
On-O Control Conversion
Escutcheon kit
p/n 4-420-TRM
■ ■
31 Brooks Drive Braintree, MA 02184
■
symmons.com
Product Care
Clean finished trim area with a soft cloth using mild
soap and water or a non-abrasive cleaner and then
quickly rinse with water.
Tools Required
Plumbers
Putty
Valve body
■
Phone: (800) 796-6667
■ ■
gethelp@symmons.com
4-420-HV 4-420-HV-L
OUTLET
1/2" copper
connections
INLET
Water shut-off
for servicing valve
Water shut-off stop
p/n T-52-A
Retainer
p/n NS-32-MCH
Cartridge
p/n NS-01301
■
Fax: (800) 961-9621
■
ZV-789 REV B 061424
