44-458-TRM, 44-460-TRM
Carrington
Diverter Trim Series
™
Operation & Maintenance Manual
Model Numbers
44-458-TRM
44-460-TRM
Modifications
-STN
Satin nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
A A
Note: Dimensions are subject to change without notice.
Symmons Industries, Inc.
1
©2014 Symmons Industries, Inc.

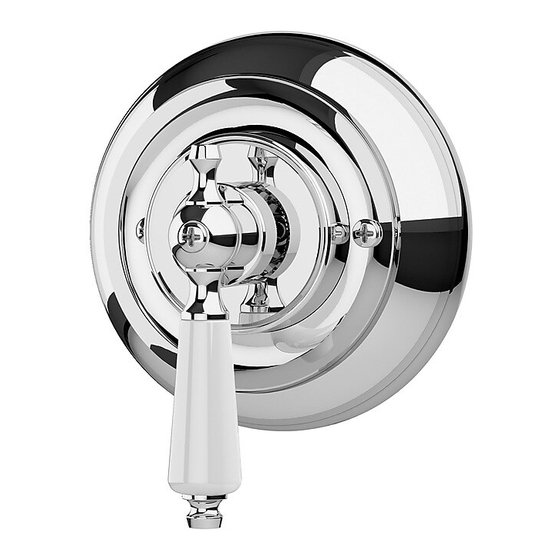

Carrington Dual Outlet Diverter Trim
Carrington Triple Outlet Diverter Trim
B B
C C
■
31 Brooks Drive
■
www.symmons.com
Specifications
Dual and triple outlet diverter trim made from metal and
plastic materials plated in standard polished chrome
finish.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
A
B
C
■
■
Braintree, MA 02184
(800)796-6667
■
gethelp@symmons.com
Measurements
Ø 4 1/2", 114 mm
3 1/8", 79 mm
2 1/4", 57 mm
■
Fax: (800)961-9621
■
ZV-3036 REV 0 02/19/2014
c
