- Page 1 AirLive XGSPON OLT-2XGS Quick Installation Guide V1.0...

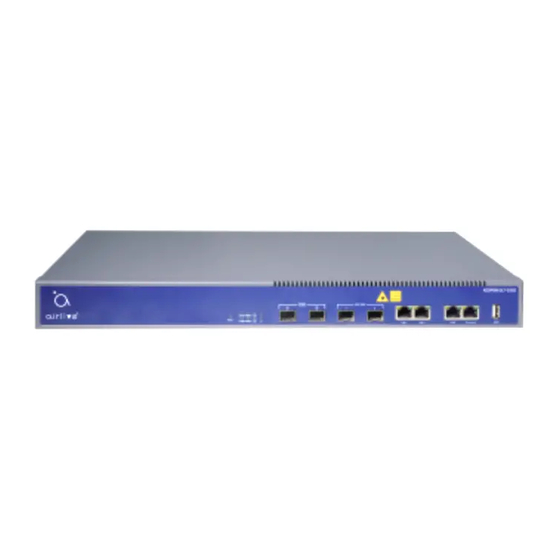

- Page 2 1. Indicator and Interface Description 1.1 Product Picture Figure 1. XGSPON OLT-2XGS 1.2 Application Chart Figure 2. Application Chart (not all ONU’s work with OLT-2XGS 1.3 Panel Lights Figure 3. Panel Lights...
- Page 3 Mark Status Description On / Off System is booting or halt. System Blink System is running normally. Device is Powered up. Power PWR1-2 Device is Powered down. USB device is connected. USB device is not connected. At least one ONU has registered to this PON port. Registration PON1-2 No ONU registered to this PON port.
- Page 4 2. Packing List Contents Quantity Contents Quantity 1 pcs Power cable 1 pcs OLT-2XGS Installation Guide 1 pcs Ground wire 1 pcs 3. Hardware Installation Installation Environment Requirements OLT device must be installed indoors and ensure the following conditions: ⚫ Confirm that there is sufficient space for OLT installation to facilitate cooling the device. ⚫...
