VICTRIX PRO V2 EU
24.4
To calculate the length of the flue, simply add the corresponding "length equivalent to 1 m of pipe" value for each component
to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical
documentation supplied with each "Use and maintenance booklet".
The maximum length that can be travelled"L" are displayed in the summary tables on pages 88 and 89.
SEPARATOR KIT
Ø 80/80 - CODE: 3.012002
Models:
VICTRIX PRO V2 35 EU
VICTRIX PRO V2 55 EU
VICTRIX PRO V2 60 EU
VICTRIX PRO V2 68 EU
VICTRIX PRO V2 80 EU
110
170

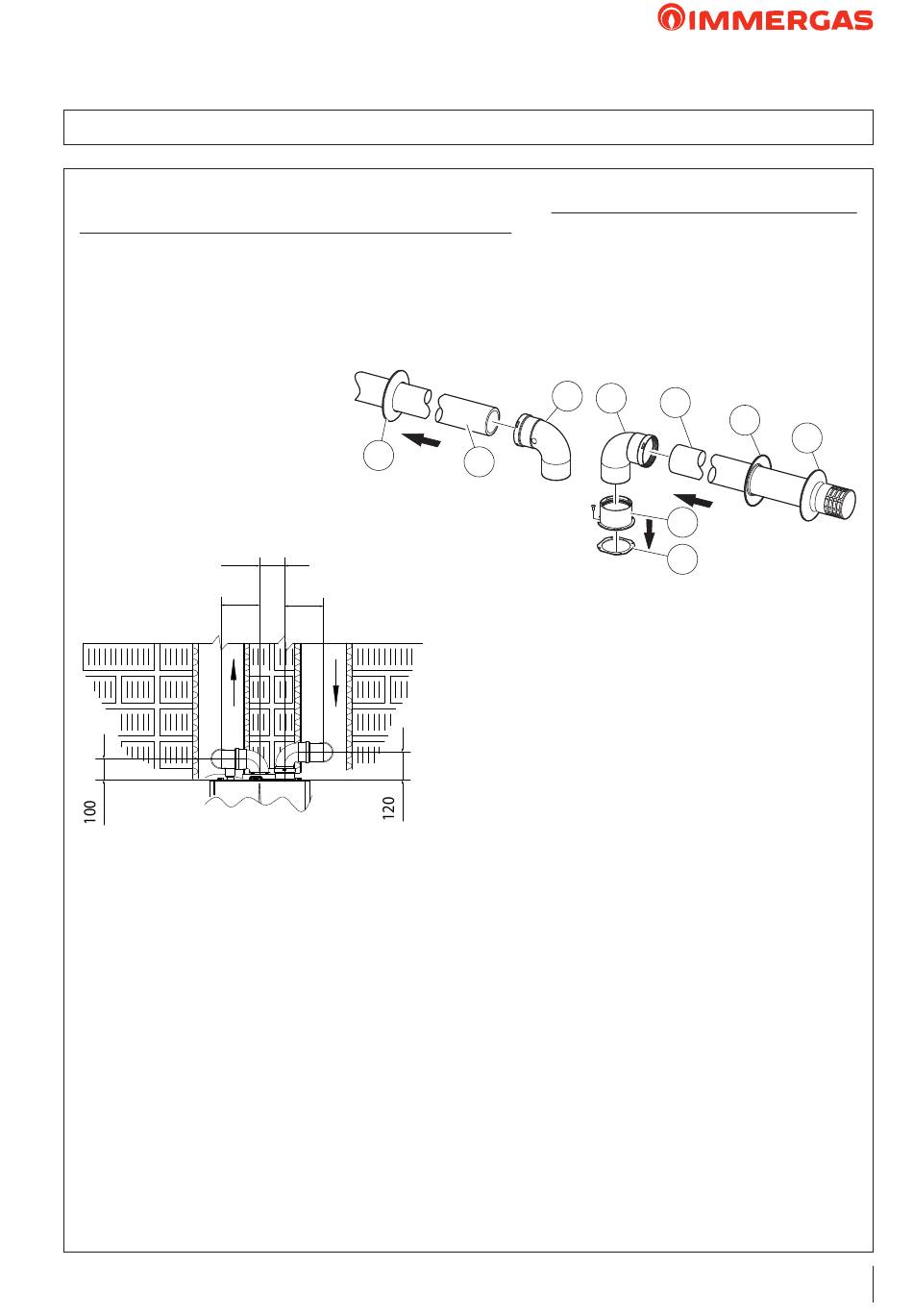

HORIZONTAL SEPARATOR KIT
S
5
170
3
3
7
Key:
1 - n. 1 Intake gasket
2 - n. 1 Flanged stub pipe
3 - n. 2 90° bends Ø 80
4 - n. 1 Intake terminal Ø 80
5 - n. 2 internal silicone wall sealing plates
6 - n. 1 external silicone wall sealing plate
7 - n. 1 Drain pipe Ø 80
4
5
6
A
2
1
