Immergas VICTRIX PRO V2 EU Manual
  1. Manuals
  2. Brands
  3. Immergas Manuals
  4. Boiler
  5. VICTRIX PRO V2 EU
  6. Manual

Immergas VICTRIX PRO V2 EU Manual

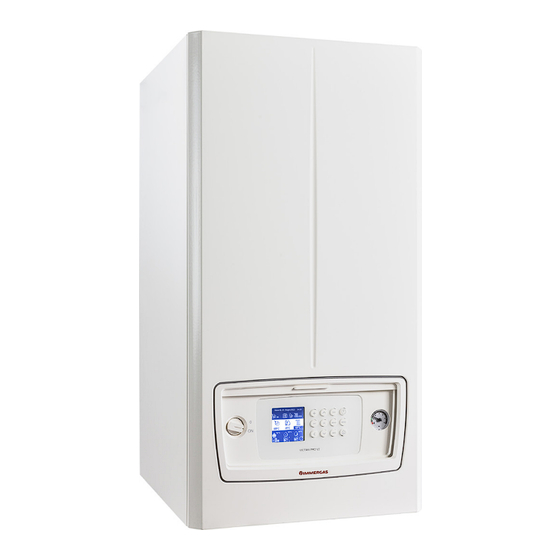

High power, wall-hung condensation boilers
Hide thumbs

Advertisement

Quick Links

Download this manual
VICTRIX PRO V2 EU
High power, wall-hung
condensation boilers

Advertisement

loading
Need help?

Need help?

Do you have a question about the VICTRIX PRO V2 EU and is the answer not in the manual?

Questions and answers

Related Manuals for Immergas VICTRIX PRO V2 EU

Summary of Contents for Immergas VICTRIX PRO V2 EU

  • Page 1 VICTRIX PRO V2 EU High power, wall-hung condensation boilers...
  • Page 2 VICTRIX PRO V2 EU VICTRIX PRO V2 EU VICTRIX PRO V2 EU is the new range of wall-hung condensing Immergas 300, 500, 1000, 1500 and 2000 litre storage tank boilers for room heating only, set-up for independent function- unit). ing and for set configuration (up to 5 appliances with a single...
  • Page 3 VICTRIX PRO V2 EU NEW HIGH-POWER RANGE SPECIFICATIONS The updated VICTRIX PRO V2 EU range, today available in 9 - Installation in technical cabinet (except for model VICTRIX output sizes (35 - 55 - 60 - 68 - 80 - 100 - 120 - 150 - 180) instead PRO V2 180 EU);...
  • Page 4 "free standing" mode, which can be used to install one or • total pre-mixing combustion system with steel multigas more VICTRIX PRO V2 EU units. The frame is also suitable cylindrical burner, complete with ignition electrodes and for outdoor open-air installation;...
  • Page 5 "free standing" mode, which can be used to install one or • total pre-mixing combustion system with steel multigas more VICTRIX PRO V2 EU units. The frame is also suitable cylindrical burner, complete with ignition electrodes and for outdoor open-air installation;...
  • Page 6 ) - Specific optional intake stub pipe kit required. "free standing" mode, which can be used to install one or The module consists of: more VICTRIX PRO V2 EU units. The frame is also suitable • total pre-mixing combustion system with steel multigas for outdoor open-air installation;...
  • Page 7 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU MAIN DIMENSIONS Model Height mm Width mm Depth mm VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 851 (985) Cover upper line SC = Condensate drain Ø...
  • Page 8 VICTRIX PRO V2 100 - 120 - 150 EU VICTRIX PRO V2 100 - 120 EU MAIN DIMENSIONS Model Height mm Width mm Depth mm VICTRIX PRO V2 100 - 120 EU 1098 (1232) Cover upper line SC = Condensate drain Ø 25 mm Model System flow System return...
  • Page 9 VICTRIX PRO V2 100 - 120 - 150 EU VICTRIX PRO V2 150 EU MAIN DIMENSIONS Model Height mm Width mm Depth mm VICTRIX PRO V2 150 EU 1098 (1232) Cover upper line SC = Condensate drain Ø 25 mm Model System flow System return...
  • Page 10 VICTRIX PRO V2 180 EU VICTRIX PRO V2 180 EU MAIN DIMENSIONS Model Height mm Width mm Depth mm VICTRIX PRO V2 180 EU 1098 (1232) Cover upper line SC = Condensate drain Ø 25 mm Model System flow System return Gas Supply VICTRIX PRO V2 180 EU 1"...
  • Page 11 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU COMPONENTS KEY: Concentric intake cap Ø 125 P.C.B. Intake closing cap 80 Ø High power connection board Flange with sample points Low power connection board Flue probe...
  • Page 12 VICTRIX PRO V2 100 - 120 - 150 EU VICTRIX PRO V2 100 - 120 EU COMPONENTS KEY: Gas cock Concentric intake cap Ø 160 Draining funnel Sample points (air A) - (flue gases F) 5.4 bar safety valve Flange connection module-flue hood Condensate siphon Igniter Pump...
  • Page 13 VICTRIX PRO V2 100 - 120 - 150 EU VICTRIX V2 PRO 150 EU COMPONENTS KEY: Concentric intake cap Ø 160 Draining funnel Sample points (air A) - (flue gases F) Gas cock Flue probe with thermofuse 5.4 bar safety valve Igniter Condensate siphon Combustion group...
  • Page 14 VICTRIX PRO V2 180 EU VICTRIX PRO V2 180 EU COMPONENTS KEY: Draining funnel Intake closing cap 160 Ø Gas cock Flange connection module-flue hood 5.4 bar safety valve Igniter Condensate siphon Ignition glow plug P.C.B. Combustion group Detection electrode Pump Venturi Overheating safety thermostat...
  • Page 15 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU HYDRAULIC DIAGRAM 17 18 KEY: 18 - Flue sample point - Draining funnel on view - Boiler draining cock 19 - Safety thermostat (manual reset) - 4 bar safety valve...
  • Page 16 VICTRIX PRO V2 100 - 120 - 150 EU VICTRIX PRO V2 100 - 120 - 150 EU HYDRAULIC DIAGRAM 13 14 KEY: 18 - Overheating safety thermostat - Draining funnel on view - Boiler draining cock 19 - Safety thermostat (manual reset) - 5.4 bar safety valve 20 - Flue probe with thermofuse - Flow manifold...
  • Page 17 VICTRIX PRO V2 180 EU VICTRIX PRO V2 180 EU HYDRAULIC DIAGRAM KEY: Overheating safety thermostat Draining funnel on view 5.4 bar safety valve Safety thermostat (manual reset) Flue probe with thermofuse Flow manifold Ignition electrode Pressure transducer Device draining cock Heat exchanger safety thermofuse Manifold cover Gas valve...
  • Page 18 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 EU PUMP HEAD FLOW RATE GRAPH The entire range of VICTRIX PRO V2 EU generators is sup- 100% and minimum speed 50 % (parameters preconfigured plied with a single-phase pump (230 V - 50 Hz) with variable on VICTRIX PRO V2 100 - 120 - 150 - 180 EU).
  • Page 19 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 55 EU PUMP GRUNDOFOS UPM 4L 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 EEI ≤ 0,23 Part 3 VICTRIX PRO V2 60 - 68 - 80 EU PUMP GRUNDOFOS UPM XL EEI ≤...
  • Page 20 VICTRIX PRO V2 100 - 120 - 150 EU VICTRIX PRO V2 100 EU PUMP GRUNDOFOS UPM XL 1000 1500 2000 2500 3000 3500 4000 4500 5000 EEI ≤ 0,23 Part 3 VICTRIX PRO V2 120 EU PUMP GRUNDOFOS UPM XL 1000 1500 2000...
  • Page 21 VICTRIX PRO V2 100 - 120 - 150 - 180 EU VICTRIX PRO V2 150 EU PUMP WILO STRATOS PARA C 1000 2000 3000 4000 5000 6000 7000 8000 EEI ≤ 0,23 Part 3 VICTRIX PRO V2 180 EU PUMP WILO STRATOS PARA C 1000 2000...
  • Page 22 - for all systems, it is necessary to provide chemical condition- ing. For systems of > 350 kW it is necessary to install a safety Immergas S.p.A. reminds you that all types of systems require filter (recommended in any case) and, if the water has a total...
  • Page 23 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU HYDRAULIC KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) WITH VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU SINGLE BOILER...
  • Page 24 VICTRIX PRO V2 100 - 120 - 150 EU HYDRAULIC KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) WITH VICTRIX PRO V2 100 - 120 - 150 EU SINGLE BOILER...
  • Page 25 VICTRIX PRO V2 180 EU HYDRAULIC KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) WITH VICTRIX PRO V2 180 EU SINGLE BOILER G 1/2" G 3/4" G 3/4" G 1 1/2" G 1" G 1" G 2 1/2"...
  • Page 26 4 bar Safety valve for VICTRIX PRO V2 35 - 55 Immergas S.p.a. declines all liability whenever the installer does - 60 - 68 - 80 EU boilers and 5,4 bar for VICTRIX PRO V2 not use the devices and INAIL-approved Immergas original kits 100 - 120 - 150 and 180 EU boilers.
  • Page 27 VICTRIX PRO V2 EU THREE-WAY VALVE KIT FOR COMBINATION WITH VICTRIX PRO V2 EU SEPARATE STORAGE TANK UNIT The kit is sized for single boiler operation or in combination any pre-installed temperature probe from the storage tank unit. with a separate boiler for DHW production. The output of the...

  • Page 28: Single Boiler

    VICTRIX PRO V2 EU HYDRAULIC SEPARATOR KIT FOR VICTRIX PRO V2 EU SINGLE BOILER The hydraulic separator (compensator) is a particularly sig- The brass sludge collecting filter, with relative inspectable stain- nificant part inside the hydraulic circuits. less steel cartridge, protects the condensation module from It is an open manifold (2) which places system flow and re- getting clogged with the sludge or build-up from the system.
  • Page 29 VICTRIX PRO V2 EU PLATE HEAT EXCHANGER KIT FOR VICTRIX PRO V2 EU SINGLE BOILER Plate heat exchangers, important components of thermal ature difference so as to exchange the output actually necessary. systems and hydraulic circuits, consist of a series of plates...
  • Page 30 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 12.1 DIMENSIONS AND INSTALLATION OF RH PLATE EXCHANGER KIT FOR VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU SINGLE BOILER (CODE: 3.033676) KEY: - 2 Gaskets 18.5x11.5x2 AFM 34/2 - 4 Gaskets 38X28X2 mm in Fasit Soft...
  • Page 31 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 12.2 PLATE HEAT EXCHANGER KIT FOR VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU SINGLE BOILER TECHNICAL DATA (CODE: 3.033676) WATER VOLUMES IN KIT COUPLED WITH: Model Primary circuit litre content Expansion vessel capacity (litres)
  • Page 32 VICTRIX PRO V2 100 - 120 - 150 -180 EU 12.3 DIMENSIONS AND INSTALLATION OF RH PLATE EXCHANGER KIT FOR VICTRIX PRO V2 100 - 120 - 150 - 180 EU SINGLE BOILER (CODE: 3.033677) KEY: - 2 Gaskets 18.5x11.5x2 AFM 34/2 - 4 Gaskets 38X28X2 mm in Fasit Soft RG - 8 Gaskets 44X34X2 mm in Fasit Soft RG - Plate heat exchanger threaded connec-...
  • Page 33 VICTRIX PRO V2 100 - 120 - 150 - 180 EU 12.4 PLATE HEAT EXCHANGER KIT TECHNICAL DATA FOR VICTRIX PRO V2 100 - 120 - 150 - 180 EU SINGLE BOILER (CODE: 3.033677) WATER VOLUMES IN KIT COUPLED WITH: Model Primary circuit litre content Expansion vessel capacity (litres)
  • Page 34 VICTRIX PRO V2 EU SLUDGE REMOVER KIT FOR VICTRIX PRO V2 EU SINGLE INSTALLATION (CODE: 3.033673) Among the wide range of optionals for new VICTRIX PRO efficient. V2 EU generators, Immergas also offers the sludge remover It is advisable to insert the sludge remover kit whenever a new kit for single installation.
  • Page 35 VICTRIX PRO V2 EU 13.1 DIMENSIONS AND CONNECTIONS RH/LH SLUDGE REMOVER KIT FOR VICTRIX PRO V2 EU SINGLE INSTALLATION (CODE: 3.033673) 1050...
  • Page 36 VICTRIX PRO V2 EU 13.2 INSTALLATION OF RH/LH SLUDGE REMOVER KIT FOR VICTRIX PRO V2 EU SINGLE INSTALLATION (CODE: 3.033673) LEFT OUTLET KEY: - 6 Gaskets 44x34x2 - Set kit flow pipe - 2 Brass nipples G1 1/2 G2 mm...

  • Page 37: Installation

    VICTRIX PRO V2 EU OUTDOOR VICTRIX PRO V2 EU CABINET KIT (CODE: 3.033680) Main features. The outdoor cabinet kit is supplied for installation and can This is a solution suitable for many applications: contain a generator of the VICTRIX PRO V2 range, with the - heating control unit on the roof of the building;...
  • Page 38 VICTRIX PRO V2 EU 14.1 OUTDOOR VICTRIX PRO V2 EU CABINET KIT MAIN DIMENSIONS KEY: V - Electrical connection G - Gas supply - System return M - System flow SC - Condensate drain Main dimensions (mm) Height with Width...
  • Page 39 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 14.2 DIMENSIONS CABINET KIT + SINGLE VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU Ref. Position Code KIT Quantity 3.033681 N° 1 3.024295 N°...
  • Page 40 VICTRIX PRO V2 100 - 120 - 150 EU 14.3 DIMENSIONS CABINET KIT + SINGLE VICTRIX PRO V2 100 - 120 - 150 EU Ref. Position Code KIT Quantity 3.033681 N° 1 3.032714 N° 1...
  • Page 41 VICTRIX PRO V2 EU 14.4 DIMENSIONS 2 CABINET KIT ALONGSIDE VICTRIX PRO V2 EU IN MIXED OR HOMOGENEOUS SET Technical note: Having the flue exhaust separated and a Ref. Position Code KIT Quantity INAIL safety devices kit for each generator, you can also make mixed sets with VICTRIX 3.033681...
  • Page 42 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU ADAPTER KIT TO REPLACE FIRST RANGE OF WALL-HUNG BOILERS IN SINGLE CONFIGURATION (CODE: 3.023966) Accordingly, it is possible to install VICTRIX PRO V2 35 - This kit is composed of just two gaskets 44x34x2 (1) and two 55 - 60 - 68 - 80 EU models in place of the models from the...
  • Page 43 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) FOR VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU MODULES IN SET CONFIGURATION (MAXIMUM 5 APPLIANCES) 2000 G 1 1/2"...
  • Page 44 VICTRIX PRO V2 100 - 120 - 150 EU 16.1 KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) FOR VICTRIX PRO V2 100 - 120 EU MODULES IN SET CONFIGURATION (MAXIMUM 5 APPLIANCES) 2000 G 1 1/2" G 1 1/2" Reference 2 boilers 3 boilers 4 boilers 5 boilers...
  • Page 45 VICTRIX PRO V2 100 - 120 - 150 EU 16.2 KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) FOR VICTRIX PRO V2 150 EU MODULES IN SET CONFIGURATION (MAXIMUM 5 APPLIANCES) 2000 G 1 1/2" G 1 1/2" Reference 2 boilers 3 boilers 4 boilers 5 boilers 1782 mm...
  • Page 46 3.034938 3.034939 Technical note In this configuration, for VICTRIX PRO V2 180 EU modules in cascade, Immergas does not supply either flue manifolds or clapet valves. Hydraulic manifolds (optional) are equipped with non return valve and 3-way valve on the flow pipe of each thermal module and 2-way shut off valve on the return pipe to the thermal module.
  • Page 47 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU INSTALLATION OF HYDRAULIC MANIFOLD KIT (OPTIONAL) AT RH/LH IN SET CONFIGURATION VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU G2"1/2 G2"1/2 KEY: 8 - Insulated 90°...
  • Page 48 VICTRIX PRO V2 100 - 120 - 150 -180 EU 17.1 INSTALLATION OF HYDRAULIC MANIFOLD KIT (OPTIONAL) AT RH/LH IN SET CONFIGURATION VICTRIX PRO V2 100 - 120 - 150 - 180 EU DN100 KEY: 1 - Thermal modules in set configuration 8 - Insulated 90°...
  • Page 49 ''R'' collection. modules set up by the manufacturer to operate in cascade For INAIL design purposes, by installing the Immergas safety (set) with an original Immergas hydraulic manifold kit, must Immergas, there are already the following type-approved...
  • Page 50 ''R'' collection. modules set up by the manufacturer to operate in cascade For INAIL design purposes, by installing the Immergas safety (set) with an original Immergas hydraulic manifold kit, must Immergas, there are already the following type-approved...
  • Page 51 VICTRIX PRO V2 EU 19 HYDRAULIC SEPARATOR KIT FOR MODULES IN SET CONFIGURATION(OPTIONAL) The hydraulic separator, also called compensator, is an open perature difference (therefore with the right water flow rate) manifold (1) with puts the flow lines and return lines of 2 so as to exchange the output necessary.
  • Page 52 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 19.1 HYDRAULIC SEPARATOR KIT FOR MODULES UP TO 100 kW G 2 1/2" THREADED CONNECTIONS (CODE: 3.020839) KEY: - Air vent valve - Shut-off cock - Probe fitting (not supplied) - Hydraulic separator (12 litre capacity) - Draining cock...
  • Page 53 VICTRIX PRO V2 EU 19.3 HYDRAULIC SEPARATOR KIT FOR MODULES IN SET CONFIGURATION UP TO 350 kW FLANGED CONNECTIONS DN 100 (CODE: 3.023965) KEY: - Air vent valve - Shut-off cock - Probe fitting (not supplied) - Hydraulic separator (42 litre...
  • Page 54 VICTRIX PRO V2 100 - 120 - 150 -180 EU 19.5 HYDRAULIC SEPARATOR KIT FOR MODULES IN SET CONFIGURATION UP TO 600 kW FLANGED CONNECTIONS DN 100 (CODE: 3.023962) KEY: - Air vent valve - Shut-off cock - Probe fitting (not supplied) - Hydraulic separator (85 litre capacity) - Draining cock...
  • Page 55 VICTRIX PRO V2 EU PLATE HEAT CONVEYOR KIT FOR MODULES IN SET CONFIGURATION (OPTIONAL) Plate heat conveyors are important components of thermal while there are one or more pumps in the secondary circuit systems and hydraulic circuits. which, based on the system design, provide the correct tem-...
  • Page 56 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 20.1 INSTALLATION OF RH/LH PLATE HEAT EXCHANGER KIT ON VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU MODULES IN SET CONFIGURATION (CODE: 3.033678) LEFT OUTLET KEY: - Automatic air vent valve 1/2"...
  • Page 57 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 20.2 PLATE HEAT EXCHANGER KIT ON VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU MODULES IN SET INSTALLATION TECHNICAL DATA (CODE: 3.033678) WATER VOLUMES IN KIT COUPLED WITH: Model Primary circuit litre...
  • Page 58 VICTRIX PRO V2 100 - 120 - 150 -180 EU 20.3 INSTALLATION OF RH/LH PLATE HEAT EXCHANGER KIT ON VICTRIX PRO V2 100 - 120 - 150 - 180 EU MODULES IN SET CONFIGURATION (CODE: 3.033679) LEFT OUTLET KEY: 10 - Heat exchanger supporting bracket - 4 HH screws 8x80 11 - 4 Gaskets 75x55x2 mm in Fasit Soft RG - 4 Plugs 12x60...
  • Page 59 VICTRIX PRO V2 100 - 120 - 150 - 180 EU 20.4 PLATE HEAT EXCHANGER KIT ON VICTRIX PRO V2 100 - 120 - 150 - 180 EU MODULES IN SET INSTALLATION TECHNICAL DATA (CODE: 3.033679) WATER VOLUMES IN KIT COUPLED WITH: Model Primary circuit litre Expansion vessel capacity...
  • Page 60 VICTRIX PRO V2 100 - 120 - 150 -180 EU TECHNICAL DATA Plate heat ex- Maximum Flow rate Flow rate Δp (m.w.c.) Weight changer coupled plates managed Primary Secondary of heat Primary Secondary with power exchanger circuit circuit VICTRIX PRO (kW) M/R 80°/65°...
  • Page 61 FOR VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU IN SET INSTALLATION (CODE: 3.033678) No. of Boilers without INAIL safety devices kit N°2 VICTRIX PRO V2 EU 1531 + (511 kit INAIL) N°3 VICTRIX PRO V2 EU...
  • Page 62 DIMENSIONS AND CONNECTIONS WITH RH/LH PLATE HEAT EXCHANGER KIT FOR VICTRIX PRO V2 100 - 120 - 150 EU IN SET INSTALLATION (CODE: 3.033679) 1405 No. of Boilers N°2 VICTRIX PRO V2 EU 2678 1220 N°3 VICTRIX PRO V2 EU 3298 1840 N°4 VICTRIX PRO V2 EU...
  • Page 63 20.7 DIMENSIONS AND CONNECTIONS WITH RH/LH PLATE HEAT EXCHANGER KIT FOR VICTRIX PRO V2 180 EU IN SET INSTALLATION (CODE: 3.033679) 1495 No. of Boilers N°2 VICTRIX PRO V2 EU 3045 1400 N°3 VICTRIX PRO V2 EU 3845 2200 N°4 VICTRIX PRO V2 EU...
  • Page 64 Among the wide range of optionals for new VICTRIX PRO It is advisable to insert the sludge remover kit whenever a new V2 EU generators, Immergas also offers sludge remover kits. generator is installed in an existing system, so as to prevent...
  • Page 65 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 21.1 INSTALLATION OF RH/LH SLUDGE REMOVER KIT ON VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU MODULES IN SET CONFIGURATION (CODE: 3.033674) LEFT OUTLET KEY: - Return manifold...
  • Page 66 VICTRIX PRO V2 100 - 120 - 150 -180 EU 21.2 INSTALLATION OF RH/LH SLUDGE REMOVER KIT ON VICTRIX PRO V2 100 - 120 - 150 - 180 EU MODULES IN SET CONFIGURATION (CODE: 3.033675) LEFT OUTLET KEY: - Magnetic sludge remover - 4 HH screws 8x80 - Return manifold - 4 Plugs 12x60...
  • Page 67 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU IN SET INSTALLATION (CODE: 3.033674) (UP TO A MAXIMUM OF FIVE APPLIANCES) 1302 No. of Boilers N°2 VICTRIX PRO V2 EU 2202 N°3 VICTRIX PRO V2 EU 2662 1360 N°4 VICTRIX PRO V2 EU...
  • Page 68 DIMENSIONS AND CONNECTIONS WITH RH/LH SLUDGE REMOVER KIT FOR VICTRIX PRO V2 100 - 120 - 150 EU IN SET INSTALLATION (CODE: 3.033675) (UP TO A MAXIMUM OF FIVE APPLIANCES) 1375 No. of Boilers N°2 VICTRIX PRO V2 EU 2595 1220 N°3 VICTRIX PRO V2 EU 3215 1840 N°4 VICTRIX PRO V2 EU...
  • Page 69 DIMENSIONS AND CONNECTIONS WITH RH/LH SLUDGE REMOVER KIT FOR VICTRIX PRO V2 180 E IN SET INSTALLATION (CODE: 3.033675) (UP TO A MAXIMUM OF FIVE APPLIANCES) 1465 No. of Boilers N°2 VICTRIX PRO V2 EU 2865 1400 N°3 VICTRIX PRO V2 EU 3665 2200 N°4 VICTRIX PRO V2 EU...
  • Page 70 VICTRIX PRO V2 EU "FREE STANDING" SUPPORTING FRAME KIT FOR VICTRIX PRO V2 EU The new VICTRIX PRO V2 EU range, except for the PRO PRO V2 100 - 120 - 150 EU models. The frames have support- V2 180 EU model, can be installed on a specific modular...
  • Page 71 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU DIMENSIONS AND CONNECTIONS (OPTIONAL) WITH VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU KIT WITH INSTALLATION ON SUPPORTING FRAME SET UP IN LINE (UP TO A MAXIMUM OF 5 APPLIANCES)
  • Page 72 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 23.1 KIT DIMENSIONS AND CONNECTIONS (OPTIONAL) VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 E WITH INSTALLATION ON SUPPORTING FRAME SET UP BACK-TO-BACK (UP TO A MAXIMUM OF 5 APPLIANCES IN LINE WITH SINGLE INAIL KIT)
  • Page 73 VICTRIX PRO V2 100 - 120 - 150 EU 23.2 DIMENSIONS AND CONNECTIONS WITH (OPTIONAL) VICTRIX PRO V2 100 - 120 - 150 EU KIT WITH INSTALLATION ON SUPPORTING FRAME SET UP IN LINE (UP TO A MAXIMUM OF 5 APPLIANCES)
  • Page 74 VICTRIX PRO V2 100 - 120 - 150 EU 23.3 DIMENSIONS AND CONNECTIONS WITH (OPTIONAL) VICTRIX PRO V2 100 - 120 EU KIT WITH INSTALLATION ON SUPPORTING FRAME SET UP BACK-TO-BACK (UP TO A MAXIMUM OF 5 APPLIANCES IN LINE WITH SINGLE INAIL KIT)
  • Page 75 VICTRIX PRO V2 100 - 120 - 150 EU 23.4 DIMENSIONS AND CONNECTIONS WITH (OPTIONAL) VICTRIX PRO V2 150 EU KIT WITH INSTALLATION ON SUPPORTING FRAME SET UP BACK-TO-BACK (UP TO A MAXIMUM OF 5 APPLIANCES IN LINE WITH SINGLE INAIL KIT)
  • Page 76 VICTRIX PRO V2 EU FLUE SYSTEMS AND CONFIGURATION VICTRIX PRO V2 EU boilers are type-approved for installa- By varying the type of installation the classification of the tion inside the heating control unit or outside in a sheltered boiler also varies: or uncovered area.
  • Page 77 VICTRIX PRO V2 EU 24.2 HORIZONTAL CONCENTRIC KIT To calculate the length of the flue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical documentation supplied with each “Use and maintenance booklet”.
  • Page 78 VICTRIX PRO V2 EU 24.3 VERTICAL CONCENTRIC KIT To calculate the length of the flue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical documentation supplied with each “Use and maintenance booklet”.
  • Page 79 VICTRIX PRO V2 EU 24.4 HORIZONTAL SEPARATOR KIT To calculate the length of the flue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical documentation supplied with each “Use and maintenance booklet”.
  • Page 80 VICTRIX PRO V2 EU SEPARATOR KIT Ø 100/100 - CODE: 3.032717 Models: VICTRIX PRO V2 100 EU VICTRIX PRO V2 120 EU VICTRIX PRO V2 150 EU Key: 1 - n. 1 Intake gasket 2 - n. 1 Flanged stub pipe 3 - n.
  • Page 81 VICTRIX PRO V2 EU 24.5 INSTALLATION OF THE INTAKE STUB PIPE KIT To be able to install the intake stub type kit for type B configurations (open chamber and fan assisted), the factory installed plug, placed above the sealed chamber next to the flue exhaust flange, must be removed (see image below).
  • Page 82 VICTRIX PRO V2 EU 24.6 VERTICAL EXHAUST KIT To calculate the length of the flue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical documentation supplied with each “Use and maintenance booklet”.
  • Page 83 VICTRIX PRO V2 EU FLUE GAS EXHAUST KIT Ø 100 CODE: 3.032713 CODE: 3.032714 in Stainless steel Models: VICTRIX PRO V2 100 EU VICTRIX PRO V2 120 EU VICTRIX PRO V2 150 EU Key: 1 - n. 1 reduction Ø 110 - Ø 100 2 - n.
  • Page 84 VICTRIX PRO V2 EU 24.7 HORIZONTAL WALL FLUE EXHAUST KIT To calculate the length of the flue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical documentation supplied with each “Use and maintenance booklet”.
  • Page 85 VICTRIX PRO V2 EU 24.8 HORIZONTAL CHIMNEY FLUE EXHAUST KIT To calculate the length of the flue, simply add the corresponding “length equivalent to 1 m of pipe” value for each component to be used until the maximum allowed length for each product is reached. These data are provided in the specific technical documentation supplied with each “Use and maintenance booklet”.
  • Page 86 VICTRIX PRO V2 EU FLUE EXHAUST KIT Ø 100 - CODE: 3.032715 Models: VICTRIX PRO V2 100 EU VICTRIX PRO V2 120 EU VICTRIX PRO V2 150 EU Key: 1 - n. 1 reduction Ø 110 - Ø 100 2 - n. 1 bend 90° Ø 100 3 - n.
  • Page 87 - the flue gas exhaust must be connected to a single chimney or ducted directly to the external atmosphere via a vertical ter- minal for direct exhaust (B ) or via an Immergas ducting system (B ) for the available models;...
  • Page 88 VICTRIX PRO V2 EU 24.10 FAN HEAD AND MAXIMUM LENGTHS The maximum head of the fan refers to the flue outlet above used until the maximum allowed length for each product is the generator. Dimensioning of a chimney/ducted pipe can reached.
  • Page 89 FLEXIBLE DUCTING SYSTEM Ø 80 (OPTIONAL) VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU The Immergas Ø 80 mm system for flexible ducting of existing chimneys is made up from a series of components, identified as individual kits, which can be assembled depending on the specific installation requirements.

  • Page 90: The Kit Includes

    VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU FLUE EXHAUST MANIFOLD KIT Ø 160 WITH VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU FLUE ADJUSTING DEVICE (CODE: 3.034257) THE KIT INCLUDES: 1 - 1st Ø...
  • Page 91 VICTRIX PRO V2 100 - 120 - 150 EU 25.2 FLUE EXHAUST MANIFOLD KIT Ø 200 WITH VICTRIX PRO V2 100 - 120 - 150 EU FLUE ADJUSTING DEVICE (CODE: 3.034259 THE KIT INCLUDES: 1 - 1st Ø 110-125 Module connection 2 - 2nd Ø...
  • Page 92 VICTRIX PRO V2 100 - 120 - 150 EU 25.4 FLUE EXHAUST MANIFOLD KIT Ø 250 WITH FLUE ADJUSTING DEVICES TO EXPAND 4 ICTRIX PRO V2 150 EU (CODE: 3.034261) THE KIT INCLUDES: 3 - Clapet valve Ø 125 5 - Additional Ø 200-250 module manifold 8 - Additional Ø...
  • Page 93 VICTRIX PRO V2 EU 25.6 RESIDUAL HEAD AVAILABLE ON CHIMNEY OPENING The chimney/ducted pipe which collects the flue gas coming in the table - represents the maximum head loss of the flue from the flue manifold, is sized under pressure or vacuum. If...
  • Page 94 VICTRIX PRO V2 EU VICTRIX PRO V2 EU WIRING DIAGRAM KEY: - Black - Blue - Brown - Cyan - Green - Grey - Yellow/Green W/BK - White/Black - Orange - Purple - Pink - Red - White - Yellow...
  • Page 95 N.B. : The new electronics of VICTRIX PRO V2 EU can now control up to 15 thermal modules in simple cascade! It can also completely independently manage up to 2 zones of the thermal system (1 direct and 1 mixed, if any) and1 DHW production circuit.
  • Page 96 VICTRIX PRO V2 EU 26.1 WIRING DIAGRAM: 3-WAY DHW VALVE- HYDRAULIC SEPARATOR - - DIRECT ZONE 1 - MIXED ZONE 2 Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting...
  • Page 97 VICTRIX PRO V2 EU 26.2 WIRING DIAGRAM: 3-WAY DHW VALVE- HYDRAULIC SEPARATOR - - MIXED CENTRAL HEATING ZONE 2 Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting B1-2 - System flow probe (NTC) “Relay settings”...
  • Page 98 VICTRIX PRO V2 EU 26.3 WIRING DIAGRAM: 3-WAY DHW VALVE- - MIXED CENTRAL HEATING ZONE 2 Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting - Domestic hot water probe (NTC) “Relay settings”...
  • Page 99 VICTRIX PRO V2 EU 26.4 WIRING DIAGRAM: 3-WAY DHW VALVE- HYDRAULIC SEPARATOR - - 2 DIRECT HEATING ZONES Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting B1-2 - System flow probe (NTC) (optional) “Relay settings”...
  • Page 100 VICTRIX PRO V2 EU 26.5 WIRING DIAGRAM: 3-WAY DHW VALVE- HYDRAULIC SEPARATOR - - DIRECT HEATING ZONE 1 Key: Tabella configurazione parametri - Connection sheet (loads) "IMPOSTAZIONI IDRAULICHE" (Menu tecnico) - Connection card (signals) Nome del parametro/menu Impostazione B1-2 - System flow probe (NTC) “Relay settings”...
  • Page 101 VICTRIX PRO V2 EU 26.6 WIRING DIAGRAM: 3-WAY DHW VALVE-DHW THERMOSTAT - - ONE DIRECT HEATING ZONE Key: Tabella configurazione parametri - Connection sheet (loads) "IMPOSTAZIONI IDRAULICHE" (Menu tecnico) - Connection card (signals) Nome del parametro/menu Impostazione - External probe (NTC) (optional) “Relay settings”...
  • Page 102 VICTRIX PRO V2 EU 26.7 WIRING DIAGRAM: 3-WAY DHW VALVE- HYDRAULIC SEPARATOR - - TWO DIRECT HEATING ZONES DOWNSTREAM OF THE SYSTEM PUMP Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name...
  • Page 103 VICTRIX PRO V2 EU 26.8 WIRING DIAGRAM: 3-WAY DHW VALVE- - TWO DIRECT HEATING ZONES Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table ('Technician' menu) - Connection card (signals) Parameter/menu name Setting - Domestic hot water probe (NTC) “Relay settings”...
  • Page 104 VICTRIX PRO V2 EU 26.9 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - DIRECT ZONE 1 - MIXED ZONE 2 Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting...
  • Page 105 VICTRIX PRO V2 EU 26.10 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - ZONE 1, MIXED Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting B1-2 - System flow probe (NTC) (optional) “Relay settings”...
  • Page 106 VICTRIX PRO V2 EU 26.11 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - 2 DIRECT ZONES - OPENTHERM THERMOSTATS Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting B1-2 - System flow probe (NTC) (optional) “Relay settings”...
  • Page 107 VICTRIX PRO V2 EU 26.12 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - ZONE 1, DIRECT Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting B1-2 - System flow probe (NTC) (optional) “Relay settings”...
  • Page 108 VICTRIX PRO V2 EU 26.13 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - DIRECT ZONE 1 - PARALLEL OPERATION Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting B1-2 - System flow probe (NTC) (optional) “Relay settings”...
  • Page 109 VICTRIX PRO V2 EU 26.14 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - 2 DIRECT ZONES WITH CONSTANT SETPOINT CH DEMAND Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name...
  • Page 110 VICTRIX PRO V2 EU 26.15 WIRING DIAGRAM: DHW ZONE - HYDRAULIC SEPARATOR - - 2 DIRECT ZONES WITH CH DEMAND WITH EXTERNAL PROBE Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name...
  • Page 111 VICTRIX PRO V2 EU 26.16 WIRING DIAGRAM: DIRECT ZONE 1 WITH THE BOOSTER PUMP Key: “HYDRAULIC SETTINGS” - Connection sheet (loads) parameter configuration table (Technician menu) - Connection card (signals) Parameter/menu name Setting - External probe (NTC) (optional) “Relay settings” submenu: - "ERROR"...
  • Page 112 VICTRIX PRO V2 EU 26.17 WIRING DIAGRAM: VICTRIX PRO V2 EU REMOTE CONTROL Key: A25 - CLIP-IN (optional) code: 3.034122 A38 - Connection card (signals) Room thermostat (optional) Cable type: J-Y(St)Y 2x2x0,6. Maximum permit- ted length: 50 m Address = 0 Technical Notes: - The jumper X40 must be removed.
  • Page 113 VICTRIX PRO V2 EU 26.18 WIRING DIAGRAM: CONNECTION TO BMS SYSTEM Key: Display board Connection card (signals) Cable type: twisted pair (20 / 22 AWG) BMS (modbus master) (optional) Technical Notes: - The jumper X40 must be removed. - The Modbus parameters can be found in the 'TECHNICIAN/SYSTEM SETTINGS/Modbus parameters' menu.
  • Page 114 VICTRIX PRO V2 EU 26.19 WIRING DIAGRAM: SIMPLE BUS CASCADE CONNECTION Key: Display board Connection card (signals) Cable type: 2 x twisted pair (20 / 22 AWG)* Master Boiler Slave Boiler Slave boiler (last) Data + Date - ≤ 2 m ≤...

  • Page 115: Technical Data

    VICTRIX PRO V2 EU TECHNICAL DATA VICTRIX PRO VICTRIX PRO VICTRIX PRO V2 35 EU V2 55 EU V2 60 EU Maximum nominal heat input 34.9 51.0 59.9 Maximum nominal gas heat input 33.5 49,3 57.0 20% H2NG Min. heat input Min.
  • Page 116 VICTRIX PRO V2 EU 27.1 TECHNICAL DATA VICTRIX PRO VICTRIX PRO VICTRIX PRO V2 68 EU V2 80 EU V2 100 EU Maximum nominal heat input 65.0 75.0 93.0 Maximum nominal heat input 62.0 72.0 88.7 gas 20% H2NG Min. heat input 10.1...
  • Page 117 VICTRIX PRO V2 EU 27.2 TECHNICAL DATA VICTRIX PRO VICTRIX PRO VICTRIX PRO V2 120 EU V2 150 EU V2 180 EU Maximum nominal heat input 114,5 141,0 170.0 Maximum nominal heat input 109.0 131,3 160,6 gas 20% H2NG Min. heat input 11.7...
  • Page 118 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU VICTRIX PRO V2 35 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 3.69 Min. heat input of gas G20 0.41 Maximum heat input of gas G31 kg/h 2.71 Min.
  • Page 119 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 28.1 VICTRIX PRO V2 55 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 5.40 Min. heat input of gas G20 0.57 Maximum heat input of gas G31 kg/h 3.96 Min.
  • Page 120 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 28.2 VICTRIX PRO V2 60 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 6.34 Min. heat input of gas G20 0.83 Maximum heat input of gas G31 kg/h 4.65 Min.
  • Page 121 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 28.3 VICTRIX PRO V2 68 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 6.88 Min. heat input of gas G20 0.83 Maximum heat input of gas G31 kg/h 5.05 Min.
  • Page 122 VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU 28.4 VICTRIX PRO V2 80 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 7.94 Min. heat input of gas G20 0.83 Maximum heat input of gas G31 kg/h 5.83 Min.
  • Page 123 VICTRIX PRO V2 100 - 120 - 150 EU 28.5 VICTRIX PRO V2 100 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 9,84 Min. heat input of gas G20 1.07 Maximum heat input of gas G31 kg/h 7.22 Min.
  • Page 124 VICTRIX PRO V2 100 - 120 - 150 EU 28.6 VICTRIX PRO V2 120 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 12,12 Min. heat input of gas G20 1.24 Maximum heat input of gas G31 kg/h 8.89 Min.
  • Page 125 VICTRIX PRO V2 100 - 120 - 150 EU 28.7 VICTRIX PRO V2 150 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 14.92 Min. heat input of gas G20 3.07 Maximum heat input of gas G31 kg/h 10,95 Min.
  • Page 126 VICTRIX PRO V2 180 EU 28.8 VICTRIX PRO V2 180 EU COMBUSTION FEATURES Methane (G20) LPG (G31) Maximum heat input of gas G20 18.0 Min. heat input of gas G20 3.67 Maximum heat input of gas G31 kg/h 13.2 Min. heat input of gas G31 kg/h Supply pressure mbar...
  • Page 127 C.H. system and the D.H.W. system (VICTRIX PRO V2 EU coupled to a storage tank unit). The remote control enables the user to...
  • Page 128 VICTRIX PRO V2 EU CASCADE AND ZONE REGULATOR (CODE 3.034119) Dimensions (H x L x P) mm 96 x 144 x 75 INTERFACE KEY: The cascade and zones regulator allows to manage, control and 1 - "Emissions measurement / manual mode" button.
  • Page 129 Some complementary products, intended to operate the 11 - USB connection: to be used to connect the compo- KEY: nents of the 2.0 VICTRIX PRO V2 EU Remote man- Button: not used agement kit (initial configuration instead of using Address selector: used when there are 2 or more...
  • Page 130 Class Combinations seasonal energy efficiency VICTRIX PRO V2 EU cascade and zone regulator coupled to VICTRIX PRO V2 EU zone manager kit and to external temperature probe VICTRIX PRO V2 EU cascade and zone regulator coupled VIII to number 3 VICTRIX PRO V2 EU zone manager kit...
  • Page 131 VICTRIX PRO V2 EU KIT FOR REMOTE MANAGEMENT 2.0 (CODE 3.034121) (EXCLUSIVELY IN COMBINATION WITH THE CASCADE AND ZONE REGULATOR) DESCRIPTION. of rooms. The kit has a stick with USB port for the Wi-Fi The remote management kit 2.0 allows you to manage the connection, aUSB-LAN adapter and 1 PC connection cable.

  • Page 132: Initial Operation

    VICTRIX PRO V2 EU INITIAL OPERATION/ INITIAL CONFIGURATION DESCRIPTIONS INITIAL OPERATION The heatapp! WLAN-Stick, or simply stick, is used if a per- Select the wireless settings of your tablet/smartphone. manent connection to the home network via a network cable • Connect to the WiFi network created by heatcon! is not possible.
  • Page 133 3.033715 IPX5D top cover 3.033670 Flexible ducting system Ø 80 - (see Immergas price list) Various codes Can only be coupled to Cascade and zone regulator Check whether wall exhaust is allowed by regulatory provisions in force and local regulations...
  • Page 134 VICTRIX PRO V2 EU FLUE SYSTEMS kit for VICTRIX PRO V2 100 - 120 - 150 EU Code Vertical terminal Ø 100 (for roof exhaust) 3.032713 Vertical flue exhaust Ø 100 (in stainless steel) 3.032714 Intake stub pipe Ø 100 (configuration B 3.033760...
  • Page 135 VICTRIX PRO V2 EU HYDRAULIC and COMPLEMENT kits for VICTRIX PRO V2 35 - 55 - 60 - 68 - 80 EU Code INAIL safety devices kit for single boiler 3.023949 3-way valve for coupling separate storage tank unit 3.023950 IPX4D protection box for INAIL outdoor safety devices 3.024028...
  • Page 136 VICTRIX PRO V2 EU 34 VICTRIX PRO V2 EU RANGE IN SET CONFIGURATION INSTALLATION OPTION TEMPERATURE CONTROLKIT for VICTRIX PRO V2 EU in SET CONFIGURATION Code High power remote control for single boiler(also in simple cascade) 3.020358 CHRONO 7 3.021622 CRONO 7 WIRELESS 3.021624...
  • Page 137 VICTRIX PRO V2 EU HYDRAULIC and COMPLEMENT kits for VICTRIX PRO V2 35 - 55 - 80 EU in SET CONFIGURATION Code Hydraulic manifold in set configuration (for first 2 cascade modules) 3.032338 Hydraulic collector in set configuration, additional module (manifold added to module 2) 3.033669...
  • Page 138 VICTRIX PRO V2 EU HYDRAULIC DIAGRAM:VICTRIX PRO V2 EU WITH 1 DIRECT ZONE 1 MIXED ZONE AND 1 DHW ZONE...
  • Page 139 VICTRIX PRO V2 EU HYDRAULIC DIAGRAM:VICTRIX PRO V2 EU WITH 1 DIRECT ZONE 1 MIXED ZONE AND 3-WAY VALVE WITH DHW PRIORITY...
  • Page 140 VICTRIX PRO V2 EU HYDRAULIC DIAGRAM:VICTRIX PRO V2 EU IN SIMPLE CASCADE WITH 1 DIRECT ZONE 1 MIXED ZONE AND 1 DHW ZONE...
  • Page 141 VICTRIX PRO V2 EU 38 HYDRAULIC DIAGRAM: VICTRIX PRO V2 EU IN SET CONFIGURATION WITH CASCADE AND ZONE REGULATOR + EXPANSION WITH 1 DIRECT ZONE 3 MIXED ZONES AND 1 DHW ZONE...
  • Page 142 VICTRIX PRO V2 EU HYDRAULIC DIAGRAM: 3 VICTRIX PRO V2 EU WITH CABINET IN SIMPLE CASCADE WITH 1 DIRECT ZONE 1 MIXED ZONE AND 1 DHW ZONE...
  • Page 143 During the useful life of the products, performance is affected by external factors, e.g. the hardness of the DHW, atmospheric agents, deposits in the system and so on. The declared data refer to new products that are correctly installed and used in observance of the Standards in force. N.B.: correct periodic maintenance is highly recommended.
  • Page 144 To request further specific details, sector Professionals can also use the following e-mail address: consulenza@immergas.com QUALITY SYSTEM CERTIFIED UNI EN ISO 9001:2015 Design, manufacture and after-sales assistance of gas boilers, gas water heaters and relative accessories...

This manual is also suitable for:

Victrix pro v2 100 euVictrix pro v2 120 euVictrix pro 55 v2 euVictrix pro 35 v2 euVictrix pro 180 v2 euVictrix pro 80 v2 eu ... Show all
