Immergas VICTRIX PRO V2 EU Manual page 14

4.3
14
13
12
11
10
9
8
7
6
5
4
3
2
1

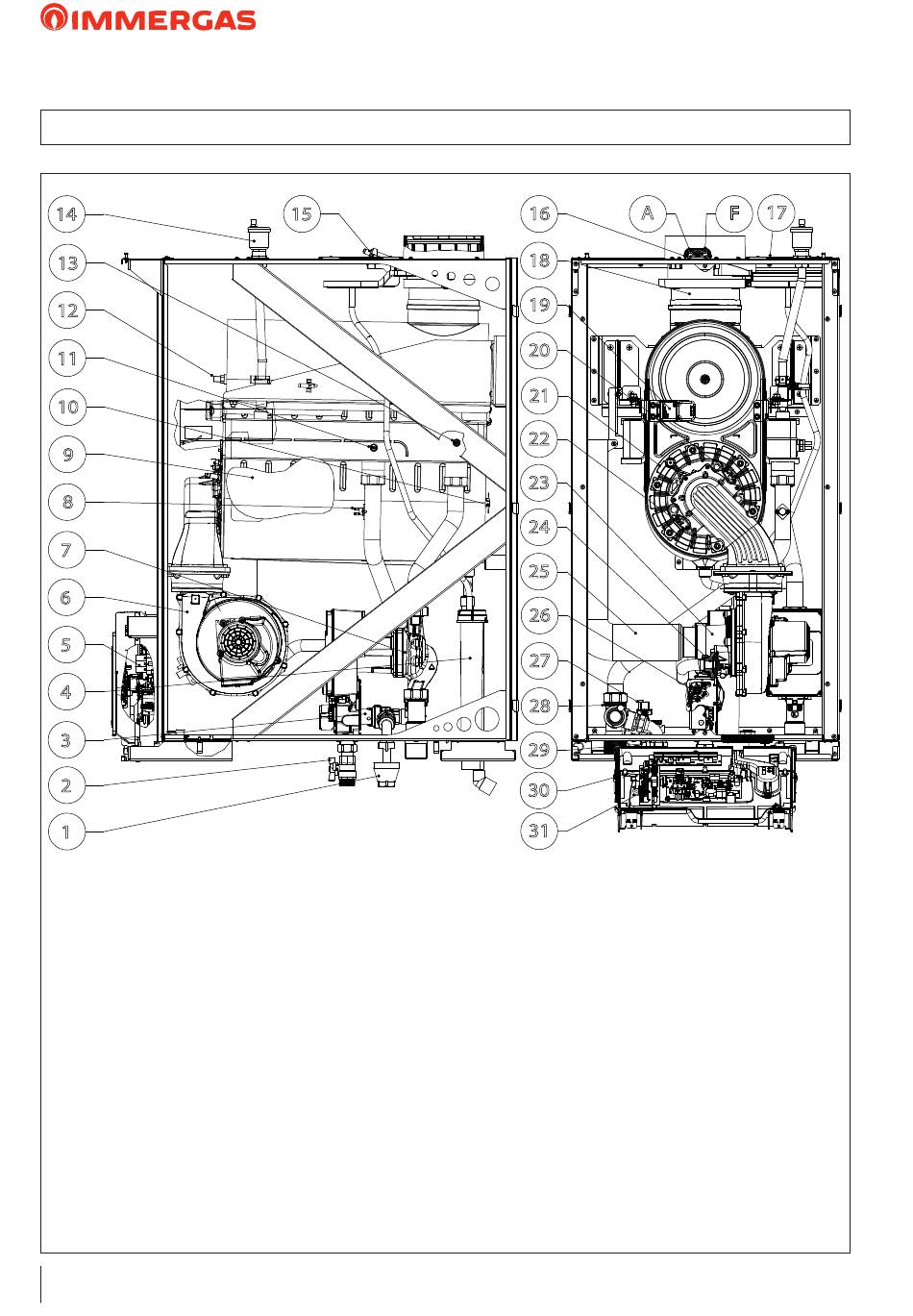

KEY:
1 - Draining funnel
2 - Gas cock
3 - 5.4 bar safety valve
4 - Condensate siphon
5 - P.C.B.
6 - Fan
7 - Pump
8 - Overheating safety thermostat
9 - Burner
10 - Heat exchanger safety thermofuse
11 - System flow adjustment NTC probe
12 - Flue probe with thermofuse
13 - System return adjustment NTC probe
14 - Automatic air vent valve
15 - Flange with sample points
16 - Sample points (air A) - (flue gases F)
14
VICTRIX PRO V2 180 EU COMPONENTS
15
VICTRIX PRO V2 180 EU
16
18
19
20
21
22
23
24
25
26
27
28
29
30
31
17 - Intake closing cap 160 Ø
18 - Flange connection module-flue hood
19 - Igniter
20 - Ignition glow plug
21 - Combustion group
22 - Detection electrode
23 - Venturi
24 - Gas nozzle
25 - Air intake pipe
26 - Gas valve
27 - Pressure transducer
28 - Flow hydraulic unit
29 - Drain fitting
30 - Low power connection board
31 - High power connection board
A F 17
