VICTRIX PRO V2 180 EU

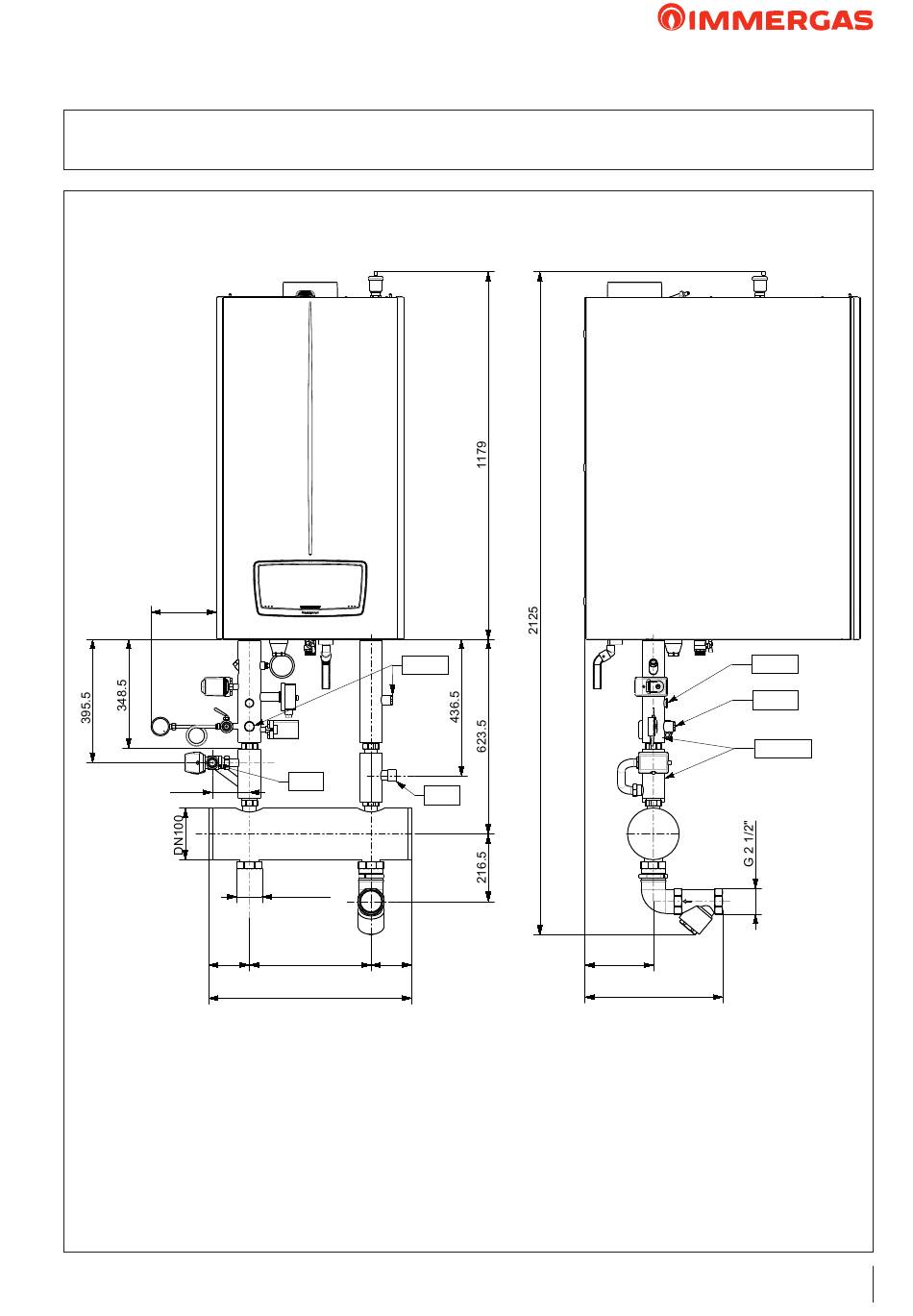

8.2 HYDRAULIC KIT DIMENSIONS AND CONNECTIONS (OPTIONAL)
210
119
=
WITH VICTRIX PRO V2 180 EU SINGLE BOILER
G 3/4"
G 1"
G 2 1/2"
M
R
390 =
652
G 1"
G 1/2"
G 3/4"
G 1 1/2"
220
442
