2 | Product description

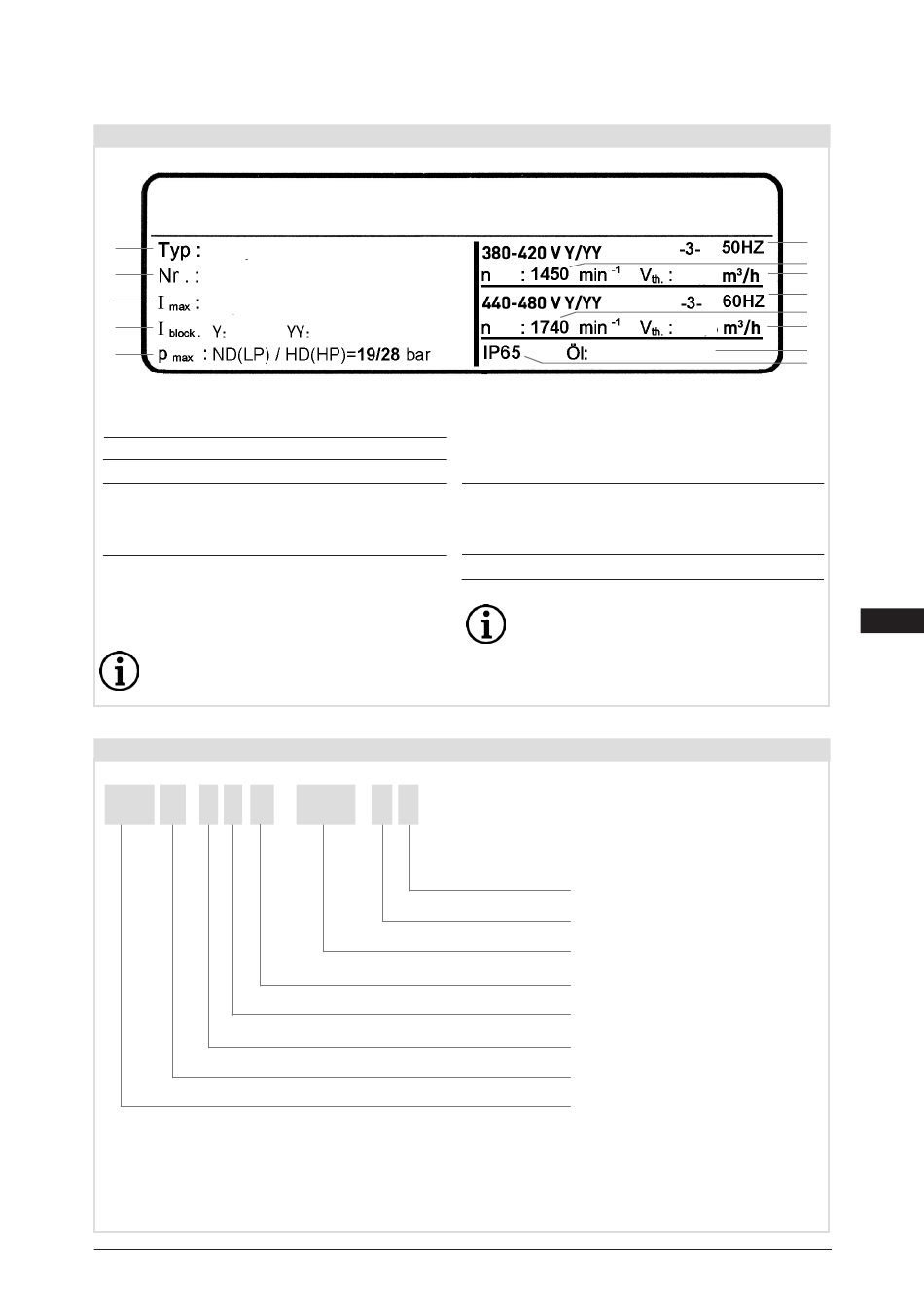

2.2 Name plate (example)
BOCK
1
HGX44e/770-4 S
2
AV12345A001
3
35,0 A
4
101 A
5
Fig. 3
Type designation
1
Machine number
2
maximum operating current
3
Starting current (rotor blocked)
4
Y: Part winding 1
YY: Part windings 1 and 2
5 ND (LP): max. admissible operating pressure 12 Oil type filled at the factory
(g) Low pressure side
HD (HP): max. admissible operating
pressure (g) High pressure side
Observe the limits of application
diagrams!
2.3 Type key (example)
HG X 4 e 770- 4 S 4
) HG - Hermetic Gas-Cooled (suction gas-cooled)
¹
)
X - Ester oil charge (HFC refrigerant, e.g. R134a, R404A/R507, R407C, R407F)
²
) S - More powerful motor, e.g. for air-conditioning applications
3
