8| Accessories

8.1 Capacity regulator

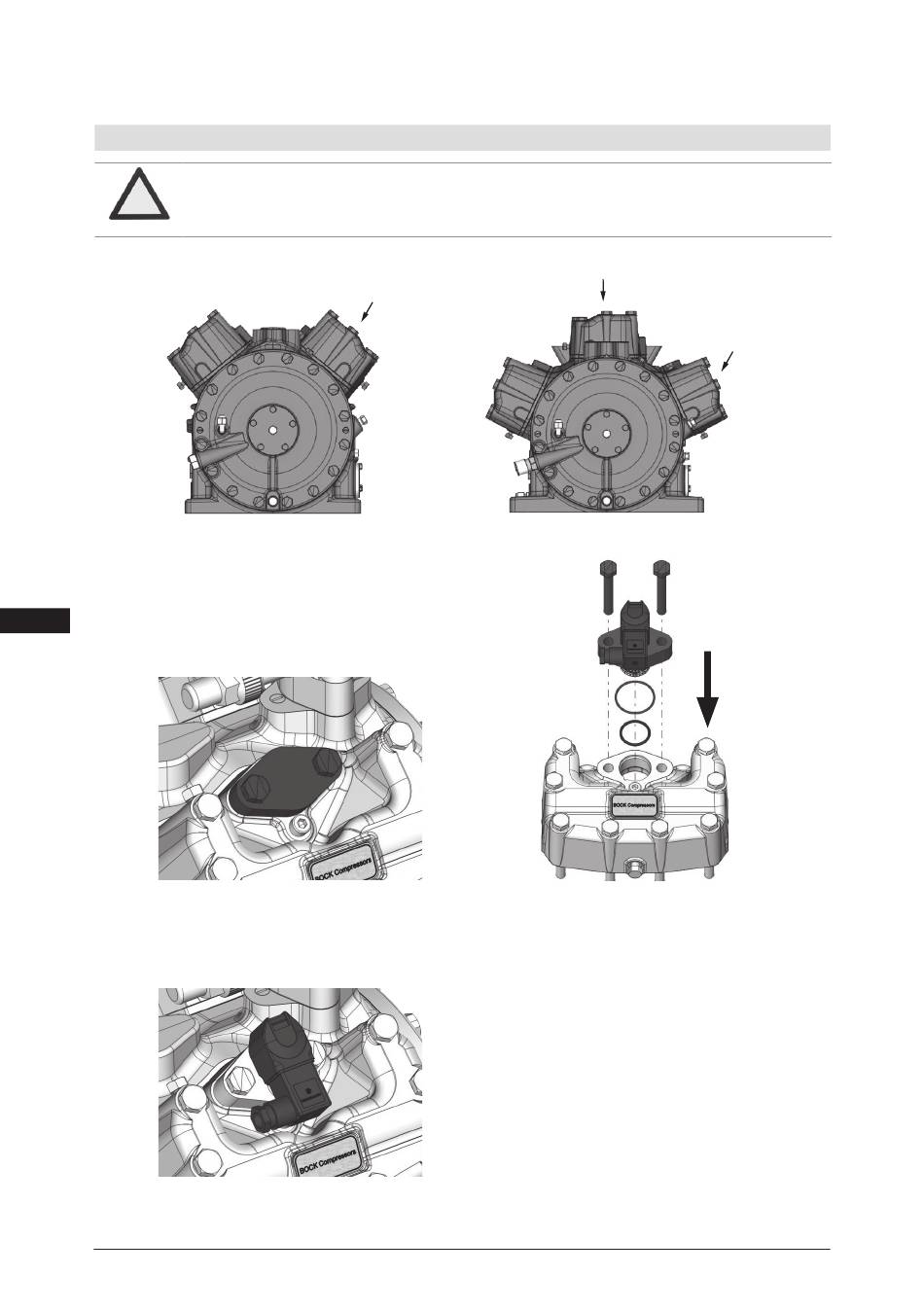

Fig. 18
D
GB
F
E
Fig. 19
Delivery condition 1 (from the factory):
Cylinder cover prepared for capacity regulator.
Fig. 21
Delivery condition 2 (from the factory):
Connect capacity regulator in terminal box or
switch cabinet.
30 | AQ451925859810en-000301
ATTENTION If the capacity regulator is installed at the factory, it is subsequently
installed and connected by the customer.
CR 1
HG44e
Before commissioning, the blind flange with
screws must be removed and replaced by the
new set capacity regulator with O-ring joints
and screws. Observe position and construction
of the capacity regulator.
Attention! Compressor is under pressure!
Depressurize the compressor first.
CR 1
CR 2
HG56e
