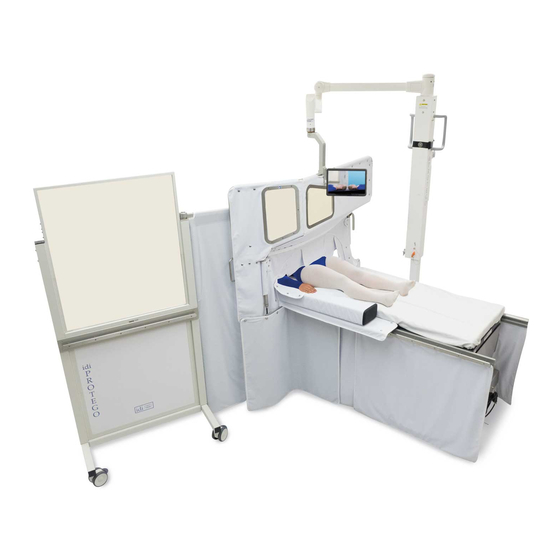

idi PROTEGO DEMO Instructions Manual

Uncrate & crate
Hide thumbs

Advertisement

Quick Links

Download this manual

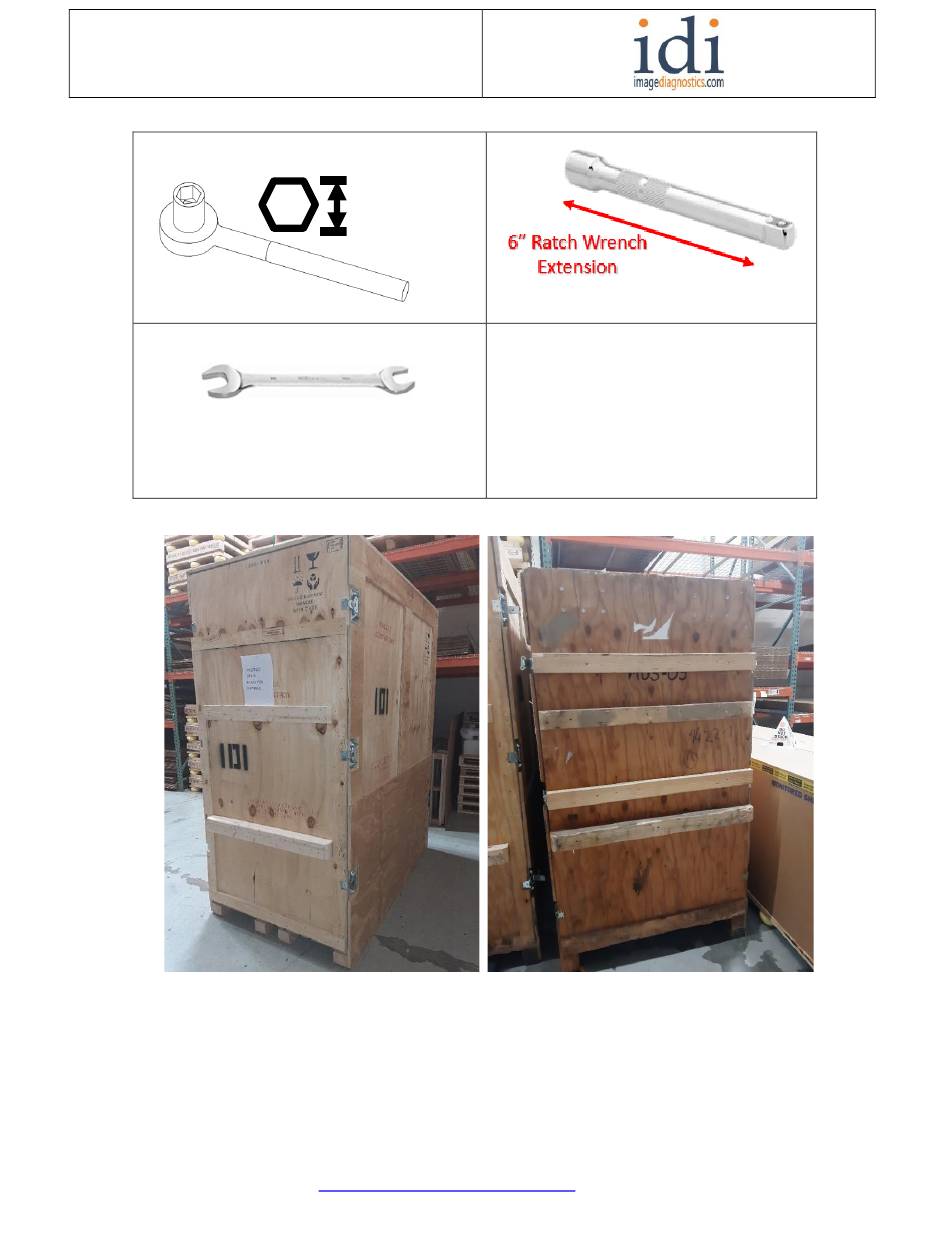

UNCRATE & CRATE INSTRUCTIONS FOR
PROTEGO DEMO
ENGLISH AND METRIC ALLEN WRENCHES
TOOLS IN CRATE SIDE POUCH
9/16 & 3/4 OPEN END WRENCH
Crate 1, 44"W x 74.5"D x 89.5"H
Crate Size:
MOBILE STAND WITH BARRIER
L800-0405 REV B
9/16"
3/4"
www.imagediagnostics.com
Report any shipping Damage to IDI at
978-829-0009
Engineering
Crate 2, 44"W x 74.5"D x 79"
MOBILE BARRIER/HARD CASES
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROTEGO DEMO and is the answer not in the manual?

Questions and answers

Related Manuals for idi PROTEGO DEMO

Summary of Contents for idi PROTEGO DEMO

  • Page 1 PROTEGO DEMO ENGLISH AND METRIC ALLEN WRENCHES TOOLS IN CRATE SIDE POUCH 9/16” 3/4” Report any shipping Damage to IDI at 978-829-0009 Engineering 9/16 & 3/4 OPEN END WRENCH Crate 1, 44”W x 74.5”D x 89.5”H Crate 2, 44”W x 74.5”D x 79”...
  • Page 2 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 1. Uncrating Protego Crate 1 & Crate 2. 1.1. Unloading Crate 1 - Shipper - Unbuckle and Unstrap – Steps 1 - 4. Step 1 – Unbuckle thru handle Step 2 – Unbuckle Spring Arm Step 3 –...
  • Page 3 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO Step 4 - Unstrap around handle to floor eye bolt. 1.2. Moving bagged Barrier to Park Block – Move Bagged Barrier rear handle out from rear holding block. Step 5. Move Barrier out from rear block Remove Allens, turn white Park Block out.
  • Page 4 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO Leave Foam or Bubble Wrap and barrier bag on product Place Barrier pipe into Park Block. Column Strap around Extension Block 1.3. Front floor plate removal – Mount base plate, remove turn bolt to floor.
  • Page 5 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 1.4. The back floor plate will remain fixed - DO NOT REMOVE! 1.5. Items to remain with Mobile Stand with Barrier when removed from crate. Base Column Block Barrier Bag L800-0405 REV B Page 5 www.imagediagnostics.com...
  • Page 6 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 1.6. Removing Mobile Barrier from Crate – Force on handles will be needed to slide off the floor ramps under the stand base. L800-0405 REV B Page 6 www.imagediagnostics.com...
  • Page 7 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 1.7. Unloading Crate 2 - Shipper 1.8. – Unloading Covered Mobile Barrier. Remove the two long and one small Pelican cases at the side walls. Item 5 and 6 L800-0405 REV B Page 7...
  • Page 8 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 1.9. Unzip barrier bag. Remove the tie down straps to each side. Remove cross 2 x 4. Zip down cover. Unlock castor if locked. Pull mobile barrier from crate. After Barrier is out of crate, take cover off.
  • Page 9 2.1. Loading Crate 1 2.2. (IDI Representative only) – Column is down with safety pin and base block, tighten lock knob. Put Barrier in park block with Velcro strap. Add bubble wrap to monitor and bag to barrier – in black arm board outer pouch.
  • Page 10 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 2.3. Shipper - Make sure bag is on barrier (extra on right back side wall). Shipping Tape maybe in other crate to use closing bag top. Push mobile stand with bagged barrier attached into crate .
  • Page 11 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 2.4. Front floor plate mounting, Buckles and Straps – Steps 1- 6. Mount base plate, turn screws to floor. 2.5. Separate bagged Barrier from Mobile Stand. Remove column Velcro Scrap, wrap around column. Unparking bagged Barrier from Park Block – push down. Turn Park Block to front position - remove Allen t-handles, turn, replace t-handles.
  • Page 12 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 2.6. Buckles and Straps – Steps 1 - 4. Step 1 – Buckle thru handle Step 2 – Buckle Spring Arm Buckle Black cover L800-0405 REV B Page 12 www.imagediagnostics.com...
  • Page 13 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO Step 3 – Buckle Horizontal Arm. Tighten straps as needed. If buckle strap falls off, remove black cover and re-feed strap thru buckle. Buckles strap Separated Tie downs. Step 4 - Strap around handles to floor eye bolt.
  • Page 14 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO 2.7. Loading Crate 2 2.8. The barrier must have side shield arm bent to 90 degrees with strap for shipping. Make sure Protego label white bag is on barrier. All other products must be boxed or in Pelican cases.
  • Page 15 UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO Add White Barrier cover from Crate if on – Zipper opposite shield panel 90 end. 2.10. 2.11. Loading Covered Mobile Barrier. Push mobile barrier into crate centered with side shield arm at 90 degrees to rear of crate. Unzip barrier bag, add cross front bottom 2 x 4. Add the tie down straps from rear floor eyes up over the mid door rail and then back to front floor eyes, strap both door sides.

  • Page 16: Reference Material

    UNCRATE & CRATE INSTRUCTIONS FOR PROTEGO DEMO Add remaining Pelican cases, 5 – 6 to bag door sides. 2.12. There can be other boxes and supplies. 3. Reference Material 3.1. Reference documents: • L800-0168 Q-Card, Protego, Mobile • L800-0170 Manual, Setup & Operator, Protego •...
