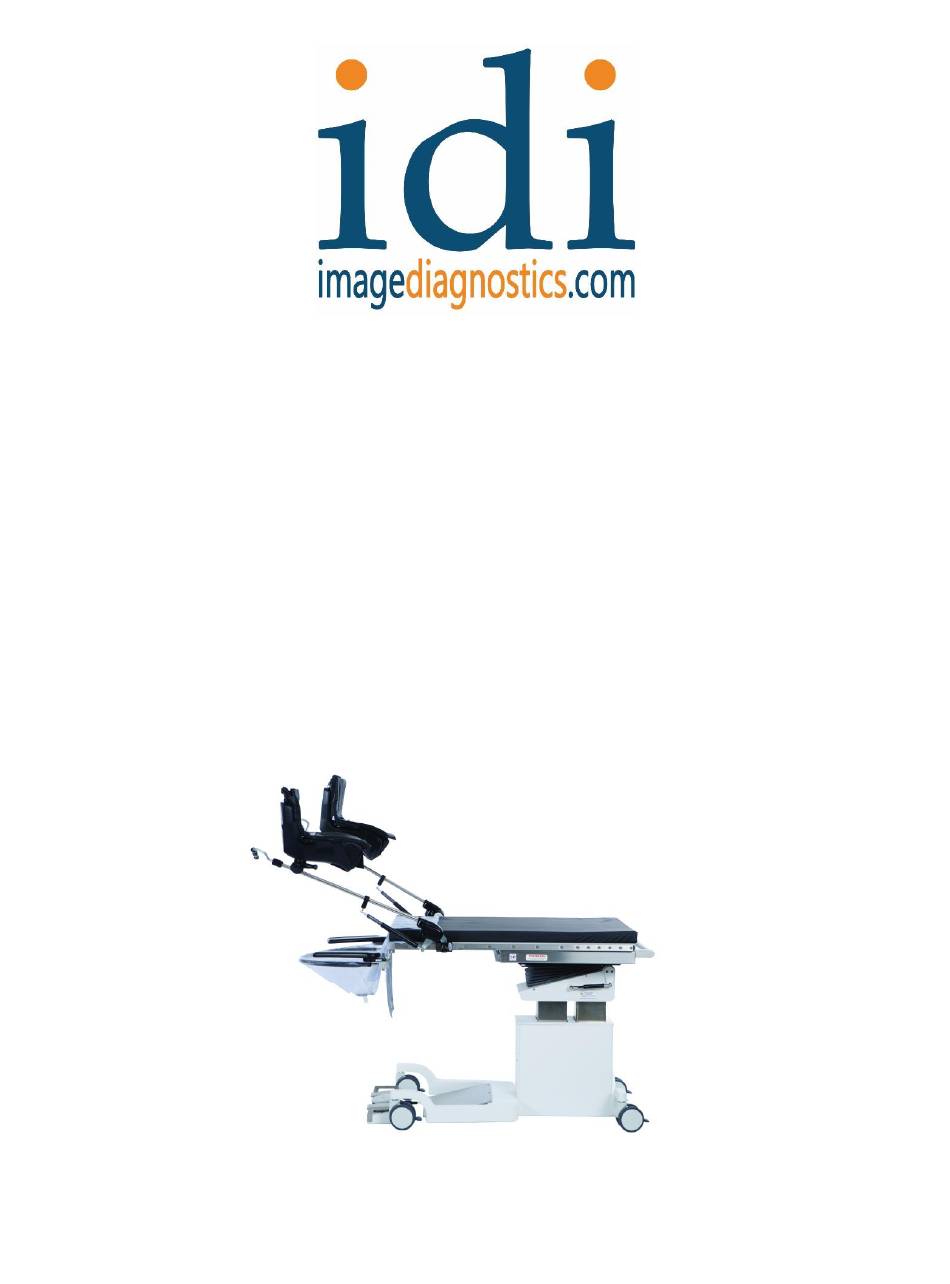

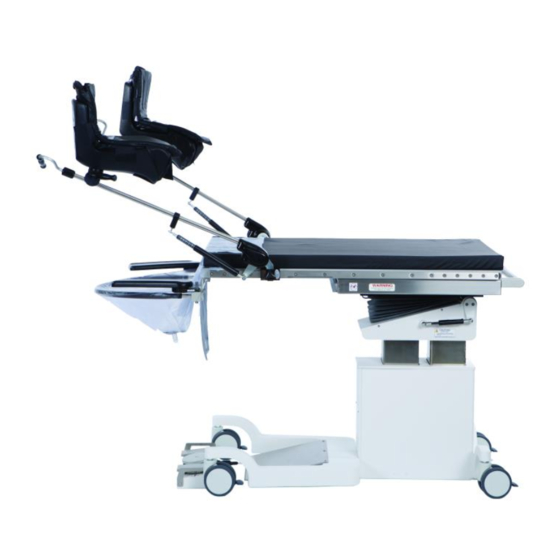

- Page 1 Image Diagnostics Inc Aspect100UC Plus Mobile Urology Table Operator Manual Made in the USA...
-
Page 2: Table Of Contents
Operator Manual Aspect 100UC Plus Table of Contents PRODUCT DATA ..........................2 CUSTOMER SUPPORT ........................4 SYMBOLS AND DATA PLATE ......................5 SPECIFICATIONS ..........................7 ELECTROMAGNETIC COMPATIBILITY STATEMENT ................. 8 SETUP ............................... 9 SAFETY HAZARDS ........................... 11 SAFETY HAZARD ALERTS ........................ 11 SAFETY INSTRUCTIONS ........................ -
Page 3: Product Data
Operator Manual Aspect 100UC Plus PRODUCT DATA • Low attenuation carbon fiber tabletop • Tabletop: 28in x 46-1/2in (71cm x 118cm) • Radiolucent tabletop extension: 24in x 34in (61cm x 86cm) • Imaging area, main tabletop: 25in x 20in (63.5cm x 50.8cm) •... - Page 4 Operator Manual Aspect 100UC Plus INTRODUCTION Overview This manual is not intended as a substitute for certified training for the use of this equipment. The operation of this equipment should be limited to qualified medical personnel who have been trained in the use of medical equipment. The text of this manual was originally written, approved and published by the manufacturer in English.
-
Page 5: Customer Support
For technical assistance, call IDI at (978) 829-0009. Be prepared to give the complete model and serial number found on the data plate on the table base at the time of contact. -
Page 6: Symbols And Data Plate
Operator Manual Aspect 100UC Plus SYMBOLS AND DATA PLATE Intertek Testing Service Attention! Consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious personal injury or damage to equipment. CD ROMs containing file copies of all relevant drawings, BOMs, and documentation are included with this manual, one for general operators and one for the BIOMED department. - Page 7 Operator Manual Aspect 100UC Plus Recycle Some of the material can be recycled rather than discarded. Not for Patient Transport The table must not be relocated with a patient on it, nor shall it be used to move a patient. Do Not Sit This label is found on parts that are not designed to support the sitting weight of a patient.
-
Page 8: Specifications
Operator Manual Aspect 100UC Plus SPECIFICATIONS Mode of Operation: For continuous operation with short time loading Duty Cycle: 10% (6 min/hr) Type of Equipment: Class I Type B (as defined by IEC 60601-1, UL 60601-1, EN 60601-1, CSA 601.1, IEC 60601-2-32:1994 and IEC 60601-2-46) Type B protection against electrical shock 21CFR Complies with FDA standards per... -
Page 9: Electromagnetic Compatibility Statement
Operator Manual Aspect 100UC Plus ELECTROMAGNETIC COMPATIBILITY STATEMENT This equipment may generate and use radio frequency energy. The equipment must be installed and used according to the manufacturer’s instructions in order to avoid radio frequency interference. If this equipment generates or receives interference: •... -
Page 10: Setup
Operator Manual Aspect 100UC Plus SETUP Unpack No special handling is required for unpacking this equipment at the site. Conventional shipping materials are used. To remove the table from the shipping pallet, first remove the shipping brackets that secure the table to the wooden pallet using a 9/16” wrench. Then roll the table down a temporary ramp or lift off pallet with a forklift. - Page 11 Operator Manual Aspect 100UC Plus pin is in good condition. Check that the cord ground wire is securely connected to the ground stud inside the unit. During an AC failure, the table will automatically run on battery backup without any manual switching required.
-
Page 12: Safety Hazards
Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc. 310 Authority Drive Fitchburg, MA 01420 Or call IDI at (978) 829-0009 SAFETY HAZARD ALERTS Alert Circumstances for Use DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 13 Operator Manual Aspect 100UC Plus WARNING! This product may be used in conjunction with x-ray equipment. This constitutes potential expose to harmful x-rays for both the patient and operator. Be sure to use proper radiation shielding. CAUTION Secure power cord when in use so that it does not get entangled with other equipment and/or compromise the safety of the operator and/or staff.
-
Page 14: Safety Instructions
Operator Manual Aspect 100UC Plus SAFETY INSTRUCTIONS This symbol, when found marked on the equipment means: ”Attention, consult accompanying documentation.” This manual should be accessible to all personnel installing, operating, or servicing this equipment. Only a qualified technician may install or maintain this equipment. Only qualified persons may operate this equipment. - Page 15 Operator Manual Aspect 100UC Plus CAUTION Do not use table for patient transport. CAUTION During operation, listen for any unusual sounds and watch for uneven operation. CAUTION Ensure that the tabletop does not contact other equipment as it moves. CAUTION If using legholder stirrups with this table, use caution.
-
Page 16: Accessories
Operator Manual Aspect 100UC Plus CAUTION Secure wheel locks by depressing locks on all 4 wheels prior to patient usage and when table is not in motion. Disengage to reposition. -Push down to lock ACCESSORIES • Tabletop Extension This table is equipped with an extension that may be attached to one end of the tabletop. - Page 17 Operator Manual Aspect 100UC Plus EXTENSION REMOVAL Tilt the far end of the extension up and lift off. Tabletop Extension Part Number A100-1400 • Patient Restraint Straps Hook & loop fasteners Patient Restraint Strap Set Part Number C000-0571 (Two straps 3” wide) L100-3065 REV C www.imagediagnostics.com...
- Page 18 2. Slide pins into appropriate holes and push down to lock in. Rotate the arm right and left 180º. REMOVAL Pull the elbow support up and out of the block. Elbow Support Contact IDI Customer Service for replacement items. Elbow Supports Part Number C000-0594 (pair) L100-3065 REV C www.imagediagnostics.com...
- Page 19 Operator Manual Aspect 100UC Plus • STIRRUP EXTENSION KIT (OPTIONAL ACCESSORY) The IDI Stirrup Extension Kit allows the stirrups to be attached to the table in an advantageous position that allows the tabletop extension to slide on and off without repositioning the stirrups.
- Page 20 Operator Manual Aspect 100UC Plus • ANCILLARY TRAY (OPTIONAL ACCESSORY) LEFT RIGHT The stainless-steel Ancillary Trays provide a convenient way to keep instruments conveniently close to the doctor. These have pins that drop into the holes that the elbow supports would use. The trays can’t be used at the same time as the elbow supports.
- Page 21 Operator Manual Aspect 100UC Plus • ARMBOARD A – Push to open latch to install or remove B – Armboard pad C – Pull trigger to rotate armboard to desired position D – Hook & loop patient straps Patient Armboard with Pad & Restraint Straps Part Number A310-056 (see note below) Replacement Armboard Pad Part Number X100-1755 (see note below)
- Page 22 Test procedure and schedule to be the responsibility of the appropriate department of the facility where used. IDI imaging tables are designed to provide excellent fluoroscopic imaging access with mobile C-arms. Whenever the table is used for procedures involving the use of a mobile...
- Page 23 • DRAIN BAG ASSEMBLY • Use for the collection of body fluids • Intended for one-time use • Drain bag supplied by IDI is latex free INSTALLATION 1. Remove tabletop pad. 2. Slide drain bag support (A) (small pins down) through opening in drain bag edge (B).
- Page 24 2. Pull out drain bag support. One Time Use Only Not made with natural rubber latex DISPOSAL Per local procedures, typically normal waste or incinerate. Drain Bag Contact IDI Customer Service for replacement Drain Bags and associated accessories. L100-3065 REV C www.imagediagnostics.com...
- Page 25 Operator Manual Aspect 100UC Plus • HAND CONTROL CAUTION Always check that the patient is secure before activating any table motion • First of buttons moves tabletop up and down • Second row of buttons controls the Trendelenburg motion • Third row of buttons slides the tabletop longitudinally •...
- Page 26 Operator Manual Aspect 100UC Plus • FOOT CONTROL CAUTION Always check that the patient is secure before activating any table motion To move tabletop, depress disc or button and hold depressed until Removable foot control tray desired position is reached. The tabletop will pause at the horizontally level position during Trendelenburg motion.
- Page 27 Per local procedures. Typically normal waste or incinerate Foot Control Disposable Cover Foot Control Part Number C000-0492 (Box of 50) Part Number A100-1540 Foot Control Replacement Cable Part Number M100-1808 Contact IDI Customer Service for individual components of foot control L100-3065 REV C www.imagediagnostics.com...
-
Page 28: Emergency Stop Switch
Operator Manual Aspect 100UC Plus EMERGENCY STOP SWITCH • The red emergency stop button is located on top of the control box • Pressing this button down will stop all motor movement • In the event that the hand or foot control malfunctions, the emergency stop control prohibits motion by removing power from all system components •... -
Page 29: Electric System
Operator Manual Aspect 100UC Plus ELECTRIC SYSTEM A – Control Box (controller, batteries and battery fuse inside) B – Safe DC Voltages C – Level Position Switch D – Trendelenburg (Tilt) Actuator E – Elevating (Lifting) Actuator F – Slide (Longitudinal) Actuator G –... -
Page 30: Controller Connections
Operator Manual Aspect 100UC Plus CONTROLLER CONNECTIONS Pull tab to access input fuses and spares (use forceps to pull out spares) PORT DEVICE TREND ACTUATOR ELEVATING ACTUATOR SLIDE ACTUATOR LATERAL ACTUATOR LEVEL SWITCH HAND & FOOT CONTROLS BATTERY FUNCTION When the AC power cord is plugged into the wall, the battery will be charging until the battery reaches full capacity. -
Page 31: General Cleaning
Operator Manual Aspect 100UC Plus GENERAL CLEANING After each procedure, the table should be carefully cleaned The disinfectant cleaners and cleaning steps on this page apply to all the parts of the table except the radiation shield. (see the following page for radiation shield cleaning) •... - Page 32 Operator Manual Aspect 100UC Plus • CLEANING THE RADIATION SHIELD CAUTION Observe cleaning product cautions found on product labels. After each procedure, the radiation shield should be carefully cleaned CLEANING STEPS 1. Remove the shield and lay it flat before using the recommended cleaner in an adequately ventilated area.
- Page 33 Operator Manual Aspect 100UC Plus • CLEANING THE PATIENT TABLETOP & OPTIONAL ARMBOARD PADS CAUTION Do not immerse pad CAUTION Bleach must be diluted 10:1 CLEANING STEPS 1. Wash with a generous amount of neutral soap suds and lukewarm water. 2.
-
Page 34: Maintenance
•Semiannually Inspect tabletop trunnion shaft, tabletop spacer & the lower rail mount plate for any signs of shifting/movement between mating surfaces. (see TSI-0034-28 100-UC+ How to evaluate loose trunnion bolts for procedure. Please contact the IDI helpdesk for a link to an instructional video.) •... -
Page 35: User Replacement Items
Operator Manual Aspect 100UC Plus USER REPLACEMENT ITEMS These are easily replaced by the operator. • Tabletop Pad Pads are held in place by hook and loop fasteners. Simply pull pad up gently to remove. New replacement pads are supplied with new self-adhesive fasteners installed and new mating pieces for the tabletop or extension. -
Page 36: Disposal Of Components
Aspect 100UC Plus DISPOSAL OF COMPONENTS IDI medical tables are made up of mostly steel, copper and aluminum parts which are easily recycled. It is recommended that some components be disassembled before disposal for recycling. The table below lists components typically found in IDI products but varies with model and options. -
Page 37: Warranty
Operator Manual Aspect 100UC Plus WARRANTY Warranty details for IDI Products can be obtained directly from Image Diagnostics, Inc. Image Diagnostics, Inc. 310 Authority Drive Fitchburg, MA 01420 USA Or call IDI at (978) 829-0009 L100-3065 REV C www.imagediagnostics.com...
