idi ilex Installation Manual

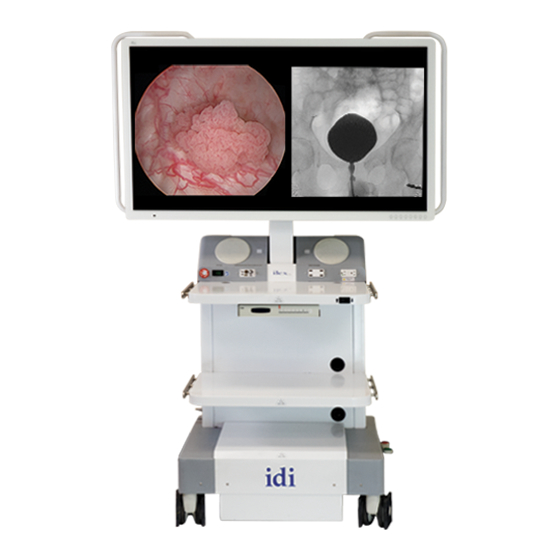

Mobile video integration system
Hide thumbs Also See for ilex:
Table of Contents

Advertisement

Quick Links

Download this manual

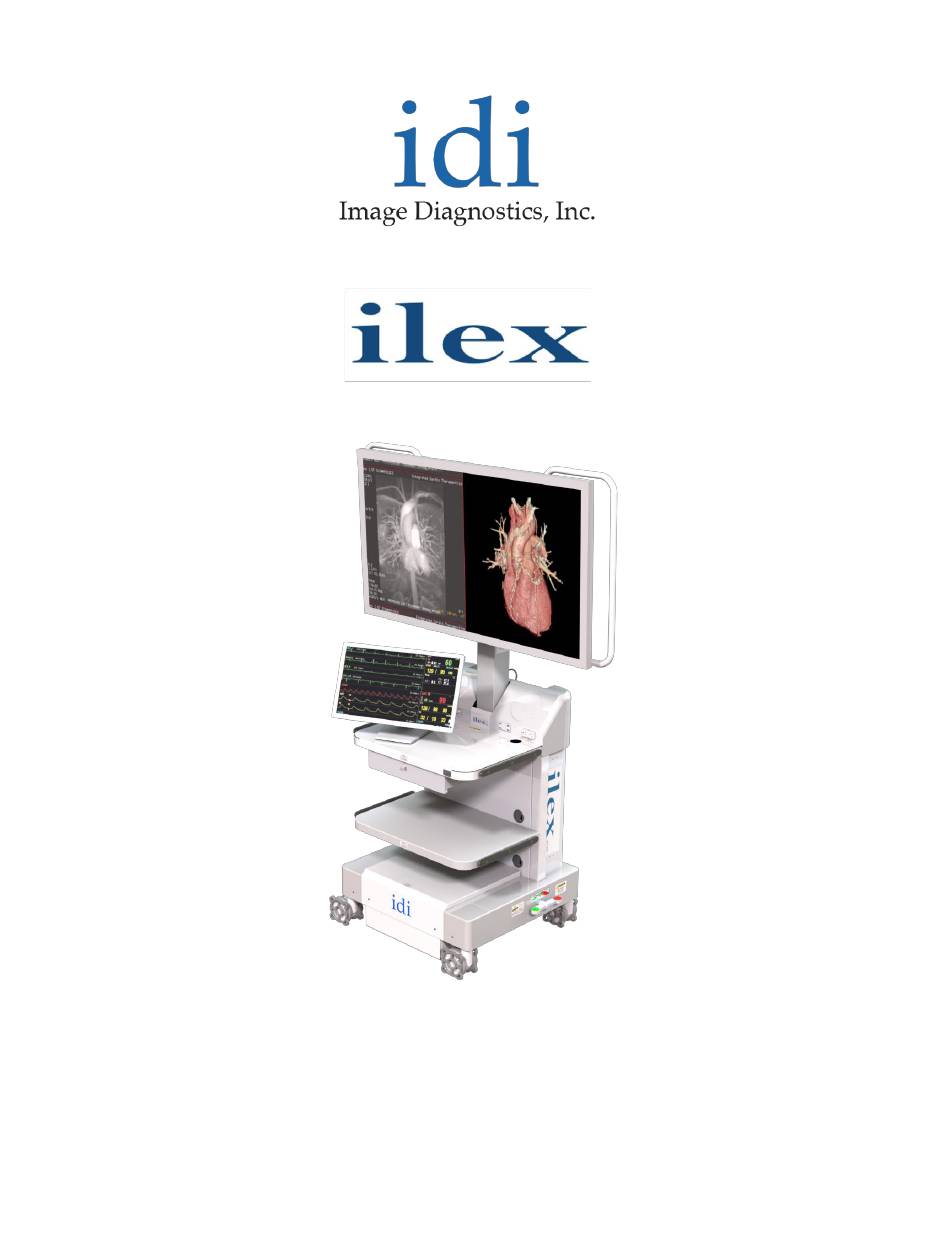

Mobile Video Integration System
Installation Guide
For units using MSV2 video signal router
The text of this manual was originally written, approved and published by the manufacturer in English. The information and
images in this document are proprietary to IDI and is only for use for and by IDI representatives or their Agents.
Made in the USA
L280-0974 REV C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ilex and is the answer not in the manual?

Questions and answers

Related Manuals for idi ilex

Summary of Contents for idi ilex

  • Page 1 The text of this manual was originally written, approved and published by the manufacturer in English. The information and images in this document are proprietary to IDI and is only for use for and by IDI representatives or their Agents.

  • Page 2: Table Of Contents

    Installation Guide Table of Contents ilex controls ............................. 1 Video Inputs ............................ 1 Factory Preset Layouts ........................3 Accessing Onscreen Keyboard ....................... 5 Modifying Layouts.......................... 5 Assigning Channels to Window Location ..................7 Cropping Windows ......................... 8 Rename Layouts and Channels ....................... 9 Saving and returning to guest mode....................

  • Page 3: Ilex Controls

    The ilex has 4 different channel input capabilities Video inputs are connected to the rear of the ilex then routed scalers and into the controller, the MSV2 (Multiview scalar). Basic Layout navigation is done in the “Guest” mode of the system. Changing or programing of the layout format is available only in the “Administrator”...
  • Page 4 Installation Guide ilex Basic “Guest” mode Screen Layouts Single Channel Inputs Administrator mode L280-0974 REV C www.imagediagnostics.com Page 2...

  • Page 5: Factory Preset Layouts

    Installation Guide ilex Factory Preset Layouts By design each preset has the capability of showing 4 windows, A, B, C, & D. Each of the windows can be cropped, resized, relocated, and assigned one of the 4 channel inputs. Channels 3 & 4 can also accept DisplayPort video inputs when required.
  • Page 6 Installation Guide ilex For each of the preset layouts the windows can be assigned channel 1,2,3 or 4. Screens can be rotated clockwise or counterclockwise within a given layout. Image Rotation buttons L280-0974 REV C www.imagediagnostics.com Page 4...

  • Page 7: Accessing Onscreen Keyboard

    2.1.2. Password: 123123123! 2.2. To login as guest/operator mode use the following credentials (case sensitive) 2.2.1. Username: idi 2.2.2. Password: Password55 3. In general, always remember to Click apply and save, otherwise work will be lost. 3.1. There are 8 possible user set layouts that can be adjust the size, and location of windows (User0,1,2,3,4) 3.1.1.
  • Page 8 Installation Guide ilex 3.1.2. On the right side of the screen select the desired user in the drop- down menu. Click on the new layout tab, then select one of the predefined layouts with the correct number of channels required for layout.

  • Page 9: Assigning Channels To Window Location

    Installation Guide ilex 3.1.4.5. In the edit tab, set the layer requirements as needed by clicking on the green box and selecting a layer in the drop-down menu. L4 is considered the top layer, L1 is bottom most layer. 3.1.4.6. To add a channel to a given layout click on the letter in the edit tab and select turn on or off.

  • Page 10: Cropping Windows

    Installation Guide ilex Cropping Windows 5. Steps used to crop windows and channels 5.1. Go to Preset and channel mode (2 tab, pencil icon) 5.2. Locate the drop-down menu called preset and channel 5.3. Drop down and select CH1 5.4. Click on the input cropping slider to activate cropping 5.5.

  • Page 11: Rename Layouts And Channels

    7.1. Hit the save button 7.2. Click on the sign out button at the top right of the page 7.3. Sign back into software using the following (case sensitive on both username and password) 7.3.1. Username: idi 7.3.2. Password: Password55 L280-0974 REV C www.imagediagnostics.com...

  • Page 12: Monitor Video Setting Menu Navigation

    Installation Guide ilex Picture Picture 1024x768@ 100 Hz Profile Factory Monitor Video Setting Menu Navigation Picture Brightness advanced Barco Monitor Contrast Input select Saturation (taken from the monitor’s User Guide #K5902133 (451920612483)-02) Configuration Color temperature 6500K Color space ITU709 View showing the front controls of the Barco Monitor...
  • Page 13 6500K Brightness decrease • 7600K Brightness increase • 9300K Daily operation Installation Guide ilex • Native 4.5.1 Main source selection • User To quickly select the main source Factory calibration – White point: Overview of shortkeys The White Color points associated with the Color Temperature: 5600K, 6500K, 7600K or 9300K are Press the key to scroll through all the possible input signals and quickly select the main source.
  • Page 14 Navigate to the Picture Advanced menu. Enter the Image Flip submenu. The available main sources for your display are: Select one of the available options and confirm. • Installation Guide ilex • 5.2.6 Screen Resolution • DisplayPort • HDMI–1 (MDSC-8255 LED version only) About screen resolution •...

  • Page 15: Fsn Monitor

    Installation Guide ilex FSN Monitor (taken from FSN User Manual FSN1995-7/2019) L280-0974 REV C www.imagediagnostics.com Page 13...
  • Page 16 Installation Guide ilex L280-0974 REV C www.imagediagnostics.com Page 14...
  • Page 17 Installation Guide ilex L280-0974 REV C www.imagediagnostics.com Page 15...
