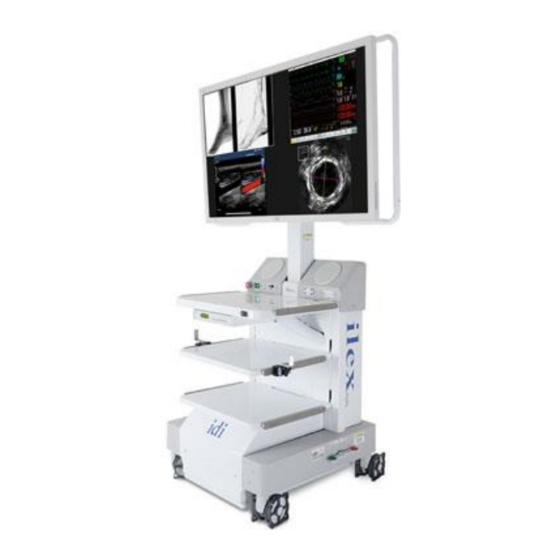

idi ilex 55 Installation Manual

For units using msv2 video signal router
Hide thumbs Also See for ilex 55:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Guide
For units using MSV2 video signal router
The text of this manual was originally written, approved and published by the manufacturer in English. The information and
images in this document are proprietary to IDI and is only for use for and by IDI representatives or their Agents.
Made in the USA
L280-0974 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ilex 55 and is the answer not in the manual?

Questions and answers

Related Manuals for idi ilex 55

Summary of Contents for idi ilex 55

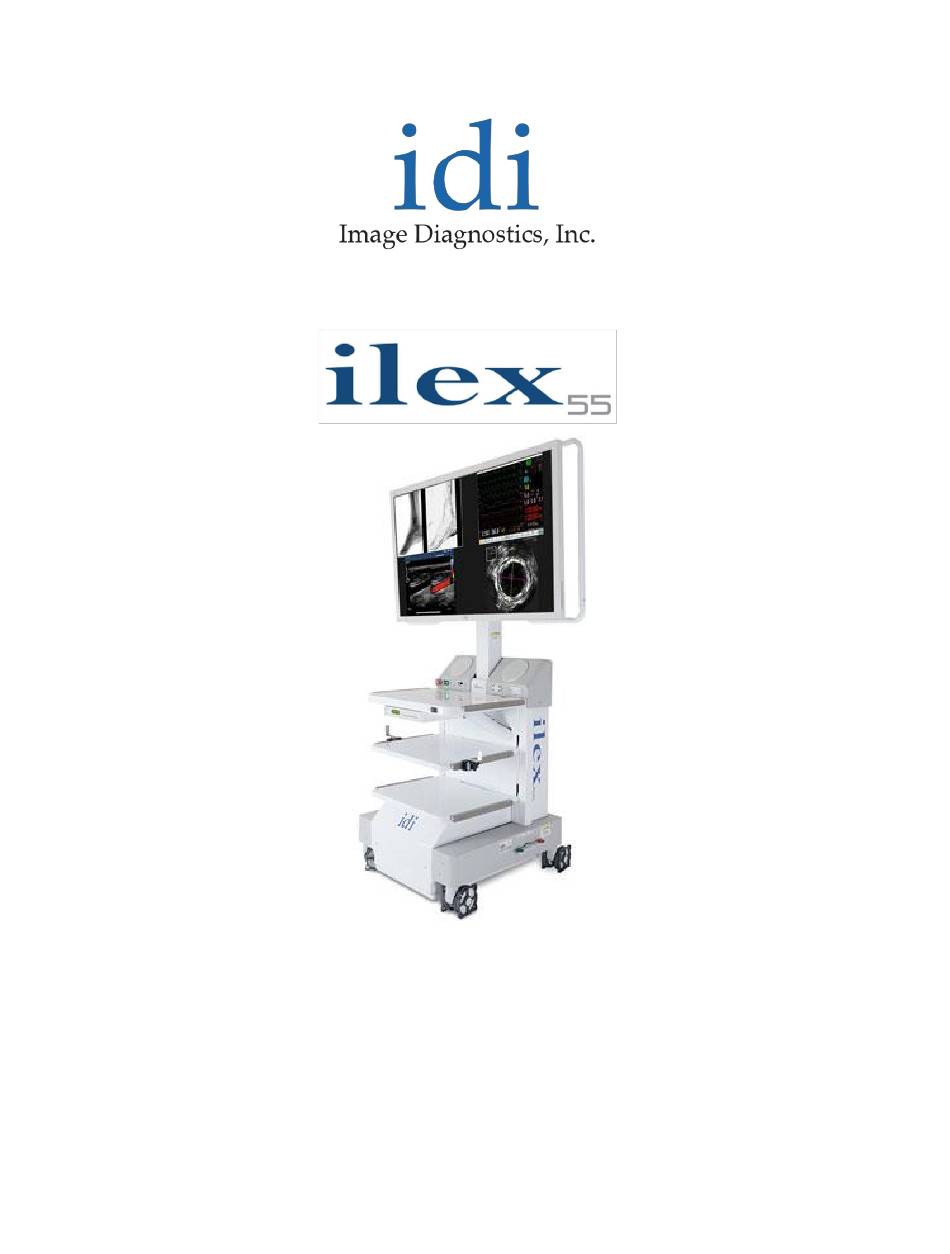

  • Page 1 The text of this manual was originally written, approved and published by the manufacturer in English. The information and images in this document are proprietary to IDI and is only for use for and by IDI representatives or their Agents.

  • Page 2: Table Of Contents

    ilex Installation Guide Table of Contents System Components ilex55......................1 Other ilex feature programming ...................... 1 Video Inputs ............................ 3 Factory Preset Layouts ........................5 Accessing Onscreen Keyboard ....................... 7 Modifying Layouts.......................... 7 Assigning Channels to Window Location ..................9 Cropping Windows ........................

  • Page 3: System Components Ilex55

    Installation Guide ilex System Components ilex55 31" 790mm Power Switches In the event power switches have been toggled “OFF”, please use the following to turn power on to the different 55in components. To power up the monitor there is a switch located on the rear of the monitor where video inputs 140cm are.
  • Page 4 Installation Guide ilex To use the speakers with an external audio device with Bluetooth® capability, perform the following steps: 1. Ensure that the green toggle power switch is on and lit up. 2. On the cart’s audio control panel, ensure that the “INPUT SELECT” switch is set to “BT.” 3.

  • Page 5: Video Inputs

    Installation Guide ilex Video Inputs The ilex55 has 4 different channel input capabilities Video inputs are connected to the rear of the ilex55 then routed scalers and into the controller, the MSV2 (Multiview scalar). Basic Layout navigation is done in the “Guest” mode of the system. Changing or programing of the layout format is available only in the “Administrator”...
  • Page 6 Installation Guide ilex Basic “Guest” mode Screen Layouts Single Channel Inputs Administrator mode L280-0974 REV A www.imagediagnostics.com Page 4...

  • Page 7: Factory Preset Layouts

    Installation Guide ilex Factory Preset Layouts By design each preset has the capability of showing 4 windows, A, B, C, & D. Each of the windows can be cropped, resized, relocated, and assigned one of the 4 channel inputs. Channels 3 & 4 can also accept DisplayPort video inputs when required.
  • Page 8 Installation Guide ilex For each of the preset layouts the windows can be assigned channel 1,2,3 or 4. Screens can be rotated clockwise or counterclockwise within a given layout. Image Rotation buttons L280-0974 REV A www.imagediagnostics.com Page 6...

  • Page 9: Accessing Onscreen Keyboard

    2.1.2. Password: 123123123! 2.2. To login as guest/operator mode use the following credentials (case sensitive, and don’t forget exclamation at end) 2.2.1. Username: idi 2.2.2. Password: Password55 3. In general, always remember to Click apply and save, otherwise work will be lost.
  • Page 10 Installation Guide ilex 3.1.2. On the right side of the screen select the desired user in the drop-down menu. Click on the new layout tab, then select one of the predefined layouts with the correct number of channels required for layout. Avoid looking at the live screen at this point as the images will be scaled incorrectly, this will be autocorrected in the next few steps 3.1.3.

  • Page 11: Assigning Channels To Window Location

    Installation Guide ilex 3.1.4.5. In the edit tab, set the layer requirements as needed by clicking on the green box and selecting a layer in the drop-down menu. L4 is considered the top layer, L1 is bottom most layer. 3.1.4.6. To add a channel to a given layout click on the letter in the edit tab and select turn on or off.

  • Page 12: Cropping Windows

    Installation Guide ilex Cropping Windows 5. Steps used to crop windows and channels 5.1. Go to Preset and channel mode (2 tab, pencil icon) 5.2. Locate the drop-down menu called preset and channel 5.3. Drop down and select CH1 5.4. Click on the input cropping slider to activate cropping 5.5.

  • Page 13: Rename Layouts And Channels

    7.1. Hit the save button 7.2. Click on the sign out button at the top right of the page 7.3. Sign back into software using the following (case sensitive on both username and password) 7.3.1. Username: idi 7.3.2. Password: Password55 L280-0974 REV A www.imagediagnostics.com...

  • Page 14: Monitor Menu Navigation

    Installation Guide ilex Monitor Menu Navigation Menu Access Points • Lower Right Side • Remote Control The following information is from FSN manual, FSN1995-7/2019, for additional monitor information please reference FSN monitor manual. L280-0974 REV A www.imagediagnostics.com Page 12...
  • Page 15 Installation Guide ilex L280-0974 REV A www.imagediagnostics.com Page 13...
  • Page 16 Installation Guide ilex L280-0974 REV A www.imagediagnostics.com Page 14...
  • Page 17 Installation Guide ilex L280-0974 REV A www.imagediagnostics.com Page 15...

  • Page 18: General Cleaning

    Installation Guide ilex General Cleaning Tools: Soft cloth and approved cleaner: o Sodium hypochlorite (generic household bleach) in a solution of 5.25% sodium hypochlorite diluted between 1:10 and 1:100 with water. o Alcohol (generic). o Envirocide. ™ Notes: • For the cleaning of monitor or shelf equipment, please consult corresponding literature for these devices.
  • Page 19 Installation Guide ilex o 2. Remove fingerprints or grease using a lint-free, non-abrasive soft cotton cloth that is lightly moistened with plain water or a mild commercial glass cleaning product suited for coated glass surfaces. o 3. Gently wipe dry with a dry cloth. •...

  • Page 20: Large Monitor Cleaning Barco Only

    Installation Guide ilex • Isopropyl alcohol with concentration < 5% • Household bleach (generic sodium hypochlorite, solutions of 5.25% sodium hypochlorite diluted with water between 1:10 and 1:100) • Precise Hospital Foam Cleaner Disinfect Large Monitor Cleaning Barco Only Cleaning Instructions •...
  • Page 21 Installation Guide ilex • Strong alkalis lye, strong solvents • Acid • Detergents with fluoride • Detergents with ammonia at higher concentration > 1.6% • Detergents with abrasives • Steel wool • Sponge with abrasives • Steel blades • Cloth with steel thread L280-0974 REV A www.imagediagnostics.com Page 19...
