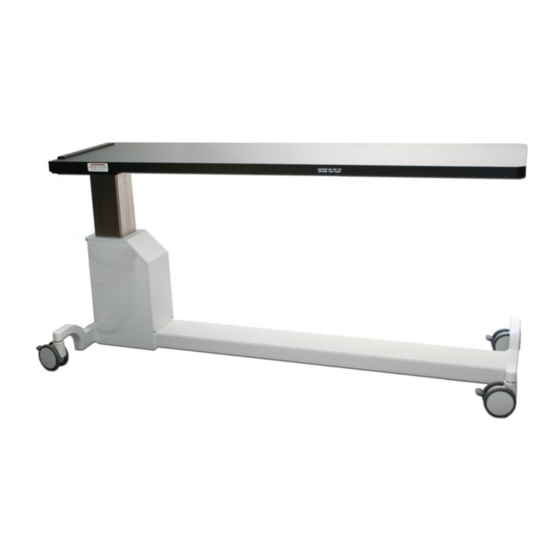

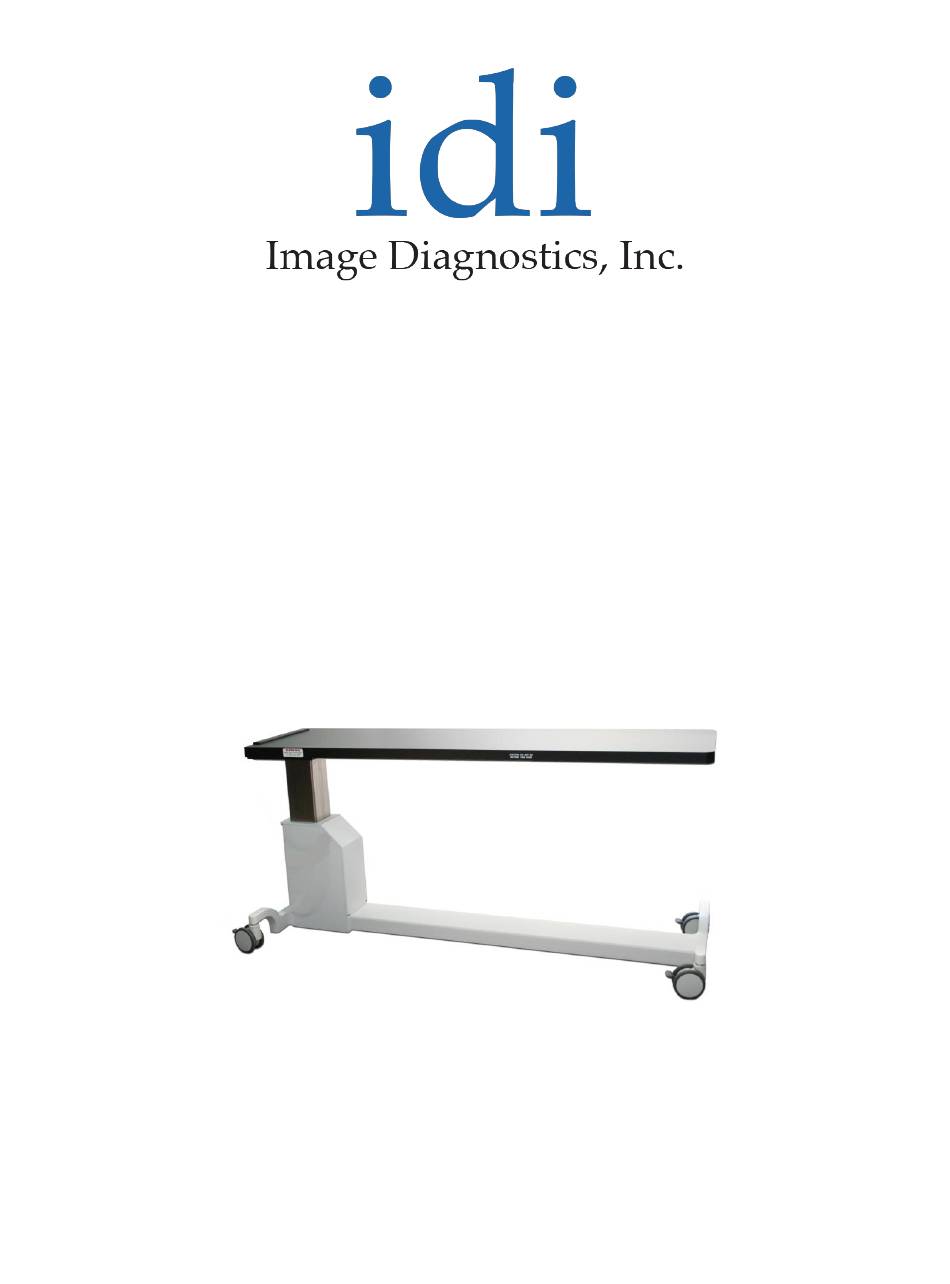

- Page 1 Aspect100E Mobile Imaging Table Operator Manual Made in the USA...
-
Page 2: Table Of Contents
Aspect 100E Operator Manual Table of Contents PRODUCT DATA ............................1 INTRODUCTION ............................2 CUSTOMER SUPPORT ........................... 3 SYMBOLS AND DATA PLATE ......................... 4 SPECIFICATIONS ............................3 ELECTROMAGNETIC COMPATIBILITY STATEMENT ..................2 SETUP ................................3 SAFETY HAZARDS............................4 SAFETY HAZARD ALERTS ..........................5 SAFETY INSTRUCTIONS .......................... -
Page 3: Product Data
Aspect 100E Operator Manual PRODUCT DATA • Low attenuation carbon fiber tabletop (aluminum equivalency is less than 1mm) • Locking swivel casters • Low attenuation table pads • Hand operator control is standard • Optional foot operator control L100-3059 REV A www.imagediagnostics.com... -
Page 4: Introduction
Aspect 100E Operator Manual INTRODUCTION Overview This manual pertains to the specified product only. It is intended for qualified medical personnel who have been trained in the use of medical equipment. It is not designed to replace or substitute for certified training in the application of this equipment. Functional capabilities and operation of the equipment described herein which can be employed in a variety of diagnostic, therapeutic, and surgical applications. -
Page 5: Customer Support
For technical assistance, call IDI at (978) 829-0009 or send fax to (978) 829-0027. Be prepared to give the complete model and serial number found on the dataplate on the table base at the time of contact. -
Page 6: Symbols And Data Plate
Aspect 100E Operator Manual SYMBOLS AND DATA PLATE Intertek Testing Service The system was tested and found to be in compliance with the requirements of all relevant directives and standards in effect within the European Union at the time of manufacture. Attention! Consult accompanying documents. - Page 7 Aspect 100E Operator Manual Recycle Some of the material can be recycled rather than discarded. Not for Patient Transport The table should not be relocated with a patient on it nor should it be used to move a patient. Do Not Sit This label is found on parts that are not designed to support the sitting weight of a patient.
-
Page 8: Specifications
Aspect 100E Operator Manual SPECIFICATIONS Mode of Operation: For continuous operation with short time loading Duty Cycle: 10% (6 min/hr) Type of Equipment: Class I Type B (as defined by IEC 60601-1, UL 60601-1, EN 60601-1, CSA 601.1, IEC 60601-2-32:1994 and IEC 60601-2-46) Type B protection against electrical shock Complies with FDA standards Electrical:... -
Page 9: Electromagnetic Compatibility Statement
Aspect 100E Operator Manual ELECTROMAGNETIC COMPATIBILITY STATEMENT This equipment may generate and use radio frequency energy. The equipment must be installed and used according to the manufacturer’s instructions in order to avoid radio frequency interference. If this equipment generates or receives interference: •... -
Page 10: Setup
Aspect 100E Operator Manual SETUP Unpack No special handling is required for unpacking this equipment at the site. Conventional shipping materials are used. Roll the table down a temporary ramp (if table is mobile) or lift off pallet with a forklift. When using a forklift, pad the forks to protect the paint. -
Page 11: Safety Hazards
Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc. 310 Authority Drive Fitchburg, MA 01420 Or call IDI at (978) 829-0009 or send fax to (978) 829-0027. Or call toll-free at (877) 304-5434. L100-3059 REV A www.imagediagnostics.com... -
Page 12: Safety Hazard Alerts
Aspect 100E Operator Manual SAFETY HAZARD ALERTS Alert Circumstances for Use DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or... -
Page 13: Safety Instructions
Aspect 100E Operator Manual SAFETY INSTRUCTIONS This symbol, when found marked on the equipment means: ”Attention, consult accompanying documentation.” This manual should be accessible to all personnel installing, operating, or servicing this equipment. Only a qualified technician may install or maintain this equipment. Only qualified persons may operate this equipment. - Page 14 Aspect 100E Operator Manual CAUTION Do not use table for patient transport. CAUTION During operation, listen for any unusual sounds and watch for uneven operation. CAUTION Ensure that the tabletop does not contact other equipment as it moves. CAUTION Do not sit on the table top at the head of the table. CAUTION Do not place or store any containers or large items underneath the tabletop.
-
Page 15: Accessories
Aspect 100E Operator Manual ACCESSORIES CRESCENT FACE CUSHION (supplied with some models) Use this pad for patient comfort when the patient will be positioned face down. Place a disposable cover over the pad. LATEX Crescent Face Cushion Head Pad Part Number C000-0597 Disposable Covers Part Number C000-0598 (box of 50) L100-3059 REV A... - Page 16 Aspect 100E Operator Manual PATIENT RESTRAINT STRAPS SLIDE THE RESTRAINT STRAP OVER THE END OF THE TABLETOP WITH THE SMALL RETAINING STRIP OVER THE TOP SURFACE OF THE TABLETOP. PHOTO OF STRAP ARRANGEMENT: NOTE: Strap configuration shown above is recommended, however, patient restraint is a case-by-case condition.
- Page 17 Aspect 100E Operator Manual CLAMP-ON ACCESSORY RAIL AND ARMBOARD (OPTION) WARNING! 25lbs (11kg) Maximum Load To install clamp to tabletop: - Turn knob counterclockwise (as viewed from above) to open clamp enough to slip onto tabletop - Turn knob clockwise to tighten clamp to tabletop A –...
- Page 18 Aspect 100E Operator Manual RADIATION SHIELDS, SADDLE STYLE (OPTIONAL) • 24X80 Straight Tabletop Shield Part Number: A610-096 INSTALLATION INSTRUCTIONS FOR 24” SADDLE STYLE RADIATION SCATTER SHIELD (0.5mm PbEq) Note: Individual shields have hook fasteners that are engaged into the loop fasteners of the saddle.
- Page 19 Aspect 100E Operator Manual • 22X80 Facial Cutout Tabletop Shield Part Number: A610-092 INSTALLATION INSTRUCTIONS FOR 22” SADDLE STYLE RADIATION SCATTER SHIELD (0.5mm PbEq) Note: Individual shields have hook fasteners that are engaged into the loop fasteners of the saddle. Overlap shields as shown. Step A: Place the saddle with the loop fastener side “up”...
- Page 20 Test procedure and schedule to be the responsibility of the appropriate department of the facility where used. IDI imaging tables are designed to provide excellent fluoroscopic imaging access with mobile C-arms. Whenever the table is used for procedures involving the...
- Page 21 Aspect 100E Operator Manual OPERATOR CONTROLS Table operates on 120 Vac or 240 Vac (as noted on dataplate) and incorporates 24Vdc battery backup. It is recommended that power be applied at all times, even when not in use to keep a proper charge on the batteries and achieve maximum battery life.
- Page 22 Aspect 100E Operator Manual • FOOT CONTROL (Optional) This device is used by the operator to move the tabletop by depressing and holding the appropriate button until the patient or tabletop is in the desired position. TABLETOP MOTIONS Depressing and maintaining the UP button on the remote, or UP foot switch, or toggling the panhandle rocker switch to the UP position causes upward tabletop motion until the upper limit is reached.
- Page 23 Aspect 100E Operator Manual BATTERY FUNCTION (Motorized tables) When AC power is applied, the battery will begin charging until the battery reaches full capacity. When it does, the charging will taper off. If the power goes out, the table will automatically switch to battery back-up mode. An audible tone is sounded when using an operator control function if the battery charge is low.
- Page 24 Aspect 100E Operator Manual CLEANING STEPS 1. Lower the tabletop to the lowest position. 2. Power cord must be plugged in to protect the socket. 3. Remove any accessories. 4. Wipe off any access fluids with a water dampened cloth or sponge. 5.
-
Page 25: Maintenance
Aspect 100E Operator Manual MAINTENANCE ”Qualified Technician” • All maintenance procedures should be done by an experienced technician with demonstrated knowledge and skills (electrical and mechanical) relative to this type of equipment. • This individual must have access to this manual and the proper tools. ROUTINE MAINTENANCE •... -
Page 26: User Replacement Items
Aspect 100E Operator Manual USER REPLACEMENT ITEMS These are easily replaced by the operator. • Standard Tabletop Pad Pads are held in place by hook and loop fasteners. Simply pull pad up gently to remove. New replacement pads are supplied with new self-adhesive fasteners installed and new mating pieces for the tabletop. -
Page 27: Disposal Of Components
Operator Manual DISPOSAL OF COMPONENTS IDI medical tables are made up of mostly steel, copper and aluminum parts which are easily recycled. It is recommended that some components be disassembled before disposal for recycling. The table below lists components typically found in IDI products but varies with model and options. -
Page 28: Warranty
Aspect 100E Operator Manual WARRANTY Warranty details for IDI Products can be obtained directly from Image Diagnostics, Inc. Image Diagnostics, Inc. 310 Authority Drive Fitchburg, MA 01420 Or call IDI at (978) 829-0009 or Toll Free (877) 304-5434. The fax number for IDI is (978) 829-0027.
