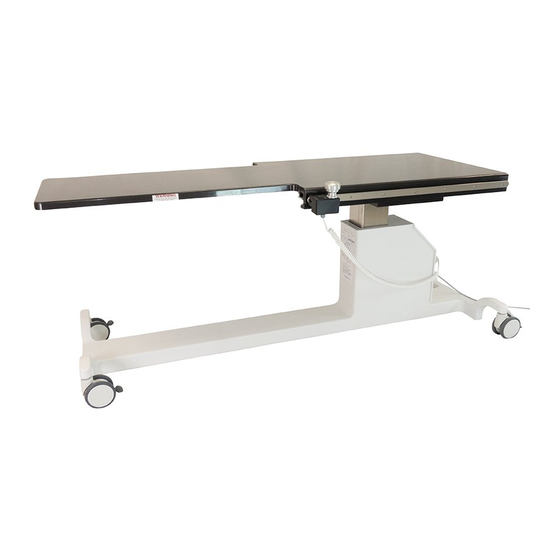

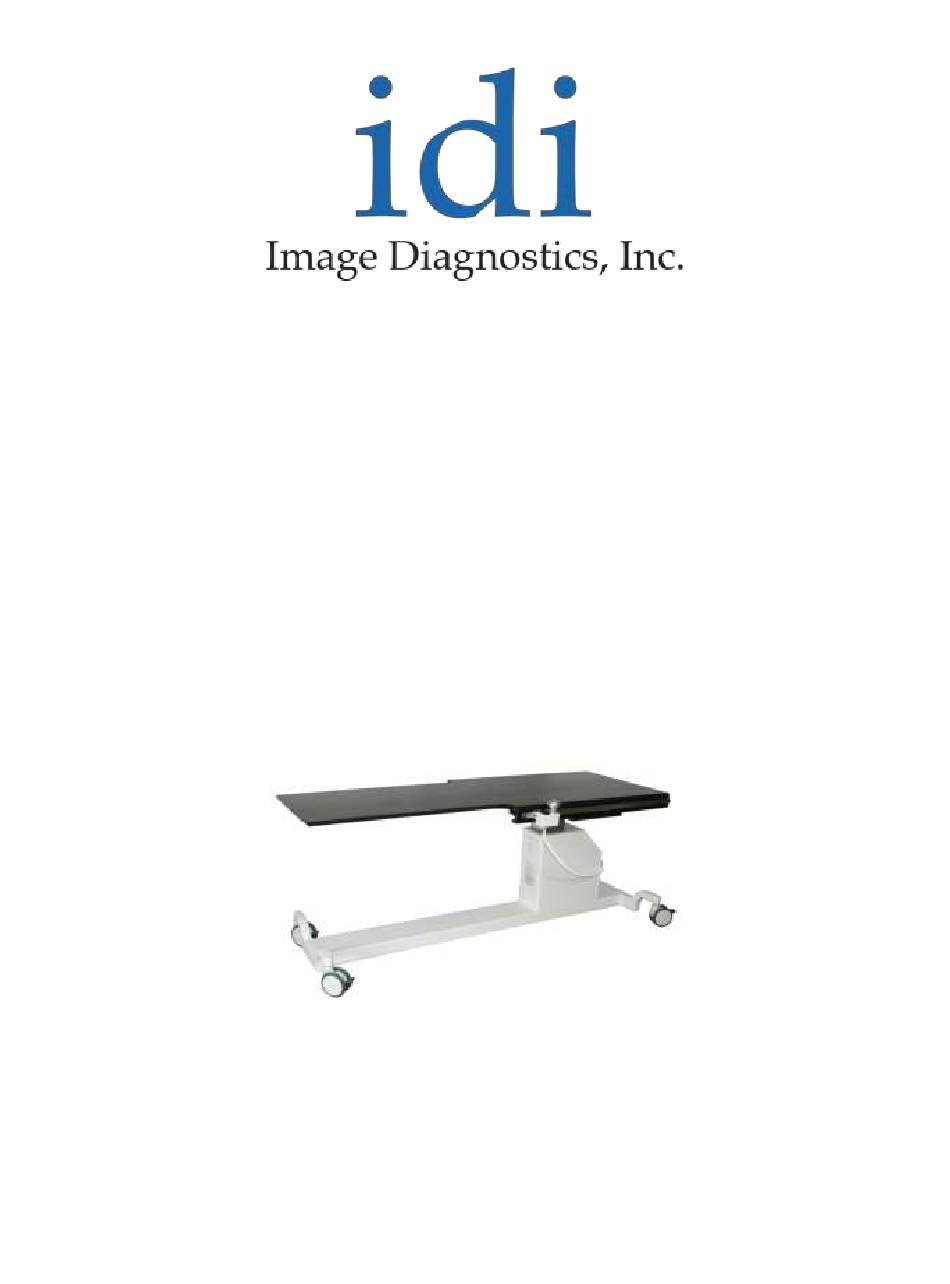

- Page 1 Aspect100-4 Mobile Imaging Table Operator Manual...
-
Page 2: Table Of Contents
Aspect 100-4 Operator Manual Table of Contents PRODUCT DATA ............................1 INTRODUCTION ............................2 CUSTOMER SUPPORT ........................... 3 SYMBOLS AND DATA PLATE ......................... 4 SPECIFICATIONS ............................6 ELECTROMAGNETIC COMPATIBILITY STATEMENT ..................7 SETUP ................................8 SAFETY HAZARDS............................9 SAFETY HAZARD ALERTS ..........................10 SAFETY INSTRUCTIONS .......................... -
Page 3: Product Data
Aspect 100-4 Operator Manual PRODUCT DATA • Low attenuation carbon fiber tabletop • Tabletop: 76 cm x 203 cm (30 in x 80 in) 53 cm (21 in) upper abdominal area • Longitudinal travel: 102 cm (40 in) • Transverse tabletop travel: 25 cm (10 in) •... -
Page 4: Introduction
Aspect 100-4 Operator Manual INTRODUCTION Overview This manual pertains to the specified product only. It is intended for qualified medical personnel who have been trained in the use of medical equipment. It is not designed to replace or substitute for certified training in the application of this equipment. Functional capabilities and operation of the equipment described herein which can be employed in a variety of diagnostic, therapeutic, and surgical applications. -
Page 5: Customer Support
For technical assistance, call IDI at (978) 829-0009 or send fax to (978) 829-0027. Be prepared to give the complete model and serial number found on the dataplate on the table base at the time of contact. -
Page 6: Symbols And Data Plate
Aspect 100-4 Operator Manual SYMBOLS AND DATA PLATE Intertek Testing Service The system was tested and found to be in compliance with the requirements of all relevant directives and standards in effect within the European Union at the time of manufacture. Attention! Consult accompanying documents. - Page 7 Aspect 100-4 Operator Manual Recycle Some of the material can be recycled rather than discarded. Not for Patient Transport The table should not be relocated with a patient on it nor should it be used to move a patient. Do Not Sit This label is found on parts that are not designed to support the sitting weight of a patient.
-
Page 8: Specifications
Aspect 100-4 Operator Manual SPECIFICATIONS Mode of Operation: For continuous operation with short time loading Duty Cycle: 10% (6 min/hr) Type of Equipment: Class I Type B (as defined by IEC 60601-1, UL 60601-1, EN 60601-1, CSA 601.1, IEC 60601-2-32:1994) Type B protection against electrical shock Electrical: Supply Voltage: 120±5% Vac 60Hz or 23010% Vac 50Hz... -
Page 9: Electromagnetic Compatibility Statement
Aspect 100-4 Operator Manual ELECTROMAGNETIC COMPATIBILITY STATEMENT This equipment may generate and use radio frequency energy. The equipment must be installed and used according to the manufacturer’s instructions in order to avoid radio frequency interference. If this equipment generates or receives interference: •... -
Page 10: Setup
Aspect 100-4 Operator Manual SETUP Unpack No special handling is required for unpacking this equipment at the site. Conventional shipping materials are used. When using a forklift, pad the forks to protect the paint. Lift from under the metal base. Recycle or dispose of shipping material per local regulations. -
Page 11: Safety Hazards
Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc. 310 Authority Drive Fitchburg, MA 01420 Or call IDI at (978) 829-0009 or send fax to (978) 829-0027. Or call toll-free at (877) 304-5434. L100-3058 REV A www.imagediagnostics.com... -
Page 12: Safety Hazard Alerts
Aspect 100-4 Operator Manual SAFETY HAZARD ALERTS Alert Circumstances for Use DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or... -
Page 13: Safety Instructions
Aspect 100-4 Operator Manual SAFETY INSTRUCTIONS This symbol, when found marked on the equipment means: ”Attention, consult accompanying documentation.” This manual should be accessible to all personnel installing, operating, or servicing this equipment. Only a qualified technician may install or maintain this equipment. Only qualified persons may operate this equipment. - Page 14 Aspect 100-4 Operator Manual CAUTION Do not use table for patient transport. CAUTION During operation, listen for any unusual sounds and watch for uneven operation. CAUTION Ensure that the tabletop does not contact other equipment as it moves. CAUTION Do not sit on the table top at the head of the table. CAUTION Do not place or store any containers or large items underneath the tabletop.
-
Page 15: Accessories
Aspect 100-4 Operator Manual ACCESSORIES • CRESCENT FACE CUSHION (supplied with some models) Use this pad for patient comfort when the patient will be positioned face down. Place a disposable cover over the pad. LATEX Crescent Face Cushion Head Pad Part Number C000-0597 Disposable Covers Part Number C000-0598... - Page 16 Aspect 100-4 Operator Manual • Patient Restraint Straps SLIDE THE RESTRAINT STRAP OVER THE END OF THE TABLETOP WITH THE SMALL RETAINING STRIP OVER THE TOP SURFACE OF THE TABLETOP. PHOTO OF STRAP ARRANGEMENT: NOTE: Strap configuration shown above is recommended, however, patient restraint is a case-by-case condition.
- Page 17 Aspect 100-4 Operator Manual • CLAMP-ON ACCESSORY RAIL AND ARMBOARD (OPTION) WARNING! 25 LBS (11 kg) Maximum Load To install clamp to tabletop: - Turn knob counterclockwise (as viewed from above) to open clamp enough to slip onto tabletop - Turn knob clockwise to tighten clamp to tabletop A –...
- Page 18 Aspect 100-4 Operator Manual • Tabletop pads • Tabletop Pad Part Number X100-2650 Black 53.3/76.2cm X 203cm X 5.1cm thick (21/30in X 80in X 2in thick) LATEX Not made with natural rubber latex Pads are held in place by hook and loop fasteners. Simply pull pad up gently to remove. New replacement pads are supplied with new self-adhesive fasteners installed and new mating pieces for the tabletop or extension.
- Page 19 Aspect 100-4 Operator Manual • Armboard ROTATES TO ANY POSITION USING TWO ARMBOARDS SLIP BASE UNDER TABLE PAD. UNIT IS HELD IN PLACE BY THE PATIENT'S WEIGHT. • Arm Board Option - Part Number A310-059 with hook & loop restraint straps and slip- on pad.
- Page 20 Aspect 100-4 Operator Manual • VAB Armboard STRAP PASSES THROUGH SELECTED LOOP ON BOTTOM OF PAD HOOK SIDE UP HOOK PIN ON TABLETOP ARMBOARD TABLETOP ARMBOARD SLIPS UNDER TABLETOP PATIENT PAD (IF EQUIPPED) ROTATE ARMBOARD AS NEEDED, KEEPING PIN IN CONTACT WITH TABLETOP VASCULAR ACCESS BOARD Carbon fiber construction.
- Page 21 Test upon receipt and at regular intervals to insure shielding integrity. IDI imaging tables are designed to provide excellent fluoroscopic imaging access with mobile C-arms. Whenever the table is used for procedures involving the use of a mobile C-arm, or any other equipment...
- Page 22 Aspect 100-4 Operator Manual • Catheter Tray CAUTION Not for patient support. Do not exceed 9kg/20LB weight limit. The catheter tray securely hooks on to the accessory rail mounting hardware. • Catheter Tray Option Part Number A100-814 L100-3058 REV A www.imagediagnostics.com...
-
Page 23: Operator Controls
Aspect 100-4 Operator Manual OPERATOR CONTROLS AC SWITCH Normally “ON” when using table or charging batteries. PANHANDLE (STANDARD) This device clamps on the tabletop accessory rail and is movable. Depressing the mushroom shaped handle releases the brakes that stop lateral and longitudinal motion of the tabletop. While holding the handle depressed, the tabletop can be repositioned. - Page 24 Aspect 100-4 Operator Manual OPERATOR FOOT CONTROL (OPTIONAL) Depressing the left pedal releases the brakes that stop lateral motion of the tabletop. While keeping the pedal down, the tabletop can be repositioned manually. Depressing the center pedal or the right pedal will cause the tabletop to move vertically Note! The foot control 4-float brake...
-
Page 25: Electric System
Aspect 100-4 Operator Manual ELECTRIC SYSTEM SAFE VOLTAGES A - AC Power Cord B - AC Power Switch, Power On Indicator & AC Fuses C –Power Supply & Relay D – Control Box (Batteries Inside) E - Panhandle and Brake Release F - Up/Down Rocker Switch G –... -
Page 26: Battery Function
Aspect 100-4 Operator Manual BATTERY FUNCTION When AC power is applied, the battery will begin charging until the battery reaches full capacity. When it does, the charging will taper off. If the power goes out, the table will automatically switch to battery back-up mode. An audible tone is sounded when using an operator control function if the battery charge is low. -
Page 27: General Cleaning
Aspect 100-4 Operator Manual GENERAL CLEANING After each procedure, the table should be carefully cleaned The disinfectant cleaners and cleaning steps on this page apply to all the parts of the table. • Clean tabletop, accessories, and painted surfaces with a clean cloth dampened with an approved cleaner (see list below). - Page 28 Aspect 100-4 Operator Manual CLEANING THE OPTIONAL RADIATION SHIELD CAUTION: READ LABEL Observe cleaning product cautions found on product label. After each procedure, the radiation shield should be carefully cleaned CLEANING STEPS 1. Remove the shield and lay it flat before using the recommended cleaner in an adequately ventilated area.
-
Page 29: Maintenance
Aspect 100-4 Operator Manual MAINTENANCE ”Qualified Technician” • All maintenance procedures should be done by an experienced technician with demonstrated knowledge and skills (electrical and mechanical) relative to this type of equipment. • This individual must have access to this manual and the proper tools. ROUTINE MAINTENANCE •... -
Page 30: Disposal Of Components
Operator Manual DISPOSAL OF COMPONENTS IDI medical tables are made up of mostly steel, copper and aluminum parts which are easily recycled. It is recommended that some components be disassembled before disposal for recycling. The table below lists components typically found in IDI products but varies with model and options. -
Page 31: Warranty
3. What Is Not Covered Bv This Warranty: IDI does not warrant (i) any Product or part not sold by IDI or its authorized representatives, (ii) defects caused by failure to provide a suitable installation environment... - Page 32 Agreement. 8. Warranty Terms Subject to Change: IDI reserves the right to modify the terms and conditions of its Official Warranty from time to time. The warranty terms and conditions, and IDI's obligations under such, will be determined based on the prevailing version of IDI's Official Warranty in effect at the date of purchase order.
- Page 33 Purchaser (Dealer). 3. What Is Not Covered By This Warranty: IDI does not warrant (i) any Product or part not sold by IDI or its authorized Distributors or representatives, (ii) defects caused by failure to provide a suitable installation...
- Page 34 Aspect 100-4 Operator Manual 8. Warranty Terms Subject to Change: IDI reserves the right to modify the terms and conditions of its Official Warranty from time to time. The warranty terms and conditions, and IDI's obligations under such, will be determined based on the prevailing version of IDI's Official Warranty in effect at the date of purchase order.
