idi 1000F Series Installation And Maintenance Manual

Monitor suspension system
Hide thumbs Also See for 1000F Series:
Table of Contents

Advertisement

Quick Links

Download this manual

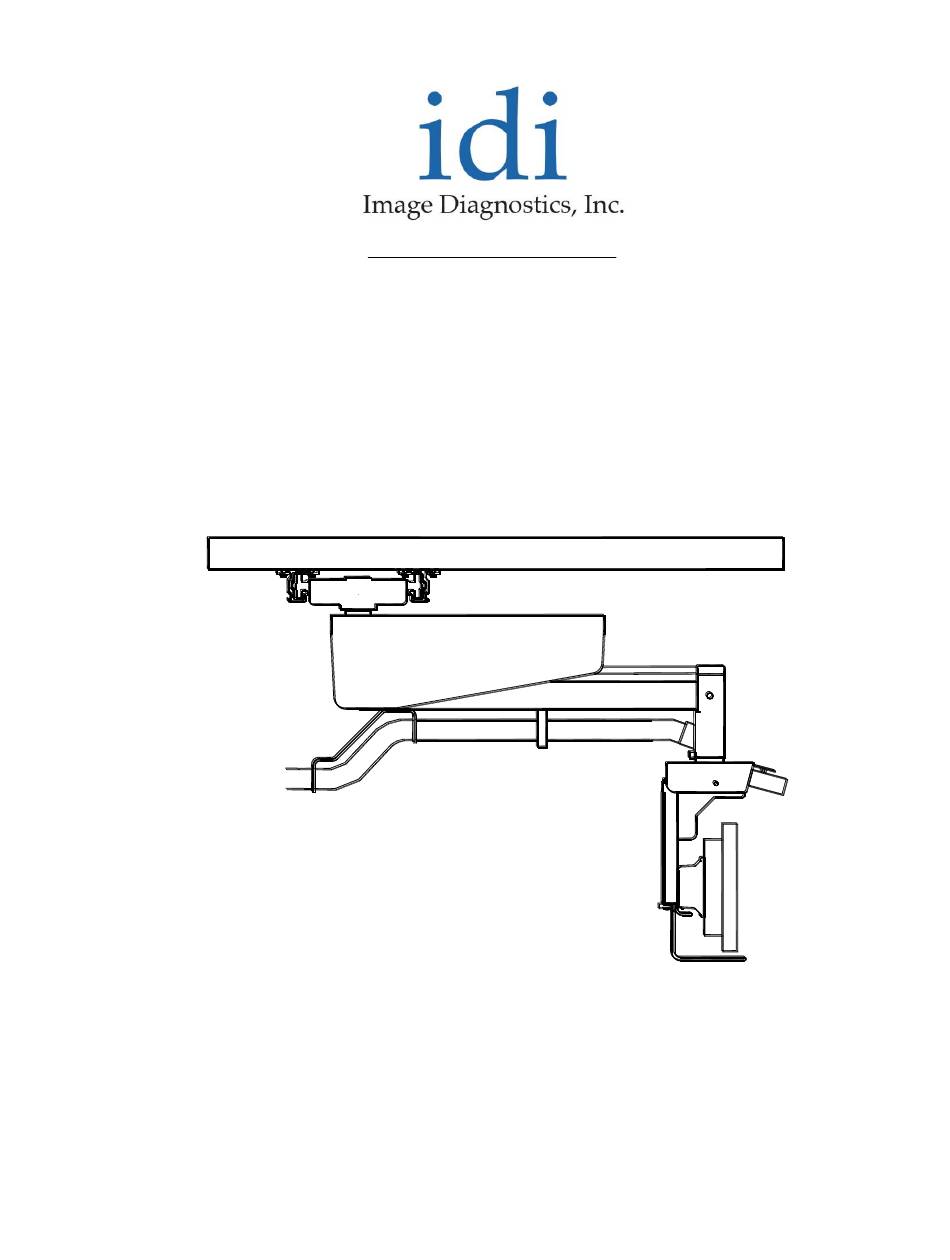

Manufacturer of Quality Medical Products
IDI 1000F Series Monitor Suspension System
Model IDI 1000F-1 thru 1000F-6
With Adapter to Shimadzu CH200
Installation and Maintenance Guide
The text of this manual was originally written, approved and published by the
manufacturer in English.
The information in this manual is subject to change without notice.
1
D000-473 REV D
DEC-2018
Image Diagnostics, Inc.
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000F Series and is the answer not in the manual?

Questions and answers

Related Manuals for idi 1000F Series

Summary of Contents for idi 1000F Series

  • Page 1 Manufacturer of Quality Medical Products IDI 1000F Series Monitor Suspension System Model IDI 1000F-1 thru 1000F-6 With Adapter to Shimadzu CH200 Installation and Maintenance Guide The text of this manual was originally written, approved and published by the manufacturer in English.

  • Page 2: Table Of Contents

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 Contents A. INTRODUCTION ....................3 B. SYMBOLS ......................4 C. GENERAL SAFETY ................... 5 D. SAFETY HAZARDS ................... 6 E. INSTALLATION ....................7 F. CLEANING THE EQUIPMENT ..............20 G.

  • Page 3: Introduction

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 A. INTRODUCTION The IDI 1000F Flat Panel Suspension System transports monitors used in medical imaging procedures. The system features a counterbalanced arm with vertical travel and internal cable routing. A dual-axis flat panel monitor mount permits independent panel mounting and positioning.

  • Page 4: Symbols

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 B. SYMBOLS Consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious injury to patient, user, and damage to equipment.

  • Page 5: General Safety

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 C. GENERAL SAFETY Attention, consult accompanying documents. Failure to follow these instructions can cause accidents resulting in serious injury to patient, user, and damage to equipment.

  • Page 6: Safety Hazards

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 D. SAFETY HAZARDS Installers and Operators using this equipment should understand the safety issues and operating instructions provided. Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc.

  • Page 7: Installation

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 E. INSTALLATION UNPACK No special handling is required for unpacking this equipment at the site. Conventional shipping materials are used. Recycle or disposal of shipping material per local regulations...
  • Page 8 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 1. To assemble the bridge structure in place you must first load each adapter subassembly onto the left and right longitudinal rails. If you have sufficient space between the ends of the longitudinal rails and the wall you can simply roll each adapter into the rails.
  • Page 9 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 INSTALL BRIDGE STRUTS 1. Attach the two painted struts that make up the bridge between the rail adapter subassemblies using flathead screws and strut nuts as shown in the cut-away view at the bottom of Figure 3.
  • Page 10 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 5. Loosely attach rail clips to the inner rail clip locations shown in Figure 3 on the rail adapter subassemblies with mounting hardware shown in Figure 4.
  • Page 11 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 INSTALL RAIL END PLATE 1. Install only one rail end plate at the far end of the rails, making sure rubber bumper faces in towards the transverse rails. See Figure 6. Use LOCTITE #242 on all threads.
  • Page 12 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 INSTALL MONITOR MOUNT NOTE TO INSTALLER: It is important that the load be balanced on the monitor mount. Take into account any differences in size and weight of the monitors.
  • Page 13 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 4. Install the thinner stainless-steel thrust ring onto the rotation bearing from inside the monitor mount frame. 5. Install six bolts with lockwashers through the rotation cap, then through the rotation bearing and into the pivot tube of the core assembly.
  • Page 14 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 1. To attach a monitor to the system, first install mounting screws into the top two holes in the monitor leaving a gap below the head of the screw big enough to fit over the mounting bracket to which it is being mounted.
  • Page 15 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 SET ROTATIONAL LIMITS If desired, the rotational stop pin can be relocated to one of four possible mounting locations. See Figure 10. FOUR POSSIBLE...
  • Page 16 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 MAIN GROUND WIRE First attach main ground wire FROM SERVICE under split lockwasher and nut "A". Attach all other ground wires NUT "B" between nut "A", lockwashers, and nut "B".
  • Page 17 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 2. Apply LOCTITE #242 to threads on set screws and then tighten until secured in place. 3. Remove retainer by taking out the both mounting screws.
  • Page 18 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 DRESS CABLES 1. When the monitors have been properly installed, it is recommended that the cables run through the pivot tube as shown in Figure 14. Attach 2" (5cm) flexaust (provided) to pivot tube and route underneath the arm via the cable hose clamps.
  • Page 19 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 2. Prior to adjustment - payload must be secure. The arm can be pulled down to make access to adjustment nut easier. Fine adjustment to compensate monitor counterbalance can be made by turning adjustment nut located on the top surface of the core unit as shown in Figure 16.

  • Page 20: Cleaning The Equipment

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 Figure 17 MONITOR MOUNT ASSEMBLY ROTATION RESISTANCE 1. The setscrews shown in Figure 7 that were installed in step 6 of "INSTALL MONITOR MOUNT" on page 12 can be loosened or tightened to adjust the rotation resistance of the suspended monitor mount assembly.
  • Page 21 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 Daily Maintenance Checks: 1. Pre-Operational and Post-Operational Checks Perform daily checks of the monitor suspension BEFORE and AFTER operating the equipment. CAUTION! If any abnormality is found in the monitor suspension, stop using it.
  • Page 22 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 2. Visual check Before checking the operation, confirm the following: • The monitor suspension is not tilted. Refer to Figure 18. • Although "A" in the following figure shows a gap, there is no gap at the monitor frame rotation section.
  • Page 23 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 3. Operational check Articulate all the movable sections and confirm the following: • Operation does not lack smoothness compared to when the monitor suspension was installed.
  • Page 24 Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 3. Check that the hardware securing the end plates are tight. See Figure 22. Figure 22 4. Perform a complete functional inspection: -Rotate monitor mount assembly through complete range.

  • Page 25: Customer Support

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 7. Check the pad attached to the underside of the monitor mount. If there is any damage to the pad or if the pad is not properly attached to the unit, it must be replaced.

  • Page 26: Disposal Guidelines

    Installation and Maintenance Guide for IDI 1000F Series Suspension System with an Adaptor to Shimadzu CH200 DISPOSAL GUIDELINES Most of the components used in this suspension system are made of metal, usually aluminum or steel, and are easily recycled. The gas springs are nearly 100% recyclable. They must be decompressed, with the remaining oil drained, before processing.
