idi Aspect ISO-Drive Operator's Manual

Mobile imaging table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Aspect
ISO-Drive
Mobile Imaging Table
Operator Manual
Made in the USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aspect ISO-Drive and is the answer not in the manual?

Questions and answers

Related Manuals for idi Aspect ISO-Drive

Summary of Contents for idi Aspect ISO-Drive

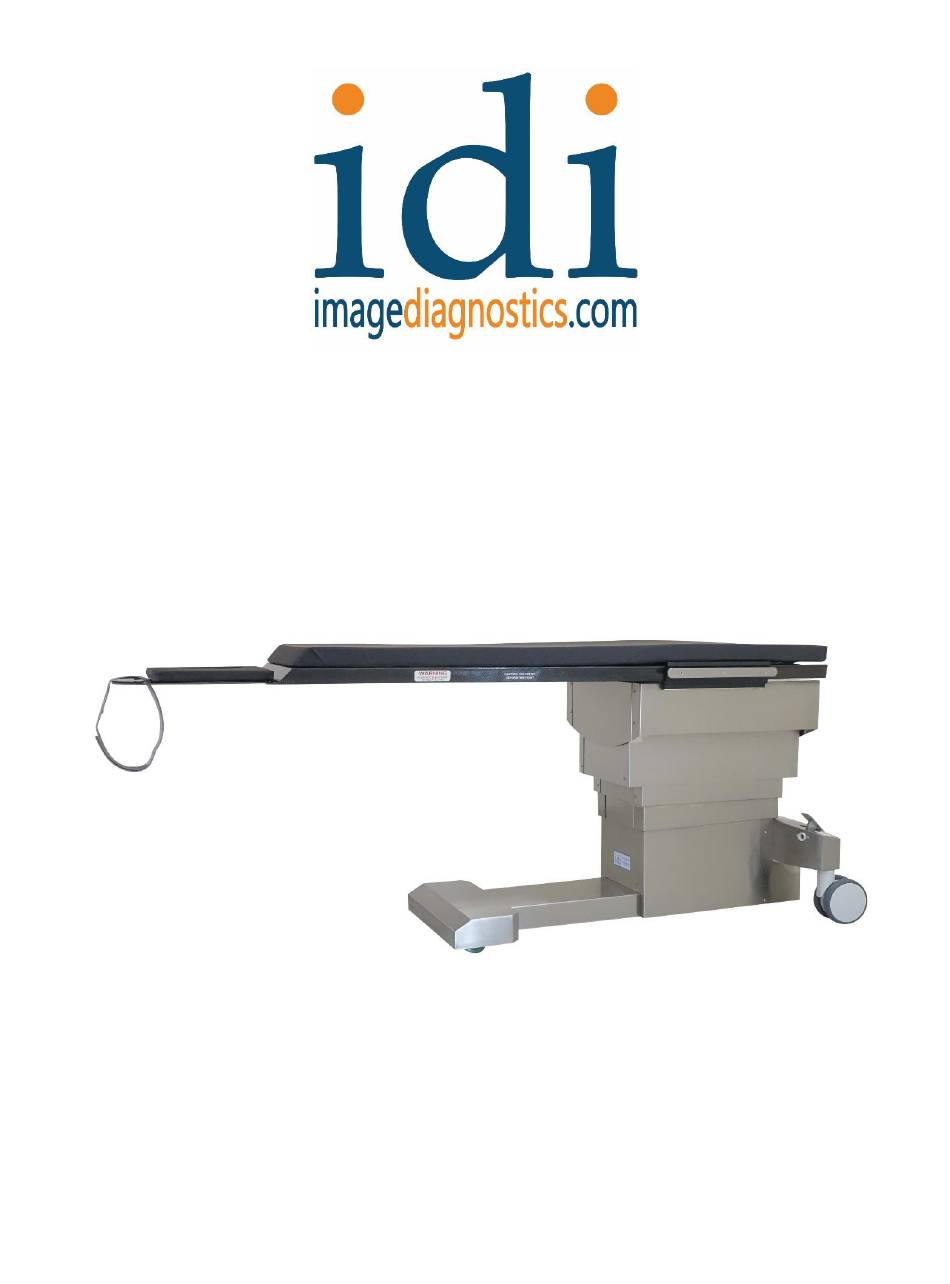

  • Page 1 Aspect ISO-Drive Mobile Imaging Table Operator Manual Made in the USA...
  • Page 2 For technical assistance, call IDI at (978) 829-0009. Be prepared to give the complete model and serial number found on the data plate on the table base at the time of contact.

  • Page 3: Table Of Contents

    Aspect ISO-Drive Operator Manual Table of Contents SYMBOL IDENTIFICATION ..................... 5 INTENDED USE & ESSENTIAL PERFORMANCE ............7 SAFETY INSTRUCTIONS ....................7 SAFETY HAZARDS ......................8 EMC (Electromagnetic Compatibility) STATEMENT ........... 10 EMERGENCY STOP PUSHBUTTON ................11 SETUP INSTRUCTIONS & PATIENT PREPARATION ..........11 7.1.
  • Page 4 Aspect ISO-Drive Operator Manual 14. DISPOSAL OF COMPONENTS ..................25 15. PRODUCT DATA ....................... 26 16. SPECIFICATIONS ......................27 17. WARRANTY ........................31 L100-3265 Rev. A www.imagediagnostics.com...

  • Page 5: Symbol Identification

    Aspect ISO-Drive Operator Manual SYMBOL IDENTIFICATION Attention! Consult accompanying documents. Failure to follow these instructions could cause serious personal injury or damage to equipment. CD ROMs containing digital files of Instructions for Use included with manual. Warning! Information or instructions shown near this symbol must be adhered to in order to prevent a potentially hazardous situation which if not avoided, could result in death, personal injury or damage to the equipment.
  • Page 6 Aspect ISO-Drive Operator Manual Protective Ground. This is the common tie point between the AC Electrical Power Cord Ground, Frame Ground, and Controller Ground. Patients must be loaded from the side of table. There is possible tilting or instability if patient is loaded onto the pedestal end of table or the imaging end of the table.

  • Page 7: Intended Use & Essential Performance

    Failure to follow safety precautions may result in serious injury to patient or user or damage to equipment. Comments and questions regarding safety should be addressed to: Customer Support Image Diagnostics, Inc. 310 Authority Drive Fitchburg, MA 01420 USA Or call IDI at (978) 829-0009. L100-3265 Rev. A www.imagediagnostics.com...

  • Page 8: Safety Hazards

    Aspect ISO-Drive Operator Manual SAFETY HAZARDS Safety Hazard Level Potential Consequences with Use Indicates an imminently hazardous situation which, if not DANGER avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 9 Aspect ISO-Drive Operator Manual WARNING! Safely position and secure patient onto table. Do not exceed table weight capacity of 600 pounds (272kg). CAUTION When lying on the table, patient must be restrained at all times. The restraining straps are not intended to restrain an uncontrolled patient.

  • Page 10: Emc (Electromagnetic Compatibility) Statement

    WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Aspect ISO-Drive, including cables connected to the table. Otherwise, degradation of the performance of this equipment could result.

  • Page 11: Emergency Stop Pushbutton

    Aspect ISO-Drive Operator Manual EMERGENCY STOP PUSHBUTTON PEDESTAL END OF TABLETOP IMAGING END OF TABLETOP EMERGENCY STOP PUSHBUTTON ➢ The red Emergency Stop Pushbutton is located in the center of the base cover on the back of the table. ➢ Pressing this button until it is fully engaged will stop all motorized movement by removing power from all system components.

  • Page 12: Preparation For Patient Use

    Aspect ISO-Drive Operator Manual • Check that the ground pin on the electrical cord plug is in good condition before each time that it is plugged in. • When the table is not connected to AC power, the table will automatically switch to backup battery mode.

  • Page 13: Preparation For Performing Cpr

    Aspect ISO-Drive Operator Manual 7.4. Preparation for Performing CPR • Return table to level position and lower table position to a comfortable height before performing CPR on a patient. L100-3265 Rev. A www.imagediagnostics.com...

  • Page 14: Instructions For Table Operation

    Aspect ISO-Drive Operator Manual INSTRUCTIONS FOR TABLE OPERATION 8.1. CASTER MOTION AND STEERING SETTINGS The motion of the table can be configured two ways: 1. “STEER” where the rear casters are free rolling in all directions. 2. “LOCK” where the rear casters will not be able to roll at all.
  • Page 15 Aspect ISO-Drive Operator Manual 8.2. TABLE MOTION CONTROLS WARNING! The Handset Control is always active when connected to a powered-up table. • When using the Handset Control shown above, each button must be held down to get continuous motion of the tabletop. Motions will stop as soon as the button is released.

  • Page 16: Standard Accessories

    Aspect ISO-Drive Operator Manual STANDARD ACCESSORIES 9.1. Patient Mattress Pad for Tabletop. The Patient Mattress Pad is held in place by hook and loop fasteners. To remove the pad, simply pull pad up gently to remove. Replacement pads are supplied with new self- adhesive fasteners installed and new adhesive backed mating pieces for the tabletop.

  • Page 17: Patient Restraint Straps

    Aspect ISO-Drive Operator Manual 9.3. Patient Restraint Straps. WARNING! Strap configuration is recommended; however, patient restraint is a case-by-case condition. Please refer to the facility’s policy on restraining a patient. The Patient Restraint Straps can be used in two different ways depending on where the strap is to be located along the length of the Table Top.

  • Page 18: Add-On Accessories

    Aspect ISO-Drive Operator Manual 10. ADD-ON ACCESSORIES 10.1. Clamp-on Accessory Rail Fits on left or right side of table. 6” length. (European version with 10mm x 25mm metric rail is available). 10.2. Vascular Access Arm Board (VAB) One-piece, extra wide carbon fiber arm board for vascular access procedures. Mounts to table by laying across the width of the tabletop underneath the Patient Mattress Pad and uses a hook pin to hold in place.

  • Page 19: Quick Release Rail Mount Arm Board (Requires Clamp-On Accessory Rail)

    Aspect ISO-Drive Operator Manual 10.3. Quick Release Rail Mount Arm Board (requires Clamp-on Accessory Rail) Radiolucent materials. Includes arm board, pad and restraint straps. (European version for 10mm x 25mm metric rail size is available) 10.4. Arm Board, Shoulder Mount Carbon fiber base.

  • Page 20: General Cleaning

    Aspect ISO-Drive Operator Manual 11. GENERAL CLEANING After each medical procedure, the table should be properly cleaned. Do not use harsh abrasives, solvents, sprays, or corrosive agents. Some accessories may come with individual cleaning instructions. APPROVED AND TESTED DISINFECTANT CLEANERS FOR TABLE: •...

  • Page 21: Maintenance, Service & Repair

    Inspect all external cables, controls, and the tabletop for wear and damage. Damaged cables must be replaced promptly. The Aspect ISO-Drive uses a medical grade power cord which is not user serviceable. Replacement must be performed only by a qualified service technician.
  • Page 22 Aspect ISO-Drive Operator Manual fully retract Trendelenburg to the down position. This will move slower than normal which is correct. Wait 15 seconds and full function is restored. L100-3265 Rev. A www.imagediagnostics.com...

  • Page 23: Troubleshooting

    Aspect ISO-Drive Operator Manual 13. TROUBLESHOOTING Note: The motion of the Tabletop is fully controlled by user interface with switches, buttons. In the event of a loss of these motions it is expected that the Table Top will remain stationary without any unwanted movement.
  • Page 24 Aspect ISO-Drive Operator Manual Problem/Symptom Possible Cause Remedy 4. ISO-Centric Roll 1. No Power. 1. Check electrical outlet. does not operate. 2. Battery is depleted. 2. Connect to AC Power 3. Emergency Stop 3. Reset Emergency Stop Pushbutton. Pushbutton engaged.

  • Page 25: Disposal Of Components

    Aspect ISO-Drive Operator Manual 14. DISPOSAL OF COMPONENTS IDI medical tables are made up of mostly steel, copper and aluminum parts which are easily recycled. It is recommended that some components be disassembled before disposal for recycling. The table below lists components typically found in IDI products but varies with model and options.

  • Page 26: Product Data

    Aspect ISO-Drive Operator Manual 15. PRODUCT DATA Tabletop Low attenuation carbon fiber tabletop and pad. Tabletop surface 61cm x 155 cm (24 in x 84 in) standard. Imaging range along table length 172.7 cm (58 in) Trendelenburg (tilt) Approx. ±12...

  • Page 27: Specifications

    Aspect ISO-Drive Operator Manual 16. SPECIFICATIONS Mode of Operation ▪ For continuous use with short time loading. ▪ Duty Cycle: 10% (2 min on/18 min off). Type of Equipment: ▪ Class II Type B applied part (as defined by IEC 60601-1, UL 60601-1, EN 60601-1, CAN/CSA 601.1-M90, IEC 60601-2-46:1998.
  • Page 28 Guidance and Manufacturer’s Declaration- Emissions, All Equipment and Systems: Table 1 The Aspect ISO-Drive is intended for use in the electromagnetic environment specified below. The customer or user of the Aspect ISO-Drive should ensure that it is used in such an environment. Electromagnetic Environment – Guidance Emissions Test...
  • Page 29 Guidance and Manufacturer’s Declaration- Immunity, All Equipment and Systems: Table 2 The Aspect ISO-Drive is intended for use in the electromagnetic environment specified below. The customer or user of the Aspect ISO-Drive should ensure that it is used in such an environment. Immunity Test EN/IEC 60601...
  • Page 30 NOT Life-Supporting Table 3 The Aspect ISO-Drive is intended for use in the electromagnetic environment specified below. The customer or user of the Aspect ISO-Drive should ensure that it is used in such an environment. Immunity Test EN/IEC 60601...

  • Page 31: Warranty

    Communication Equipment and the Aspect Iso-Drive. Equipment and Systems that are NOT Life-Supporting. Recommended Separations from the Aspect ISO-Drive is intended for use in the electromagnetic environment in which radiated disturbances are controlled. The customer or user of the Aspect...
