HDMI Extender Splitter Set, 1x2
Manual
DS-55302

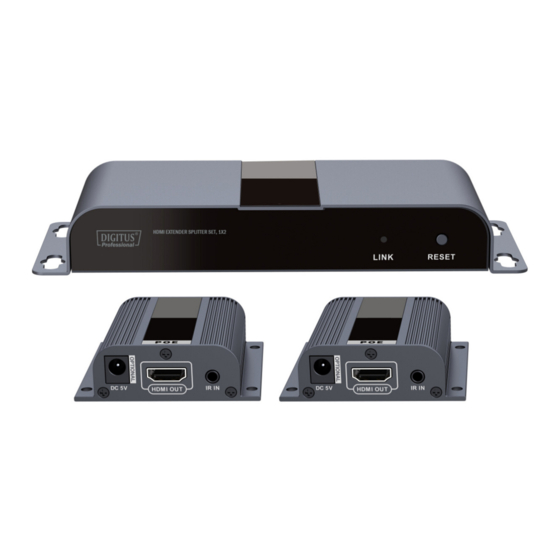

The Digitus HDMI Extender Splitter Set, 1x2 offers an extender and
splitter solution of up to 40 m for the highest demands. It is used to
transmit digital video and audio signals to a maximum length of up to
40 m and to distribute them to up to two monitors/screens. The highest
supported video resolution is 1080p / 60Hz. The transmitter unit
features an EDID switch, which can be used to regulate resolution and
audio format of the output signal. The transmitter also has an HDMI
Loop Out Port, which allows you to connect a local monitor. Thanks to
PoC (Power over Cable) support, it is only the transmitter unit that needs
to be powered. The package includes three infrared units (1x transmitter,
2x receivers), which can be used for the remote control of the connected
input source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DS-55302

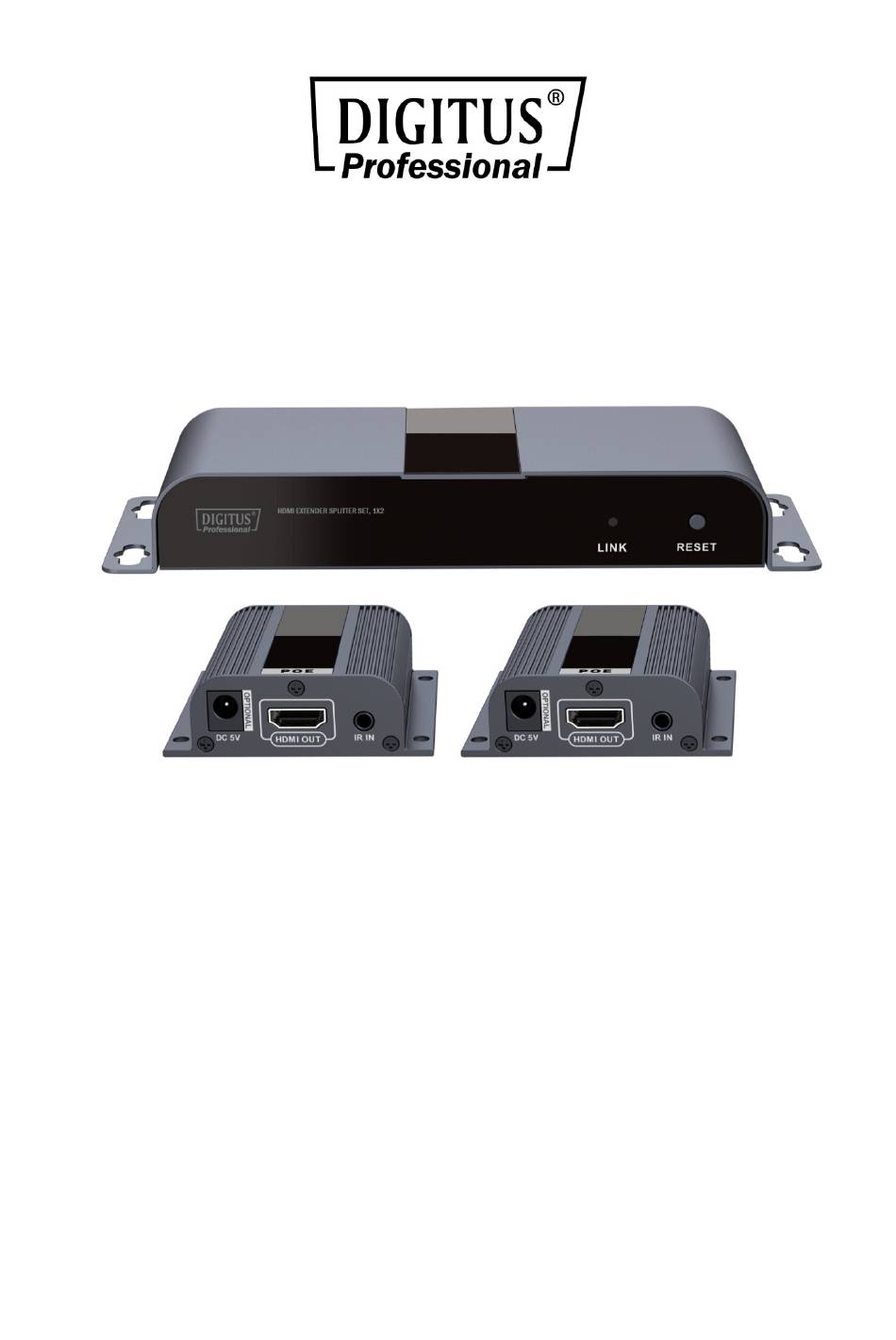

  • Page 1 Manual DS-55302 The Digitus HDMI Extender Splitter Set, 1x2 offers an extender and splitter solution of up to 40 m for the highest demands. It is used to transmit digital video and audio signals to a maximum length of up to 40 m and to distribute them to up to two monitors/screens.
  • Page 2: Important Safety Instructions

    Important Safety Instructions Do not mix up the Transmitter and Receiver, and the IR blaster and IR receiver. Do not plug-in/out the cables, when it is in using. Use DC 5V power supply only. Make sure the specification matched if using 3 part DC adapters.
  • Page 3 Specification Part No. DS-55302 Technical Input HDMI×1 (Type A, 19 pin, female) Output RJ45×2 Transmission distance 40 meters via CAT6 480i@60Hz, 480p@60Hz, 576i@50Hz, Video support 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Audio format PCM DTS AC3 TMDS signal 0.5~1.5Vp-p (TMDS) DDC signal...
  • Page 4: Installation Requirements

    Installation Requirements HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment etc.) HDMI display device like SDTV, HDTV, and projector with HDMI port. UTP/STP CAT6/6A/7 cable, follow standard IEEE-568B. Panel Description 1. Transmitter unit (TX) ① Power input (DC5V) ②...
  • Page 5: Installation Procedures

    2. Receiver unit (RX) ① LENGTH: for adjusting to the length of network cable ② RJ45 signal input ③ RJ45 indicator led it lights on all the time with HDMI signal transmission, flashes with no signal transmission ④ DC5V power input (OPTIONAL) ⑤...
  • Page 6 1. How to make a CAT5/5E/6 network cable Follow the standard of IEEE-568B: 1- Orange/white 2- Orange 3- Green/white 4- Blue 5- Blue/white 6- Green 7- Brown/white 8- Brown 2. Connection HDMI input HDMI extender splitter Cable power HDMI Out Receiver Remarks: Please do not remote control two or RX units' IR cable at the same time, which to avoid interference.
  • Page 7 C. Connect the Transmitter RJ45 port to HDMI EXTENDER RX's RJ45 input port by network cable. D. Connect HDMI EXTENDER RX's HDMI output port to HDMI display's HDMI input port by HDMI cable and set the HDMI display's signal source to be HDMI port. E.
  • Page 8 No image or audio output on display? 1) Please check whether display on standby mode 2) Please check whether display HDMI signal channel in accord with HDMI input port 3) Please check whether “LINK” LED on RX side keeps on, LED flash means RX does not receive signal from TX.
  • Page 9 Disclaimer The product name and brand name may be registered trademark of related manufacturers. TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
