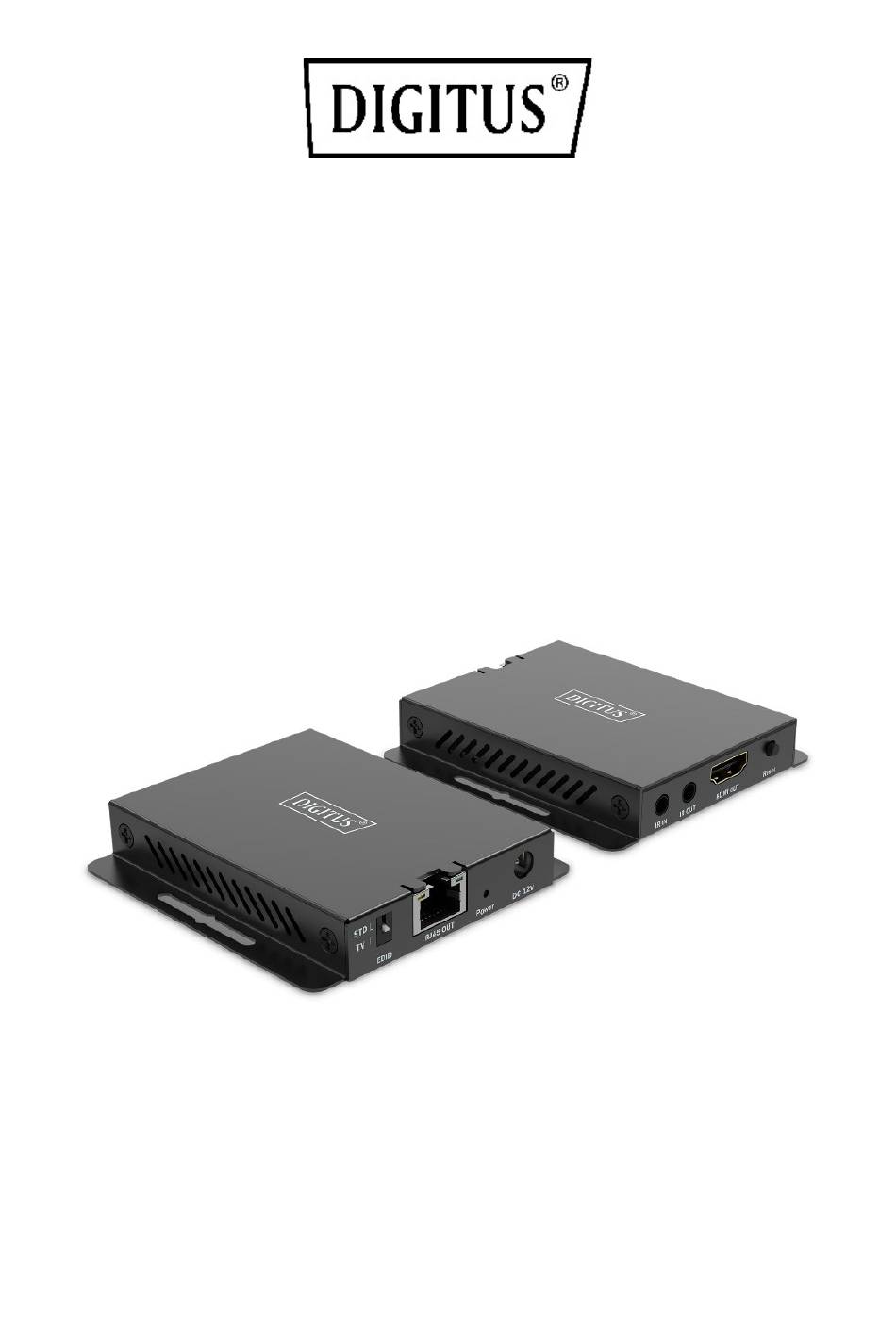

- Page 1 HDMI EXTENDER SET, 4K/120Hz, 30 M Quick Installation Guide DS-55342...
-
Page 2: Table Of Contents
Table of content Introduction ..............3 Technical features ............3 Package content ............3 Specification ..............4 Ports and interfaces ............. 5 Connection diagram ............. 6 Troubleshooting ............7... -
Page 3: Introduction

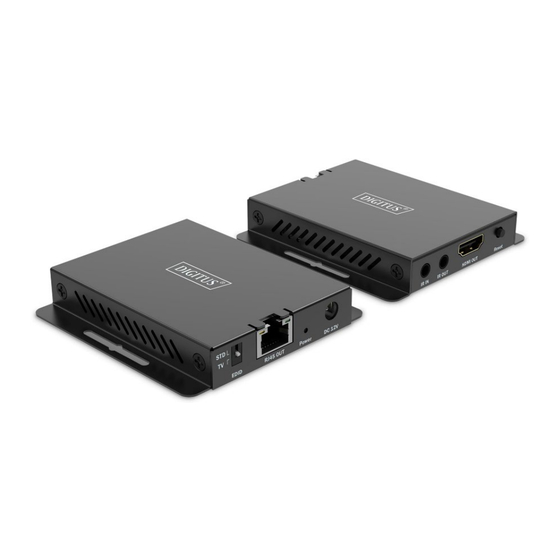

1. Introduction The DIGITUS HDMI Extender Set enables HDMI signal transmission over a distance of up to 30 m (4K/120Hz, 4:4:4) using CAT 6 or higher cables. Its features also include bi-directional IR transmission, which enables flexible control of the signal source. It is also suitable for wall mounting, and therefore offers flexible installation options. -
Page 4: Specification
4. Specification Transmitter unit connections: 1x HDMI input (4K/120Hz) – Connection signal source 1x RJ45 output – Connection CAT transmission cable 1x IR output – Connection of IR transmitter 1 x IR input – Connection of IR receiver 1x Power adapter input (DC 12V/1A) –... -
Page 5: Ports And Interfaces
Dimensions (1 unit) L 8.4 x W 8.2 x H 1.5 cm Weight (1 unit) 125 g Color Black 5. Ports and Interfaces 1. STD/TV: Select to the STD Mode for 4K120Hz and Pass-through to TV EDID Mode 2. RJ45 OUT: UTP Cable Output Connection Port 3. -
Page 6: Connection Diagram
7. HDMI IN: Connect to Input Sources via HDMI Male Input Port 8. Reset: Short Click to Reset 9. RJ45 IN: UTP Cable Input Connection Port 10. HDMI OUT: Connect to Output Displays via HDMI Male Output Port 6. Connection Diagram Sender HDMI Cable Receiver... -
Page 7: Troubleshooting
7. Troubleshooting Problems Causes Solutions Maybe the power Please check if the supply is not power supply is Non-power- connecting well connecting well and the connected/all or used with the output voltage value is LED off wrong power correct as adapter recommended Please check if the... - Page 8 Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. info@assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
