NOTE: It is important that all areas where
the bed cover mounts are clean and free
of debris prior to installing.
TOOLS REQUIRED
Torx wrench - T-50
l
Hex wrench - 1/8"
l
Torx wrench - T-30
l
Knife or cutting tool
l
B
Extang Corporation
5400 S. State Road, Ann Arbor, MI 48108
800-877-2588 © Extang Corporation, 2022
A
A
C
D
E

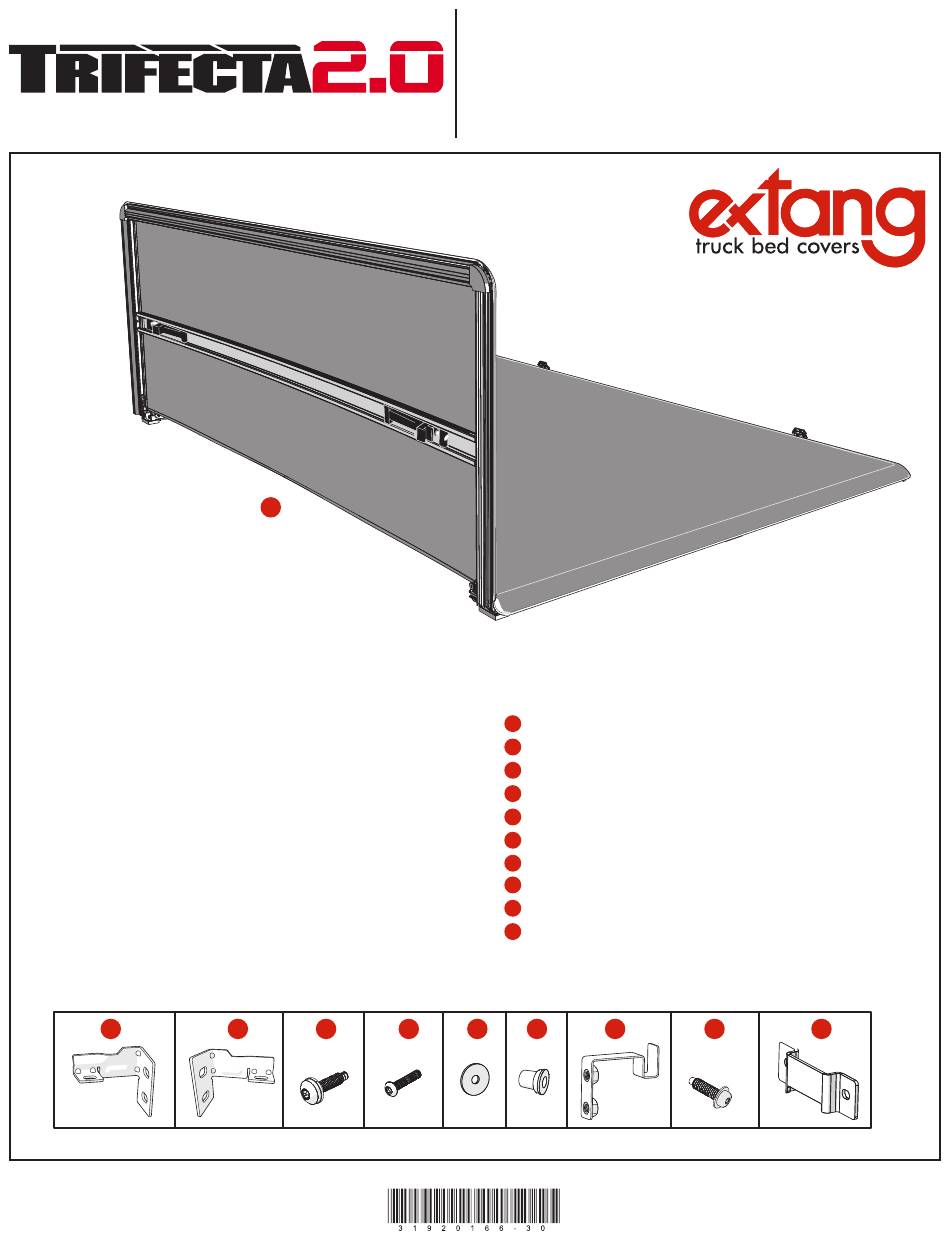

TRIFECTA 2.0 JEEP GLADIATOR
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 800-877-2588, Mon - Fri, 8:30 a.m. - 6:00 p.m. EST
PARTS INCLUDED
IN YOUR KIT
A
Cover assembly
B
1x Cab bracket, driver side
C
1x Cab bracket, passenger side
D
2x M8 bolts T-50
E
2x Hex button head screws with washers
F
4x Washers
G
2x Well nuts
H
2x Bulkhead brackets*
I
4x T-30 Torx screws with washers
J
2x Tailgate brackets
Kit 22000097 - for use with NO weld nut at bulkhead only
*
F
G
H
I
J
Part# 31920166-30 Rev. 6-27-22
