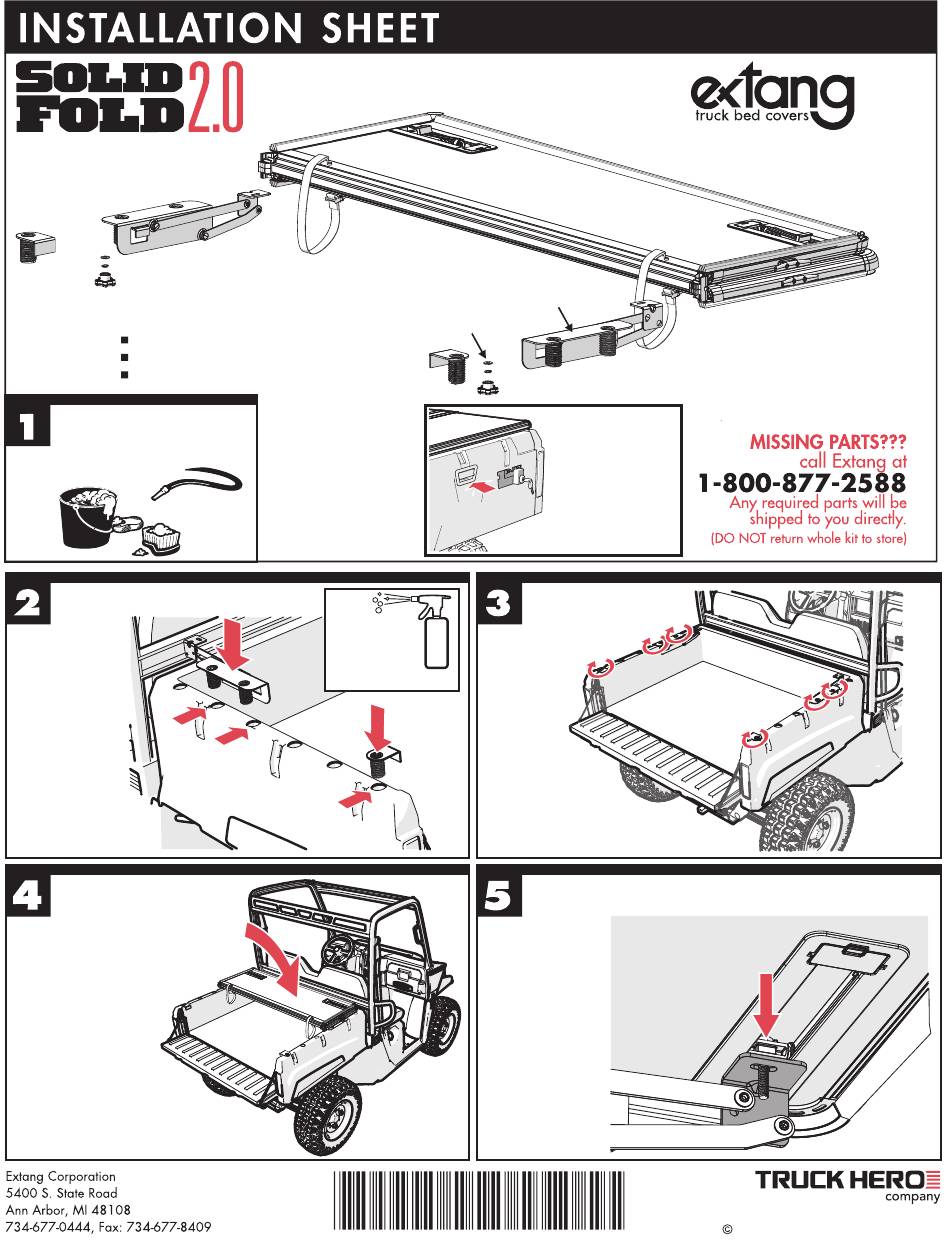

Tools Needed:
Ratchet wrench
1/2" Socket
Soapy water
It is important that all areas
where the bed cover mounts
are clean and free of debris
prior to installing.
Cab
Insert the hinge
bracket into the
2nd and 3rd bed
wall holes, facing
toward the cab
as shown.
#2
Insert the tail
clamp bracket
into the last bed
wall hole, as shown.
Both sides.
Place the folded cover assembly
onto the front / cab end of the bed.
Note the positioning of
the mounting hardware
in the next step- 5.
UTV
Bed
Cover
NOTE:
Spray a soapy
water solution
into the bed
holes and on the plugs.
#3
3
Hinge Brackets
Mounting
Hardware
Tail
Clamp
Brackets
Optional
Pop & Lock
lock mechanism.
Refer to the
supplemental sheet
for instructions
and use.
Tighten the six
bracket nuts
with a 1/2"
socket,
each to
7 ft-lb
9 Nm.
Tailgate
The threaded bolt
included with the
cover assembly
should be inserted
into the forward
hinge bracket as
shown, one on
each side.
1
8
3
0
0
3
0
-
Applications:
2013 - 2018 Polaris Rangers
bed dimensions: 36.5" x 54" x 11.5"
The SolidFold 2.0 UTV bed cover
comes fully assembled.
Note any damaged or missing
components before installing.
Extang, Corp., 2018. Printed in USA
3
0
Item No. 31830030-30 7.18 DD
