Extang CLASSIC PLATINUM Installation Sheet

INSTAL LATI ON S HE E T-
Part Nos. 7615, 2615
"DOUBLE HOOK"
Side Rail Clamps
Clamp Bolts
"U" Shaped Clamps

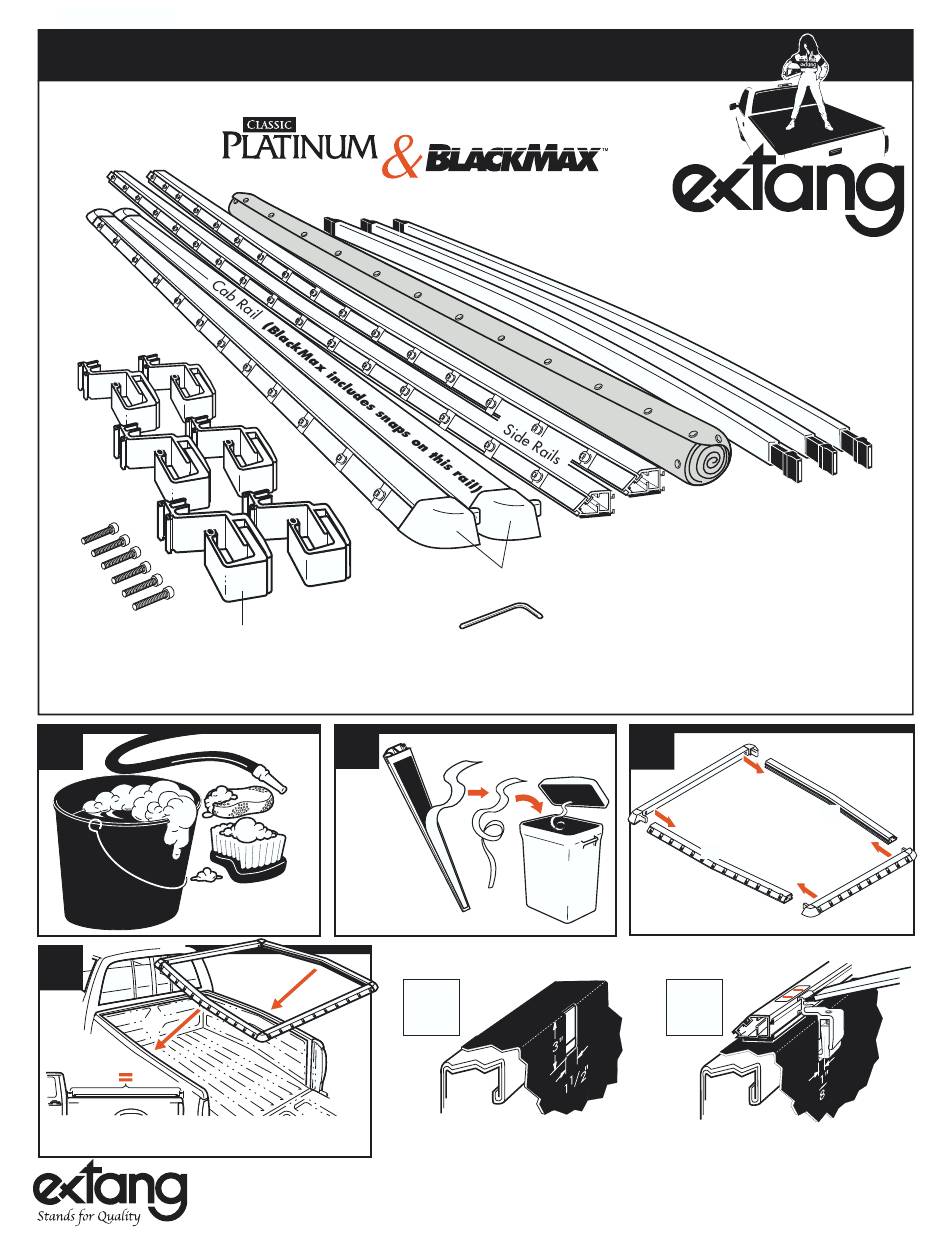

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
1
Wash truck bed.
4
Place the rail assembly over the side of the truck box.
Center rails evenly between cab and tailgate.
Extang Corporation
1901 E. Ellsworth Rd.
Ann Arbor, MI 48108
734 677-0444, Fax: 734 677-8409
F ord Fla re sid e '97 –
Corner Pieces
Allen Wrench
2
Foam has NO adhesive to
touch truck finish.
Remove paper tape
from all rails.
Discard properly.
For an OVER-THE-RAIL Bedliner
DIAGRAM
A
For each clamp mark on your bedliner a 1-1/2" x 3" hole
as shown above. Remove clamp. Cut holes in bedliner.
Reinsert side rail clamp. Return to step 6.
MISSING PARTS???
1-800-877-2588
call Extang at
Any and all needed parts will be shipped to you
directly. (DO NOT return whole kit to store)
B M has snaps on all rails.
LACK AX
3
Off the truck bed, connect
the end rails to the two
side rails utilizing the
ClickLock™ corners.
P L E A S E
D O N O T
L I T T E R
DIAGRAM
B
www.extang.com
I t e m N o . 0 0 1 5 - 1 2 0 2 R H P r i n t e d i n U . S . A .
Spring Bows
Tarp
NOTE:
Side rail clamped to bed with
bow attached.
Visit us at:
