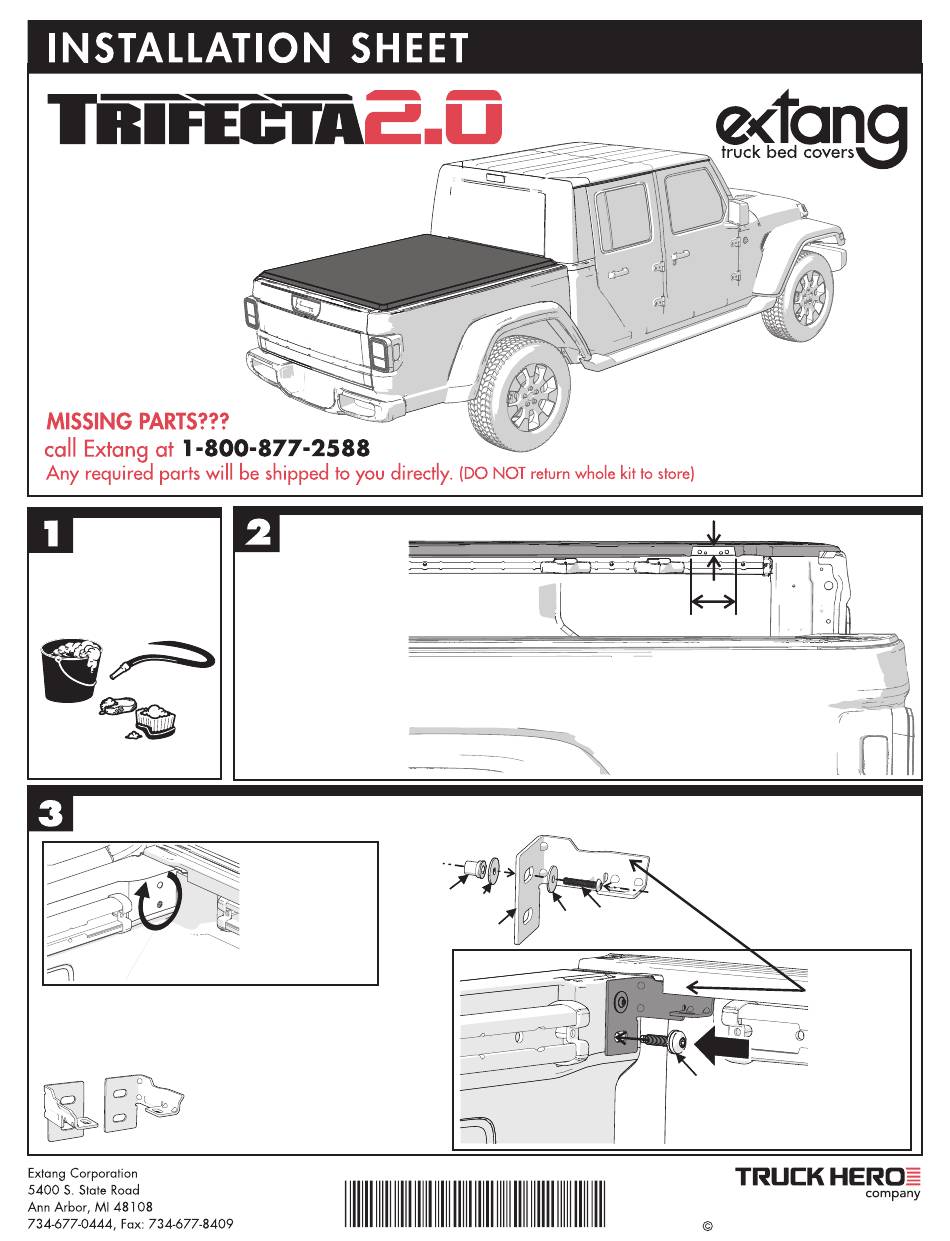

Extang TRIFECTA 2.0 Installation Sheet

The Trifecta 2.0 truck bed cover
comes fully assembled.
Note any damaged or missing
components before installing.
It is important that all
areas where the bed
cover mounts are
clean and free of
debris prior to
installing.
Front/ Cab Brackets, insert the cab bracket screw (1) through the cab bracket washer (2) then through the upper hole of the cab
bracket (3). Slide a second washer (2) on the screw on the backside of the bracket and thread into the well nut (4).
Use the well nut as a guide to insert
the cab bracket into the bulkhead wall.
Thread the cab bracket bolt (5) through
the bracket and into the bulkhead.
RH
Snug the well nut, tighten the bolt to
LH
17.5 N-m (155 in-lb).
Note: There is a RH (passenger) side bracket
and a LH (driver) side bracket.
If the bed rail caps are not trimmed in the rear/tailgate section,
cut using the
scribed lines
to expose the
area shown.
NOTE:
For vehicles
with a sprayed on
bed liner, the
threaded area in
the bulkhead
must be cleared
of liner material.
3 1 9 2
4
2
1
2
3
0 9 3 0 - 3 0
Note:
Assemble the screw, washers and
well nut just until contact is made,
do not tighten the well nut.
Note that the
bracket tab
sits inside of
the truck bed
rail cap.
5
Item No. 31920930-30 6.3.19
Extang, Corp., 2019. Printed in USA
