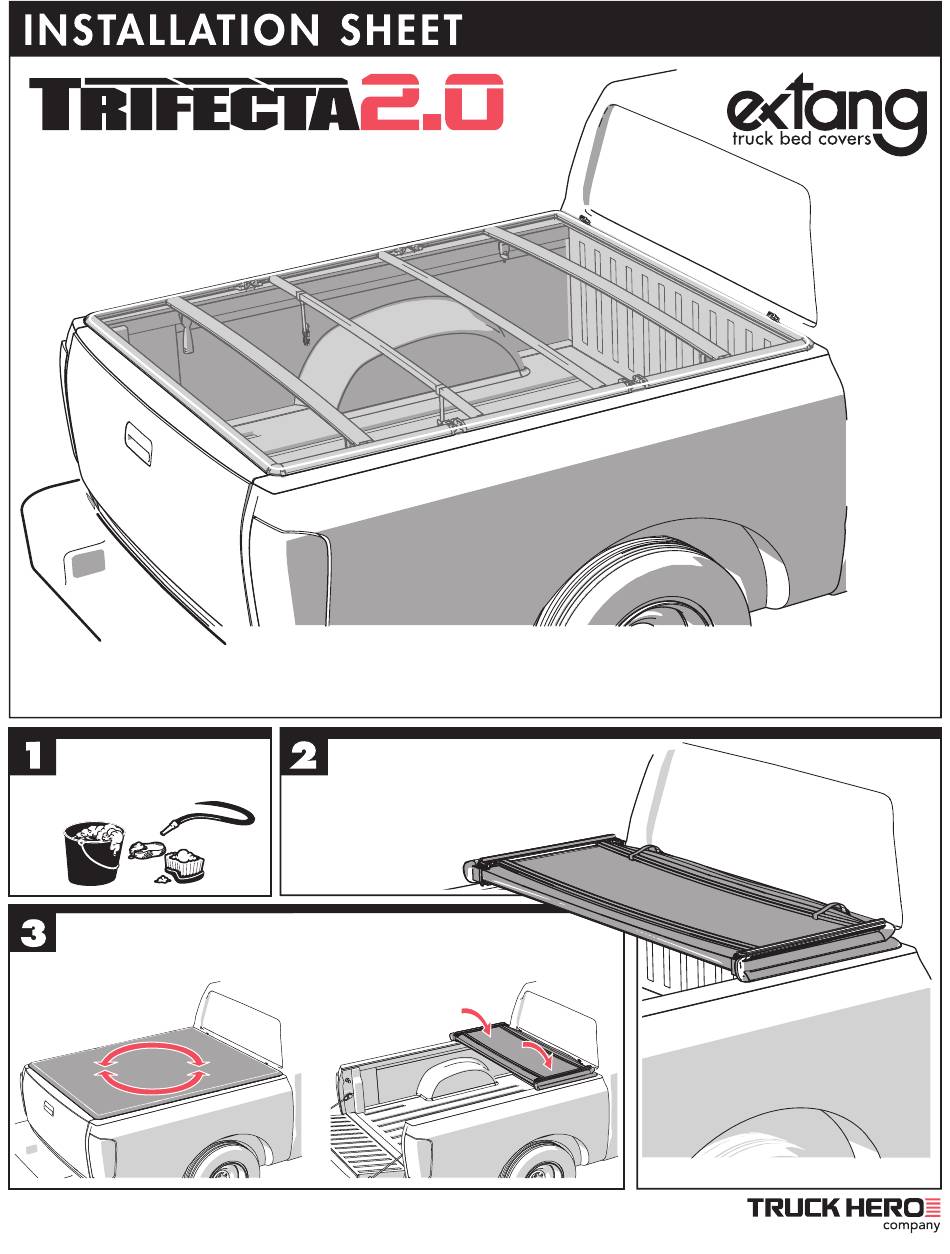

The Trifecta 2.0 truck bed cover
comes fully assembled.
Note any damaged or missing
components before installing.
It is important that all areas
where the bed cover mounts
are clean and free of debris
prior to installing.
Unfold the cover fully and adjust
position over the truck bed for proper
front (cab) / rear (tailgate) alignment.
Place assembled cover over the cab
end of the truck box.
Carefully refold the cover without
shifting its position on the truck bed.
Advertisement
Related Manuals for Extang Trifecta 2.0
Summary of Contents for Extang Trifecta 2.0
- Page 1 The Trifecta 2.0 truck bed cover comes fully assembled. Note any damaged or missing components before installing. It is important that all areas Place assembled cover over the cab where the bed cover mounts end of the truck box. are clean and free of debris prior to installing.
- Page 2 For bed caps, trim only enough of the For bed liners that cover the metal ange, If your truck has a bed cap or bed cap edge so the rear (tailgate) clamp trim a minimum of 100 mm or 4” of the bedliner that covers the metal contacts the bottom of the metal ange.
- Page 3 To prepare the Trifecta 2.0 to Fold the cover forward drive in the open position, and fasten BOTH straps release the rear (tailgate) in the middle section clamps and fold the to the front rail. cover forward. IMPORTANT: Before folding...
- Page 4 Front (Cab) Seal 92xxx-16 93xxx-16 94xxx-16 Tarp 92xxx-20 93xxx-20 Buckle Assembly Front 94xxx-20 31920120 Front (Cab) Clamp 92xxx-76 93xxx-76 94xxx-76 Cab Hinge Assembly (with Seal) 92xxx-63 93xxx-63 94xxx-63 Cab Hinge Seal only Rear (Tailgate) Seal 32920104 92xxx-18 93xxx-18 Tie Down Strap 94xxx-18 54440400 Corner Seal...
