Extang Express Tonno Installation Sheet

INS TALL ATI ON S H E ET
U Clamps
(x 6)
NOTICE:
If your truck has a
bedliner that wraps
over any top edges,
the liner will have to
be trimmed to fit this
product.

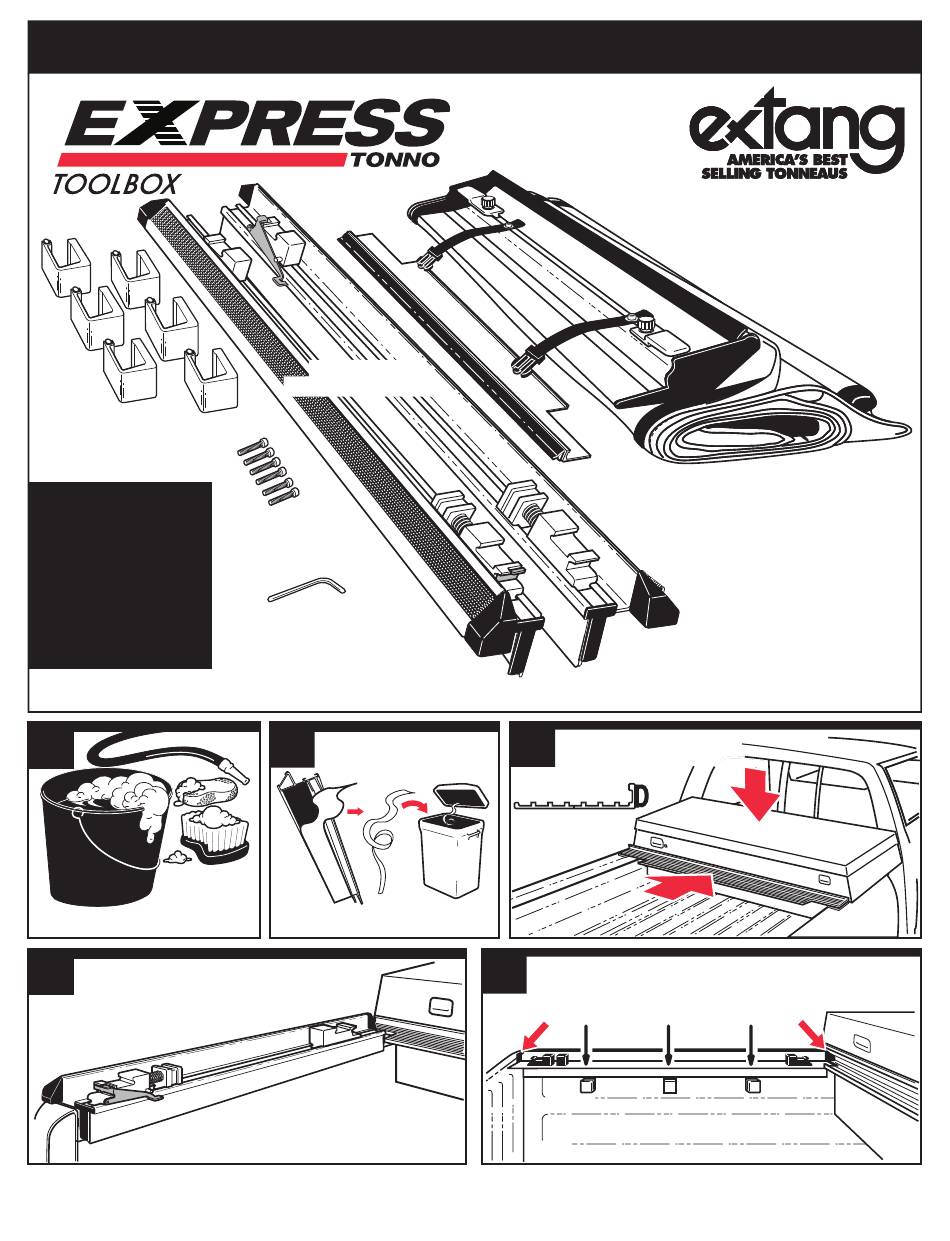

PARTS INCLUDED IN YOUR KIT. You may want to lay them out in this manner for accessibility.
1
Wash truck bed.
4
Place Side Rails on side walls of truck bed
with plastic end laying over the L-Channel.
Adjusting screws go toward the toolbox.
Locking catch goes on left side toward the
tailgate as shown.
Extang Corporation
1901 E. Ellsworth Rd.
Ann Arbor, MI 48108
734 677-0444, Fax: 734 677-8409
Left and Right
Side Rail Assemblies
Clamp Bolts
Allen Wrench
2
Foam has NO adhesive to
touch truck finish.
Remove paper tape from all
rails. Discard properly.
"L" Channel
w/Seal
3
With the toolbox in place,
position L Channel against
toolbox and center.
L Channel
P L E A S E
D O N O T
L I T T E R
5
Tailgate and the L-Channel/Toolbox.
Locate three pre-drilled holes on the rail for U–clamps.
Tarp Assembly with Cab
Rail, Tail Rail and Support
Bows attached.
MISSING PARTS???
call Extang at
1-800-877-2588
Any and all needed parts
will be shipped
to you directly.
(DO NOT return
whole kit to store)
Center the Side Rail between the
Register your warranty at:
www.extang.com
I t e m N o . 0 2 3 3 - 1210 RH P r i n t e d i n U . S . A .
