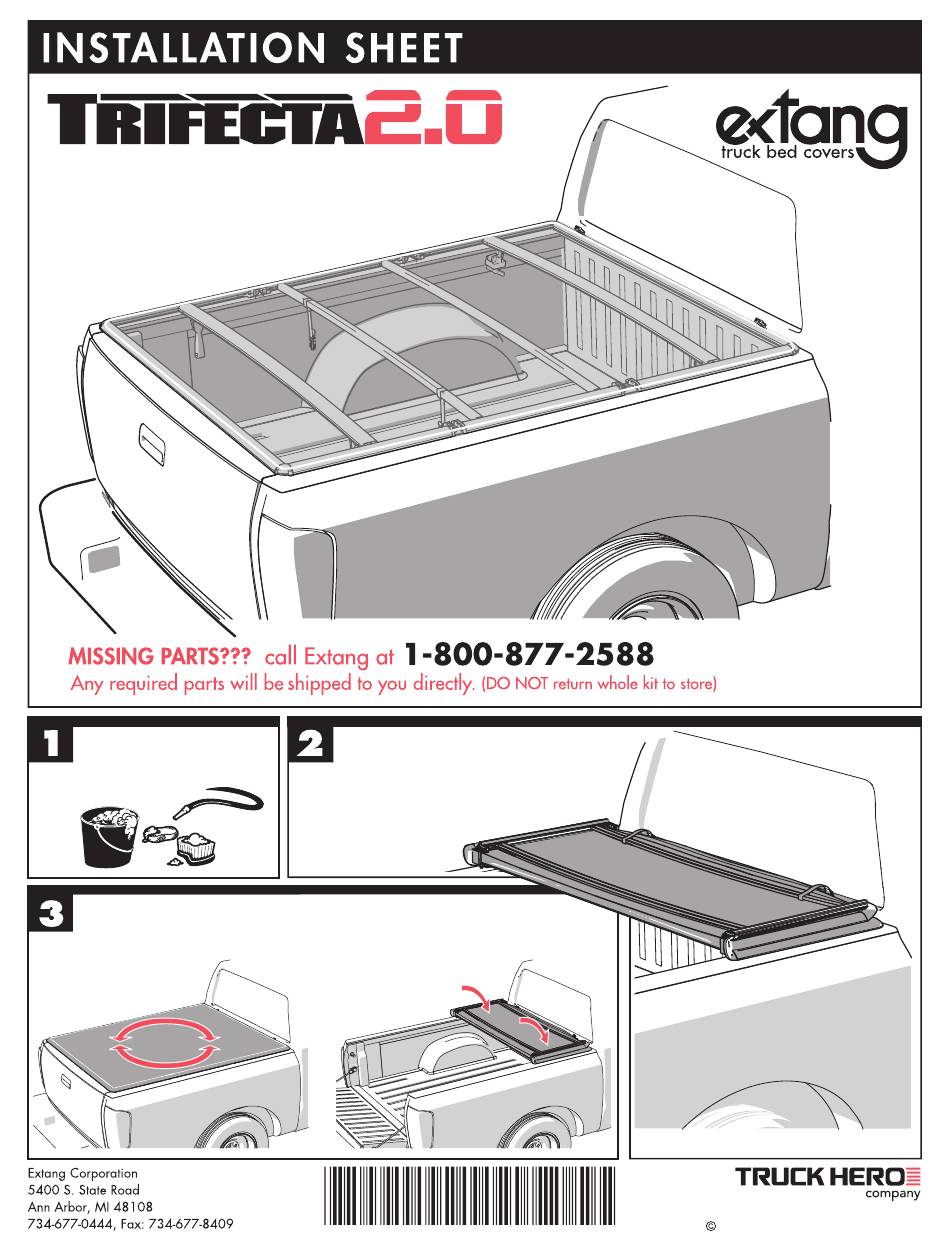

The Trifecta 2.0 truck bed cover
comes fully assembled.
Note any damaged or missing
components before installing.
It is important that all areas
where the bed cover mounts
are clean and free of debris
prior to installing.
Unfold the cover fully and adjust
position over the truck bed for proper
front (cab) / rear (tailgate) alignment.
Place assembled cover over the cab
end of the truck box.
Carefully refold the cover without
shifting its position on the truck bed.
3
1
9
2
0
9
2
5
Extang, Corp., 2018 . Printed in USA
-
3
0
Item No. 31920925-30 6.18 DD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Extang TRIFECTA 2.0
Summary of Contents for Extang TRIFECTA 2.0
- Page 1 The Trifecta 2.0 truck bed cover comes fully assembled. Note any damaged or missing components before installing. It is important that all areas Place assembled cover over the cab where the bed cover mounts end of the truck box. are clean and free of debris prior to installing.
- Page 2 For bed caps, trim only enough of the For bed liners that cover the metal ange, If your truck has a bed cap or bed cap edge so the rear (tailgate) clamp trim a minimum of 100 mm or 4” of the bedliner that covers the metal contacts the bottom of the metal ange.
-
Page 3: Important Notice
To prepare the Trifecta 2.0 to Fold the cover forward drive in the open position, and fasten BOTH straps release the rear (tailgate) in the middle section clamps and fold the to the front rail. cover forward. IMPORTANT: Before folding... - Page 4 Front (Cab) Seal Cab Clamp 92xxx-16 Assembly 93xxx-16 1034 94xxx-16 Tarp 92xxx-20 93xxx-20 Buckle Assembly Front 94xxx-20 31920120 Cab Hinge Assembly (with Seal) 92xxx-63 93xxx-63 94xxx-63 Cab Hinge Seal only Rear (Tailgate) Seal 32920104 92xxx-18 93xxx-18 Tie Down Strap 94xxx-18 54440400 Corner Seal 92xxx-19...
- Page 5 Overloading of cargo - Cargo should not touch the tonneau’s tarp at any point. Protrusions in the tarp will stress the fabric. Cargo may shift while traveling and cause it to push against the tarp fabric and damage it. z Towing Damage- Do NOT tow your vehicle from the rear with any Extang tonneau cover on your truck. PERFORMANCE Provided all warranty conditions are met Extang will either repair or replace (at Extang’s option) the product or...
- Page 6 8:30 TO 5 EST, MONDAY - FRIDAY Tonno Model: ________________________________________ Purchase Date:_______________________________________ Lot Code:____________________________________________ Lot code can be found on underside of cover. extang.com Extang Corporation, 5400 S. State Road, Ann Arbor, MI 48108, 734-677-0444, Fax: 734-677-8409 Register your warranty at:...
