Summary of Contents for Feig Electronic ID CPR74

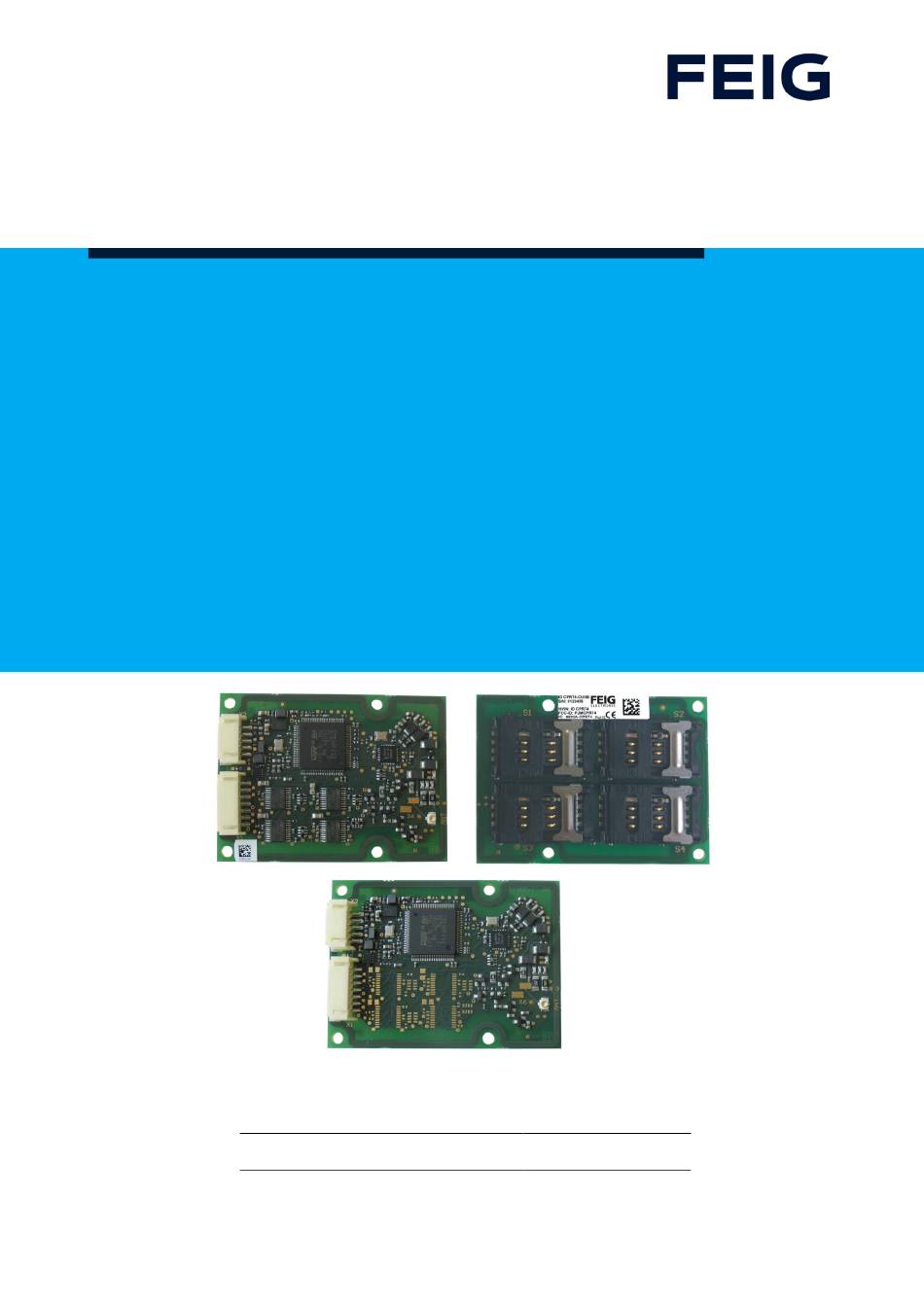

- Page 1 IDENTIFICATION === Ende der Liste für T extm arke Deckbl att === INSTALLATION MANUAL ID CPR74 RFID Reader Module Model Article-No. ID CPR74-4SCUSB 4607.000.00 ID CPR74-CUSB 4606.000.00 M60610-5e-ID-B...
- Page 2 Composition of the information in this document has been done to the best of our knowledge. FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
-
Page 3: Table Of Contents
IDENTIFICATION CPR74 Content Contents Safety Instructions Characterization ID CPR74 Scope of delivery ....................... 6 Available Accessories ....................... 6 Available Software Tools, USB Driver and Firmware ............6 Dimensions Installation and wiring Connector X1, X2 ....................... 8 Digital Outputs ......................... 10 Connection of an external Antenna ................ - Page 4 IDENTIFICATION CPR74 === Ende der Liste für T extm arke Note === 1 Safety Instructions ► The device may only be used for the intended purpose designed by for the manufacturer. ► The operation manual should be conveniently kept available at all times for each user. ►...
-
Page 5: Characterization Id Cpr74
• USB full-speed (12Mbit/s) The variant ID CPR74-4SCUSB is equipped with 4 sockets for Security Access Modules (SAM) in the ID000 format. Because of the SAM current consumption the reader module is designed as Self-Powered-Device and need a separate power supply. The voltage supply from a USB port is not sufficient in this case. -
Page 6: Scope Of Delivery
ID 3540.000.00 ID ISC.ANT.C05-A CPR74 Dimension : 500 mm; Color: black USB-cable for the connection of the ID CPR74 on an 3541.000.00 ID CAB.USB-B external host Dimension: 2,75 m 2.3 Available Software Tools, USB Driver and Firmware The USB driver and the test and configuration tool “CPRStart”... -
Page 7: Dimensions
IDENTIFICATION CPR74 3 Dimensions The ID CPR74 reader module has been designed for the integration into terminals, printers or handheld devices and so on. Figure 1: Dimension (Top View) Figure 2: Dimension (Side View) Page 7 of 21... -
Page 8: Installation And Wiring

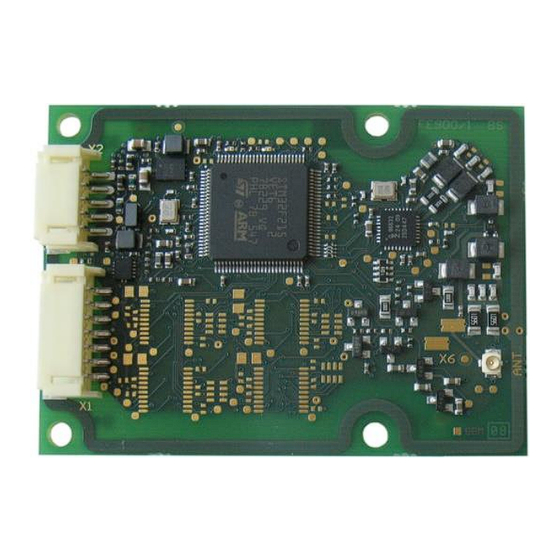

The following figure 4 and the table shows the assignment of the pins X1 (7pol.) and X2 (5pol.) Typ “JST PH” RM 2 mm (horizontal). Figure 3: Plug „JST PH“ Figure 4: ID CPR74 - plug and connections Page 8 of 21... - Page 9 IDENTIFICATION CPR74 Tab. 2 Assignment of the pins on X1 and X2 Symbol ID CPR74 Pin-No. OUT1 Digital Output 1 OUT2 Digital Output 2 OUT3 Digital Output 3 GND* RS232-TTL RS232-TTL + 5 V DC 5 % VCC** Pin-No.
-
Page 10: Digital Outputs
IDENTIFICATION CPR74 NOTICE: • Only one host interface can be used at the same time. Using several host interfaces at the same time can force malfunctions. • The reader has to be supplied by a limited power supply according to EN 62368-1 PS1, only! •... -
Page 11: Connection Of An External Antenna
CPR74 4.3 Connection of an external Antenna The ID CPR74 modules are equipped with an internal 50 -antenna and have an additionally connector for an external 50 -antenna. In Scan mode it is possible to switch between the two antennas automatically. In the ISOHost Mode the switching of the antenna can be performed by commands. -
Page 12: Sam Slots
IDENTIFICATION CPR74 4.4 SAM Slots Figure 7 shows the position of the 4 SAM slots (S1-4). Each SAM slot is designed for a ID000 formatted SAM Card. NOTICE • inserted SAM cards and opening or closing can damage the SAM slot. Wrong forcefully See chapter:... -
Page 13: Installation Of A Sam Card In A Sam Socket
IDENTIFICATION CPR74 4.4.1 Installation of a SAM Card in a SAM Socket The following step by step instruction shows the installation of a SAM Card into the SAM socket S1. 1. Closed SAM socket without SAM card. 2. Push the latch to the right side and open the cover carefully. -
Page 14: Power Supply
IDENTIFICATION CPR74 5 Power supply The reader ID CPR74-SCUSB with 4 SAM slots is designed as a “Self-Powered USB Device” and needs an additional 5 V DC power supply. The power supply must meet the following specification: +5 V DC ± 5 % Ripple: 0...250 kHz <... -
Page 15: Indicators / Leds
IDENTIFICATION CPR74 6 Indicators / LEDs The reader modules has two LED indicators on board (green and red) After power on or after a CPU Reset both LED’s starts blinking synchronously for about 2s. While operation the LED’s signalizes the following operating status: LED - green flashes →... -
Page 16: Installation Notes
7.1 Metallic surroundings When installing an ID CPR74 into another device, be sure that there are no metal surfaces or objects in the direct vicinity of the reader if possible. These can detune the antenna and thus reduce the magnetic field of the integrated antenna. -
Page 17: Emc Effects From Magnetic Fields
IDENTIFICATION CPR74 7.3 EMC effects from magnetic fields The communication principle of RFID- Technology is based on the modulation of electromagnetic fields. Alternating magnetic fields in the vicinity of the antenna can have a negative influence on the reader function. Sources of such magnetic interference fields include coils within a primary or secondary switching power supply. -
Page 18: Technical Data
IDENTIFICATION CPR74 8 Technical Data Tab. 3: Technical data ID CPR74 Weight approx. 20 g Operating -25 °C up to +70 °C (-13 °F up to +158 °F) Temperature Range Storage -40 °C up to +85 °C (-40 °F up to +185 °F) Humidity max. - Page 19 WEEE - 2002/96/EC Waste and Hazardous Substances RoHS - 2011/65/EC Tested according EMVCo Contact Level 1 Certification suitability according EMVCo Contactless Level 1, Miscellaneous VDV-KA,ITSO and in the future CEN/TS 16794 (see chapter: Characterization ID CPR74 Page 19 of 21...
-
Page 20: Radio Approvals
UKCA Declaration of Conformity Hereby FEIG ELECTRONIC GmbH declares that the radio equipment type ID ID CPR74 is in compliance with directive No. 1206 Radio Equipment Regulations 2017. The full text of the UKCA declaration of conformity is available at the following internet address: https://www.feig.de/en/service/ukca-declarations-of-conformity/... - Page 21 IDENTIFICATION CPR74 Installation with FCC / IC Approval: FCC-/IC-NOTICE: To comply with FCC Part 15 Rules in the United States / with IC Radio Standards in Canada, the system must be professionally installed to ensure compliance with the Part 15 certification / IC certification.
