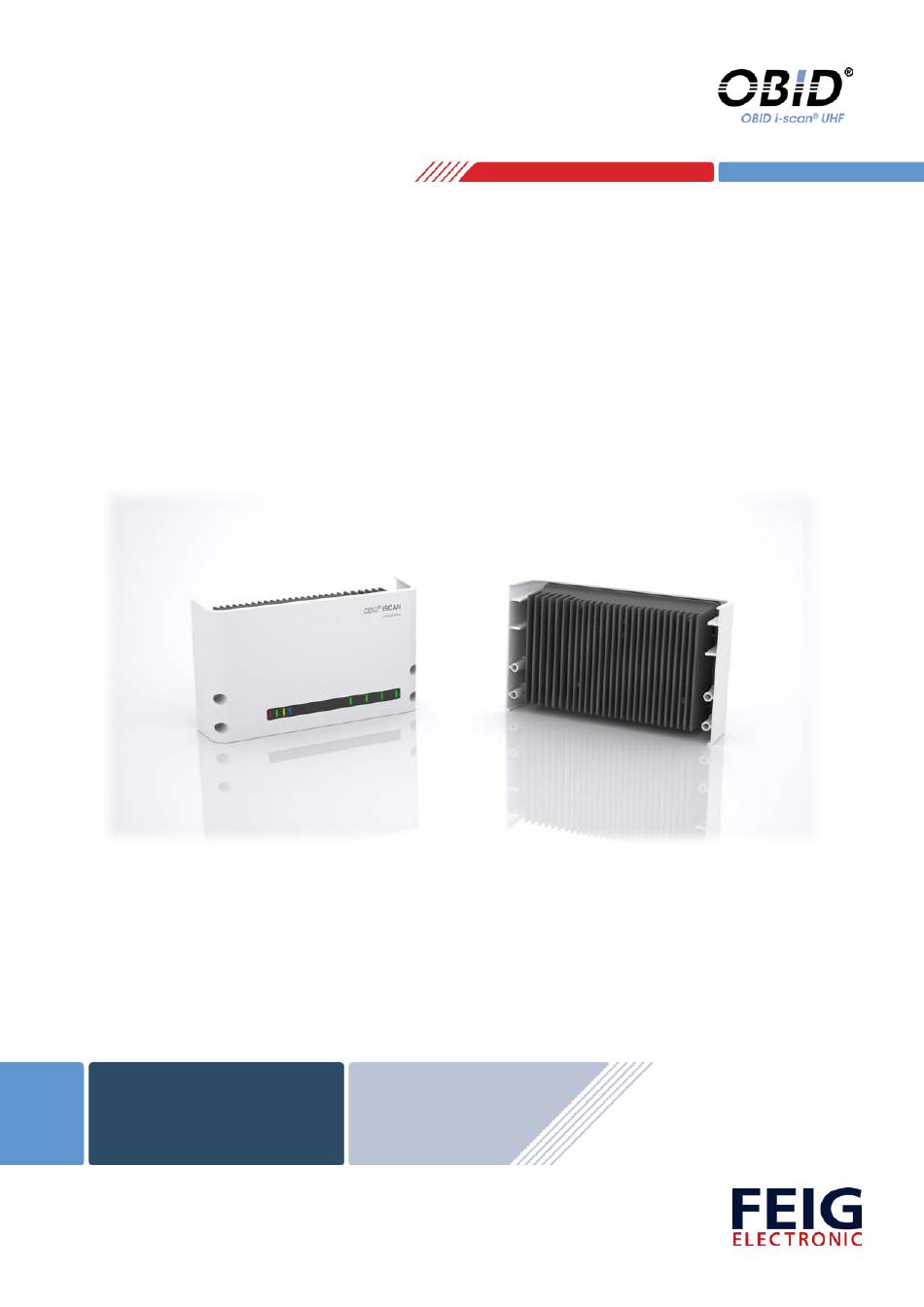

- Page 1 INSTALLATION ID ISC.LRU3000 / ID ISC.LRU3500 UHF Long Range Reader final – public (B) 2013-01-17 – M21016-1e-ID-B.docx...
- Page 2 FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed with components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human.
- Page 3 • The following figure formats are used: 0...9: for decimal figures 0x00...0xFF: for hexadecimal figures, b0...1 for binary figures. • The hexadecimal value in brackets "[ ]" marks a control byte (command). FEIG ELECTRONIC GmbH Page 3 of 32 M21016-1e-ID-B.docx...
-
Page 4: Table Of Contents
4.5. Outputs on connector X5 ....................19 4.5.1. Digital outputs on connector X5 ................. 19 4.5.2. Relay outputs on connector X5 .................. 20 5. Operating and Display Elements 5.1. Status LEDs ........................22 FEIG ELECTRONIC GmbH Page 4 of 32 M21016-1e-ID-B.docx... - Page 5 7.3.1. USA (FCC) and Canada (IC) warning notices ............31 7.3.2. Label Information ....................... 32 7.3.3. Installation with FCC / IC Approval ................32 7.3.4. USA (FCC) and Canada (IC) approved antennas ............32 FEIG ELECTRONIC GmbH Page 5 of 32 M21016-1e-ID-B.docx...
- Page 6 Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in an immediate proximity of the device respective the antenna for some time. FEIG ELECTRONIC GmbH Page 6 of 32 M21016-1e-ID-B.docx...
-
Page 7: Performance Features Of Reader Family Id Isc.lru3000
Table 2: Optional Reader Accessories Reader type Description Protection cap for IP 64 Art.No.: 3558.000.00 ID ISC.LR.CSC-IP64 Connector Sealing Cap Rail Mounting Set for ID ISC.LRU3000/3500 ID ISC.LRU3x00-MS Mounting Rail Set Art.No.: 3831.000.00 FEIG ELECTRONIC GmbH Page 7 of 32 M21016-1e-ID-B.docx... -
Page 8: Installation
The Reader is designed for wall-mount, including outdoors. Holes for mounting on a wall are provided in the housing. It is not necessary to open the reader housing mounting. 68 (2.68) 261,3 (10.29) 241,7 (9.52) Figure 1: Installation Drawing FEIG ELECTRONIC GmbH Page 8 of 32 M21016-1e-ID-B.docx... -
Page 9: Terminals
USB interface for WLAN-Sticks Digital input and output and relay output RS232 / 485 interface Table 4: Push button function Push button Description Internal push button for complete configuration reset External push button for CPU-Reset FEIG ELECTRONIC GmbH Page 9 of 32 M21016-1e-ID-B.docx... -
Page 10: Antenna Connection
Figure 3: External antenna connection ANT1-4 and X1 for the power supply CAUTION: A direct connection of an antenna to an antenna output with activated DC Voltage (24 VDC, 500 mA) may damage the antenna. FEIG ELECTRONIC GmbH Page 10 of 32 M21016-1e-ID-B.docx... -
Page 11: Power Supply
Each reader has to be supplied by a separate external power supply. An operation of an ID ISC.LRU3500 via an external power supply and Power over Ethernet (PoE) at the same time is not recommended and can cause interferences during operation. FEIG ELECTRONIC GmbH Page 11 of 32 M21016-1e-ID-B.docx... -
Page 12: Power Supply Via Power Over Ethernet (Poe)
An operation of an ID ISC.LRU3500 via an external power supply and Power over Ethernet (PoE) at the same time is not recommended and can cause interferences during operation. If Power over Ethernet is used WLAN is not available. FEIG ELECTRONIC GmbH Page 12 of 32 M21016-1e-ID-B.docx... -
Page 13: Interfaces
12 Mbit (USB full speed). A standard USB-cable can be used. Figure 6: USB-Interface for host communication NOTE: The length of the USB-cable can have a max. of 5m (20 inch). It is not allowed to use longer cables. FEIG ELECTRONIC GmbH Page 13 of 32 M21016-1e-ID-B.docx... -
Page 14: Usb Interface On Connector X4 (Wlan)
WG111 v3 4.3.4. RS232 Interface on connector X6 The RS232 interface is connected on X6. The transmission parameters can be configured by means of software protocol. Figure 8: RS232 interface pin-outs on X6 FEIG ELECTRONIC GmbH Page 14 of 32 M21016-1e-ID-B.docx... -
Page 15: Rs485 Interface On Connector X6
Figure 10: RS485 interface pin-outs on X6 (RS485-Interface): Table 10: RS485 interface pin-outs Abbreviation Description RS485 – GND RS485 – (A -) RS485 – (B +) FEIG ELECTRONIC GmbH Page 15 of 32 M21016-1e-ID-B.docx... -
Page 16: Address Assignment Of Rs485 For Bus Operation
X5. The wire for the clock needs to be connected to connector OUT1-C, the wire for the data needs to be connected to connector OUT2-C. Figure 11: Data-Clock Interface on connector X5 FEIG ELECTRONIC GmbH Page 16 of 32 M21016-1e-ID-B.docx... - Page 17 The necessity of the external pull down resistor is depending on the inner circuit of the used Wiegand Controller FEIG ELECTRONIC GmbH Page 17 of 32 M21016-1e-ID-B.docx...
-
Page 18: Digital Inputs On Connector X5
For supply voltages of greater than 10V the input current must be limited to max. 20 mA by means of an additional series resistor (see Table 11). Table 11 shows the necessary external resistors for various external voltages U FEIG ELECTRONIC GmbH Page 18 of 32 M21016-1e-ID-B.docx... -
Page 19: Outputs On Connector X5
Reader electronics and are carried to the outside without any internal ancillary circuitry on Terminal X5. The output must therefore be powered by an external power supply. Figure 15: Optocoupler -Outputs OUT1-2 FEIG ELECTRONIC GmbH Page 19 of 32 M21016-1e-ID-B.docx... -
Page 20: Relay Outputs On Connector X5
Polarity reversal or overload on the output will destroy it. The output is intended for switching resistive loads only. 4.5.2. Relay outputs on connector X5 There are 3 relay outputs available on connector X5. Figure 17: Relay output pin-outs REL1-3 FEIG ELECTRONIC GmbH Page 20 of 32 M21016-1e-ID-B.docx... - Page 21 The relay output is intended for switching resistive loads only. If an inductive load is con- nected, the relay contacts must be protected by means of an external protection circuit. Figure 18: Internal and possible external wiring of the relay output FEIG ELECTRONIC GmbH Page 21 of 32 M21016-1e-ID-B.docx...
-
Page 22: Operating And Display Elements
(Please do not switch off the reader or disconnect the interface cable) (light in sequence) FLASH FLASH FLASH Firmware flash into EEPROM. (Please do not switch off the reader or disconnect the interface cable) synchronous FEIG ELECTRONIC GmbH Page 22 of 32 M21016-1e-ID-B.docx... -
Page 23: Reset Push Buttons
For performing a reset you should use a paper clip and push the button T1 for at least 5 s until the 3 status LED’s (left side) are switched on continuously, see 5.1. Status LEDs. Figure 19: Position of the reset-switches T1 and T2 FEIG ELECTRONIC GmbH Page 23 of 32 M21016-1e-ID-B.docx... -
Page 24: Reader Power Adjustment
** Correction Factor to convert the radiated power from e.r.p to e.i.r.p. For the calculation of the reader output power P an Excel file „Calc-RF-Power.xls“ can be used. Available from Feig Electronic GmbH. Example: ** linear antenna = „0“, circular antenna = „1“... -
Page 25: Fcc-Reader According To Fcc 47 Part 15
According to Example 2 it will only be necessary to adapt the output power of the reader when the antenna ANT.U600/270 is used if the length of the antenna cable is less then 6m. FEIG ELECTRONIC GmbH Page 25 of 32... -
Page 26: Technical Data
• 2 x Optocoupler 24 V DC / 30 mA (galvanically isolated) • 3 x Relay (1 x normal open) 24 V DC / 1 A (switching current), (2A con- stant load) FEIG ELECTRONIC GmbH Page 26 of 32 M21016-1e-ID-B.docx... - Page 27 * Caution: Overheating of the device may result in performance losses. It is recommended to activate the RF of the reader only if there is a transponder in the detection range of an antenna. FEIG ELECTRONIC GmbH Page 27 of 32...
- Page 28 Radio Regulation • Europe EN 302 208 • USA FCC 47 CFR Part 15 • Canada IC RSS-Gen, RSS-210 EN 301 489 Safety • Low Voltage EN 60950 • Human Exposure EN 50364 FEIG ELECTRONIC GmbH Page 28 of 32 M21016-1e-ID-B.docx...
-
Page 29: Radio Approvals
When properly used this radio equipment conforms to the essential requirements of Article 3 and the other relevant provisions of the R&TTE Directive 1999/5/EC of March 99. Performance Classification according to ETSI EN 301 489: Class 2 FEIG ELECTRONIC GmbH Page 29 of 32 M21016-1e-ID-B.docx... -
Page 30: Declaration Of Conformity (Directive 1999/5/Ec - R&Tte)
® OBID i-scan Installation ID ISC.LRU3000/3500 7.2. Declaration of Conformity (Directive 1999/5/EC - R&TTE) Figure 21: Declaration of Conformity FEIG ELECTRONIC GmbH Page 30 of 32 M21016-1e-ID-B.docx... -
Page 31: Usa (Fcc) And Canada (Ic)
Warning: Changes or modification made to this equipment not expressly approved by FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment. FEIG ELECTRONIC GmbH Page 31 of 32... -
Page 32: Label Information
Following antennas are approved by FCC according FCC Part 15 and IC Canada according RS210 • ID ISC.ANT.U170/170-FCC (4.0 dBic) • ID ISC.ANT.U250/250-FCC (9.0 dBic) • ID ISC.ANT.U270/270-FCC (9.0 dBic) • ID ISC.ANT.U600/270-FCC (10,5 dBic) FEIG ELECTRONIC GmbH Page 32 of 32 M21016-1e-ID-B.docx...
